Drawings detailing technical guidance for embellishment design
Note:
All embellishments in this category, must be bolt down with SS316 hex-head Dynabolts (size to suit). Anti vandal ‘Armour rings’ must be installed over the Dynabolt head.
If the above method is not suitable for application, fill recess above Dynabolt with Sikaflex (colour to match frame).
Acorn nuts, spike anchors, drive pins or shear nuts are NOT to be used.
Secondary security is required for all battens attached to the frame, for vandal resistance. e.g. SS316 rivets, filling bolt recesses with Sikaflex.
Refer manufacturer installation guide for current fixing recommendations, any discrepancies refer superintendent.

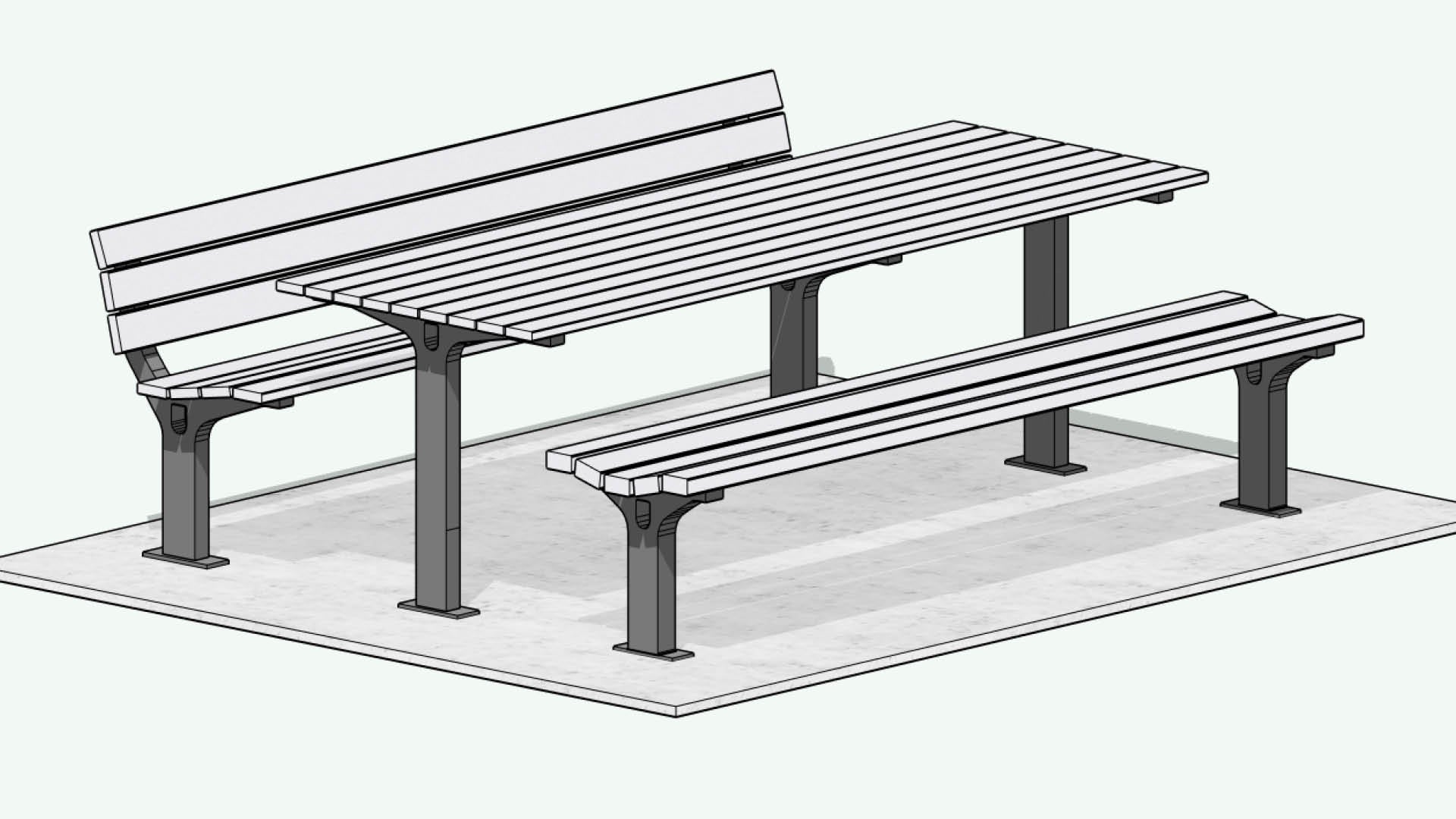

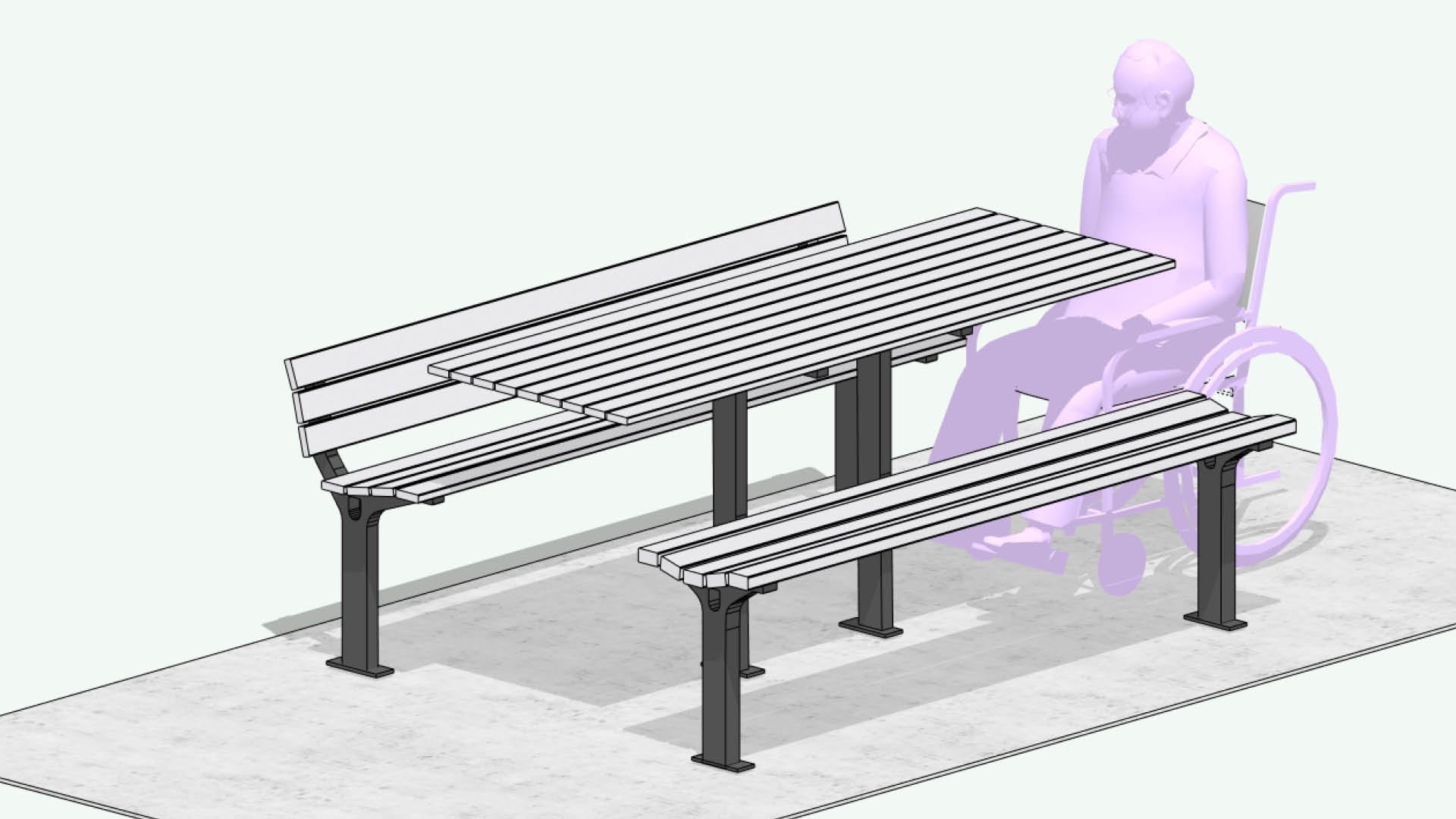

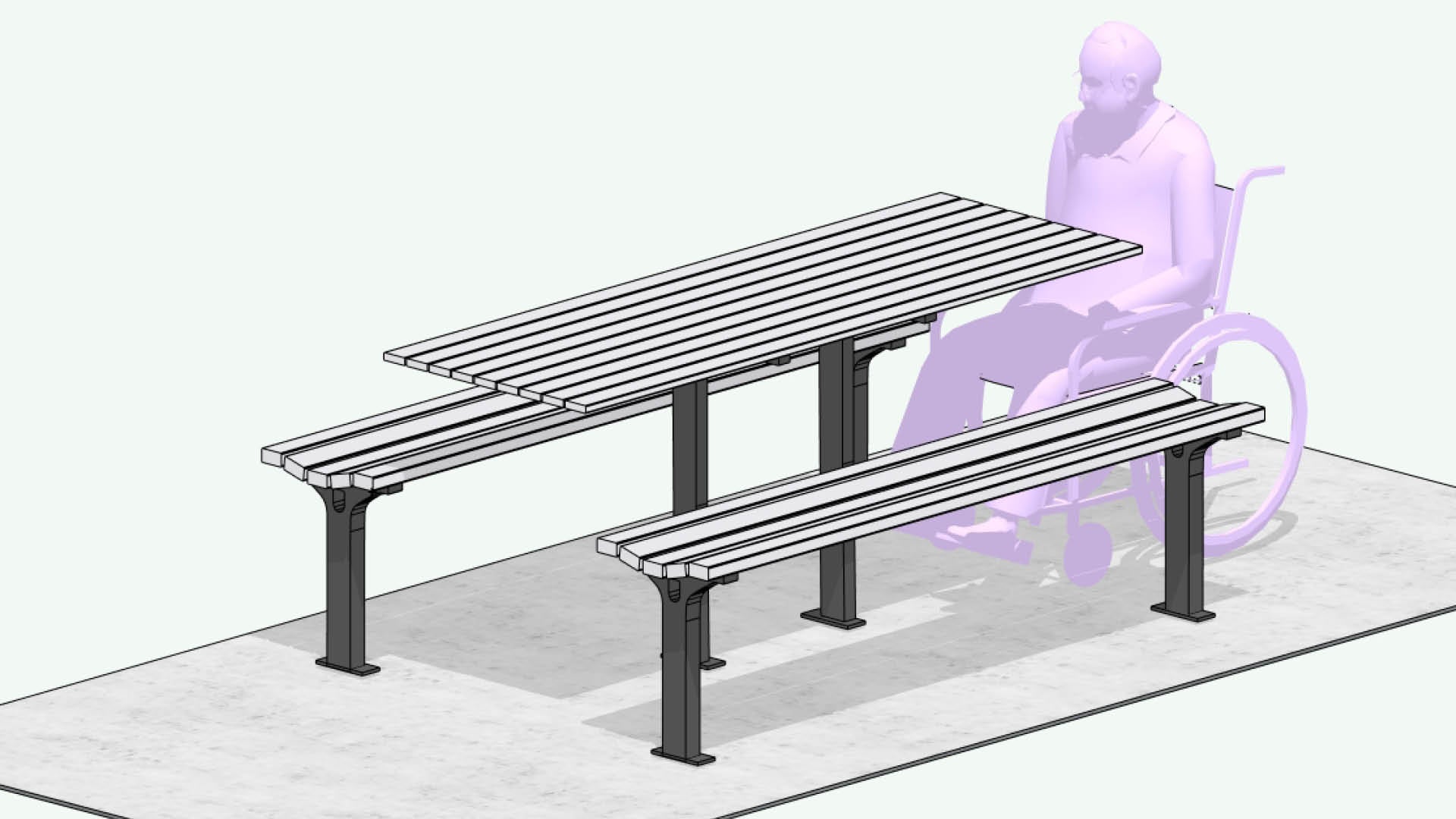

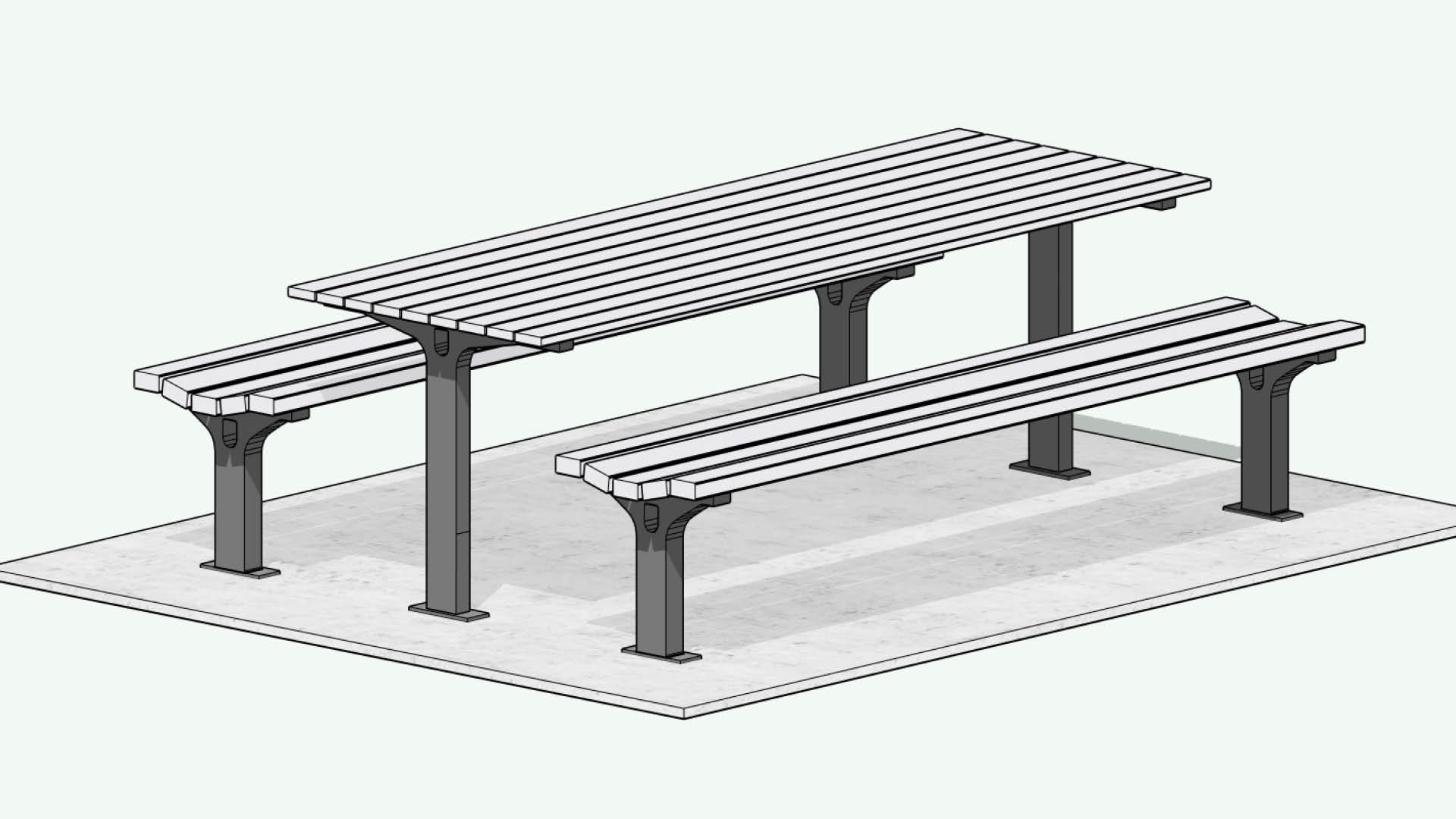

Table 1: Picnic tables and benches - Technical drawing index
Timber and aluminium combination - painted (timber)
Timber and aluminium combination - oiled (timber).
Legs must be straight with no flanging at the base.
Consider colour/material when placed in sun.
Luminance contrast: Note product images depict samples of products only. Luminance contrast requirements refer to the product and the background against which it is installed.
