Timber is not preferred but may be appropriate for walls in remote locations where carting of heavy materials is challenging.
Planter box rock retaining wall should only be used where it is not feasible to install a garden and there is no alternative. They harbour pests, attract rubbish and require frequent watering.
Planter boxes are not recommended for tree planting as they can constrain root systems and render the tree unstable.
Installation of walls under the drip line of mature trees is not recommended. If there is no option, construction is to be carried out under the supervision of a qualified arborist.
Skate deterrent devices are to be installed on top of walls where there is a risk of damage from skate board use.

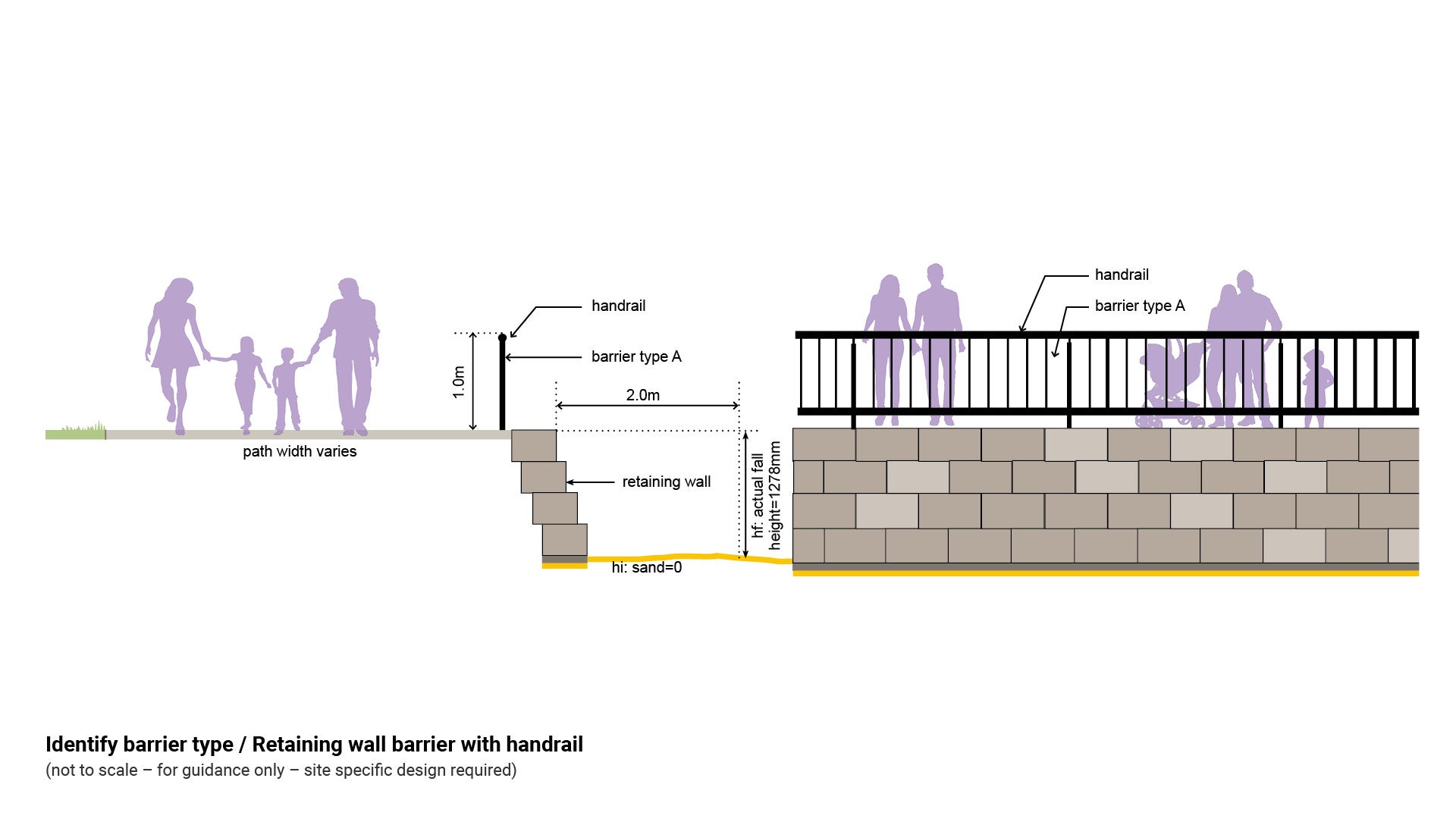

Figure 6: Identify barrier type/retaining wall barrier with handrail
Note: The risk assessment for each site is as per the WH&S Risk Calculator (AS/NZS ISO31000)
Method to identify barrier requirements adjacent to a retaining wall
Identify track classification AS 2156.1 - (class 1 illustrated)
Assess impact surface type (sand) AS 2156.2 table 3 - hi=0 (favourable fall surface illustrated)
Calculate actual fall height - heff=(hf+hi) 1278 mm=(1278 mm+0)
Identify allowable barrier type for effective fall height AS 2156.2 table 2 (type A illustrated)
* AS 1428.1 - 30% luminance contrast is required between barrier and the background it is viewed against
*Accredited access consultant advice.
