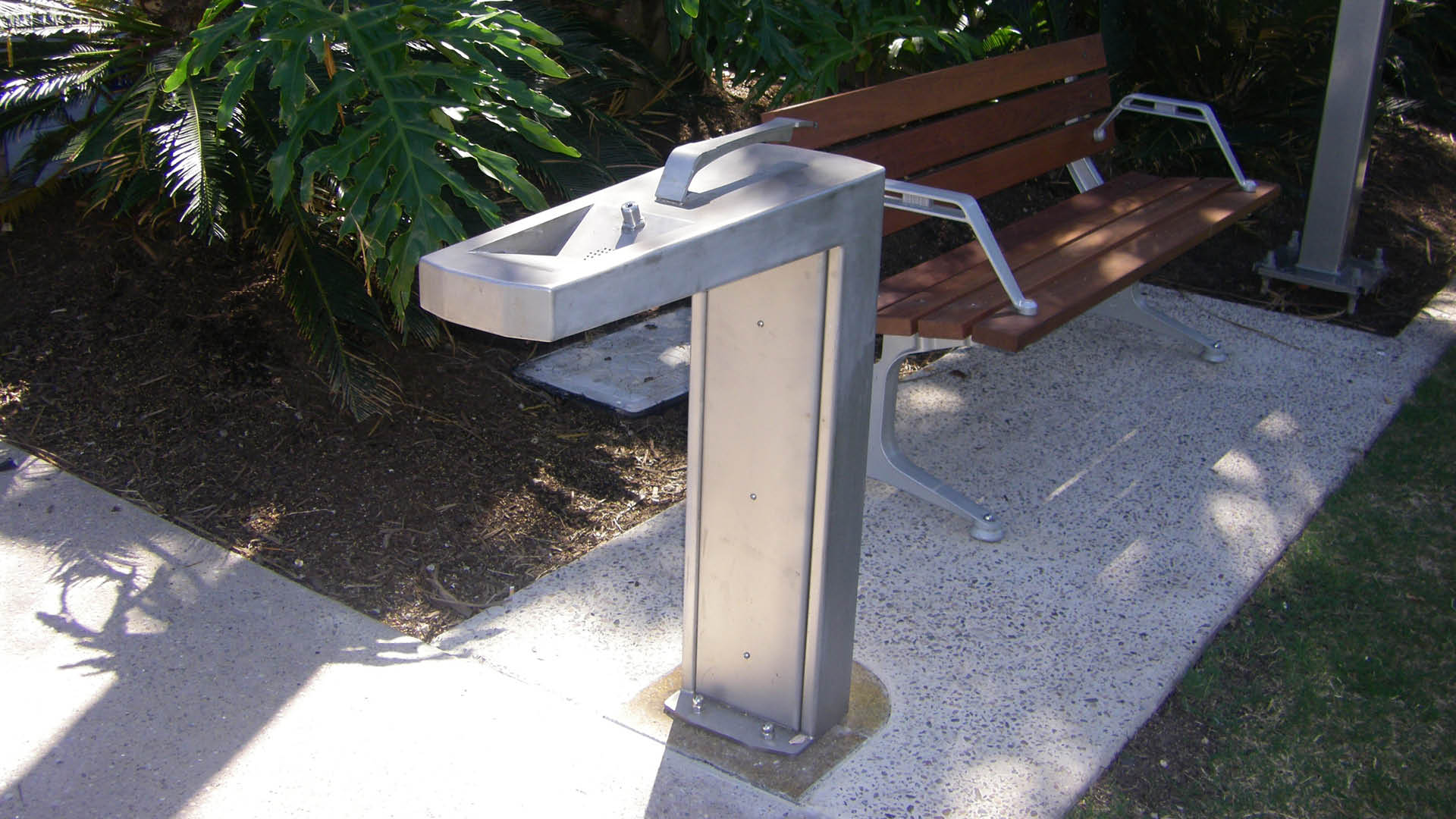

Drawings detailing technical guidance for embellishment design
Note:
Drinking fountains must be bolt down with SS316 hex-head Dynabolts (size to suit). SS316 anti vandal ‘Armour rings’ must be installed over the Dynabolt head.
Acorn nuts, spike anchors, drive pins or shear nuts are NOT to be used.
Refer manufacturer installation guide for current fixing recommendations, any discrepancies refer superintendent.
Table 1: Drinking fountains - Technical drawing index
Optional dog bowl (council preference is for dog bowls to be installed on tap posts)
Supplier must demonstrate that the product has WaterMark certification
Filters must NOT be installed.
Luminance contrast: Note product images depict samples of products only. Luminance contrast requirements refer to the product and the background against which it is installed.
