Embellishments should be designed/selected and installed as follows:
Fit for purpose, appropriately positioned and accessible.
Durable, robust and safe (suitable for corrosive environments).
Vandal resistant with parts that are easily replaceable.
Easy to maintain (with appropriate warranty and workmanship).
Comply with relevant standards, legislation, corporate documents and approvals
Planning, design and positioning
Locate in parks/open spaces/natural areas where rest and relaxation may be desirable. Face the seat towards views where possible
Should be on a concrete slab and linked to a pathway (where possible)
Comply with Austroads 500 mm minimum offset to any obstacle beside a path
Where feasible, a range of seat heights should be provided
Locate seats under shade where possible
Include a space (on one side of seat) for a wheelchair/pram
Do not install seats where they may be used for climbing over a fence/wall (such as at fenced play spaces or dog off leash parks). Provide 2.0 m clearance
Install seats at 60 m intervals along a linear path (recommended).

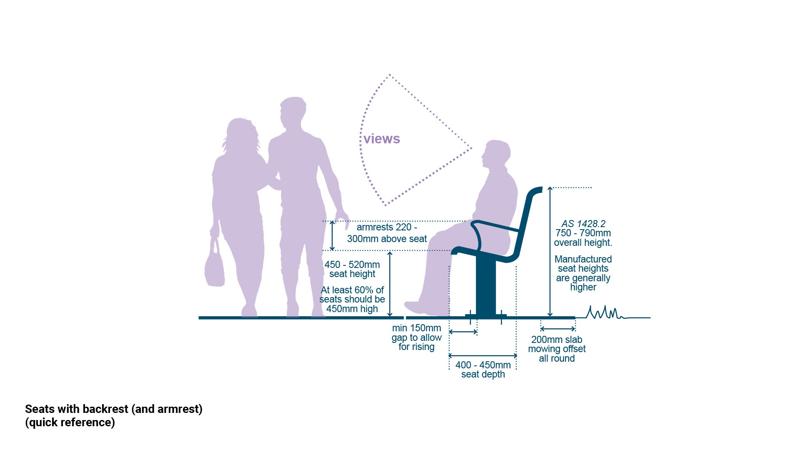

Seat requirements
Design must include universal access fittings i.e. back and armrests (exclude armrests for table and bench combinations)
Splayed foot designs are NOT preferred (trip hazard)
Seat designs with wide slats are preferred. Install anti-skate devices where required. Design must not hold water
Include maintenance access under seats (for cleaning).
Materials, finishes and footings
Materials preferred – aluminium or timber. Select light coloured aluminium to reduce the potential for the seat to become hot in full sun. Minimum 3 coats of timber sealant. Material selection should be determined by site profile/level of use.
Excavation for footings under trees should be made by hand or vacuum excavation
All seats must be bolt down and use anti-vandal ‘armour rings’ or equivalent
Avoid finished height difference between a seat concrete slab and adjoining surfaces to prevent trip hazards and to prevent ‘tramlining’ of wheelchair wheels. Batter down gently from the slab to existing ground level.
Note: Further guidance and clarification of the content on this page, can be found in the relevant sections of this information sheet.

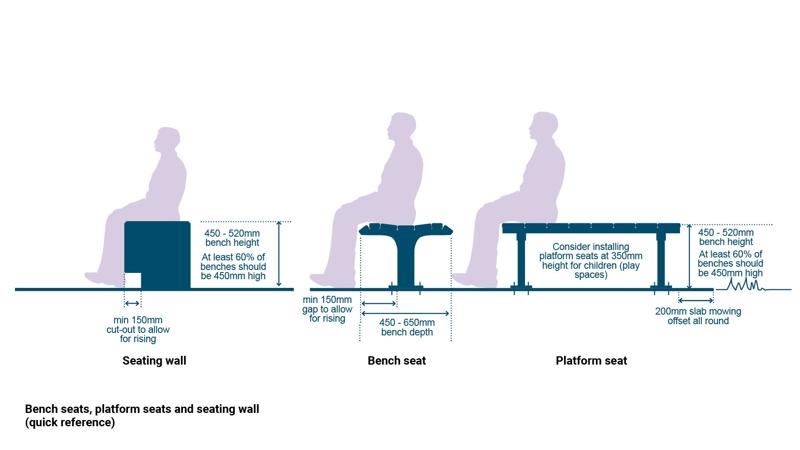

Bench seats, platform seats and seating wall
Overarching requirements
Embellishments should be designed/selected and installed as follows:
Fit for purpose, appropriately positioned and accessible.
Durable, robust and safe (suitable for corrosive environments).
Vandal resistant with parts that are easily replaceable.
Easy to maintain (with appropriate warranty and workmanship).
Comply with relevant standards, legislation, corporate documents and approvals
Planning, design and positioning
Locate in parks/open spaces/natural areas where rest and relaxation may be desirable. Face the seat towards views where possible
Should be on a concrete slab and linked to a pathway (where possible)
Comply with Austroads 500 mm minimum offset to any obstacle beside a path. Extra space is required for leg room.
Where feasible, a range of seat heights should be provided
Locate seats under shade where possible
Include a space (on one side of seat) for a wheelchair/pram
Do not install seats where they may be used for climbing over a fence/wall (such as at fenced play spaces or dog off leash parks). Provide 2.0 m clearance
Seat requirements
Splayed foot designs are NOT preferred (trip hazard)
Seat designs with wide slats are preferred. Install anti-skate devices where required. Design must NOT hold water
Include maintenance access under seats (for cleaning).
Free-standing walls (used for seating) require a 150 mm extended top, or a 150 mm cut-out at foot level to assist with rising from a seated position.
Materials, finishes and footings
Materials preferred – aluminium or timber. Select light coloured aluminium to reduce the potential for the seat to become hot in full sun. Minimum 3 coats of timber sealant. Material selection should be determined by site profile/level of use.
Excavation for footings under trees should be made by hand or vacuum excavation
All seats must be bolt down and use anti-vandal ‘armour rings’ or equivalent
Avoid finished height difference between a seat concrete slab and adjoining surfaces to prevent trip hazards and to prevent ‘tramlining’ of wheelchair wheels. Batter down gently from the slab to existing ground level.
Sandstone (or other material) seating walls must have a 150 mm gap to allow for rising.
Note: Further guidance and clarification of the content on this page, can be found in the relevant sections of this information sheet.
