Requirements for the integration of equal access for all users
The Disability Discrimination Act (DDA) defines ‘premises’ as the whole of the built environment and includes existing buildings, new or proposed buildings, transport systems, car parks, pathways, and public parks and gardens.
Note: Consult an access consultant accredited by the Association of Consultants in Access Australia (ACAA).
Embellishments must be designed in accordance with AS 1428 Design for access and mobility.
Ensure that taps are connected to a ‘continuous accessible path of travel’ (CAPT) to enable equal access for people who use wheelchairs. Ensure that the path of travel is connected to an accessible car park space.
Provide equal access to taps at the recommended mounting and circulation heights to provide wheelchair access and reach heights.
Install equal access taps in consistent locations for ease of recognition by people with vision impairment.
Install taps at a minimum 500 mm offset from the edge of a pathway, to provide safe clearance for pedestrians and cyclists.
Avoid finished height difference between a concrete slab and adjoining surfaces to prevent trip hazards and to prevent ‘tramlining’ of pram, bicycle and wheelchair wheels.
Controls operable by one hand require force to be no more than 19.5 N.
Where public access taps are provided in a park, at least one tap should be provided in accordance with equal access standards – push button tap.
For people with a vision impairment, provide a minimum 30% luminance contrast between objects and the background they are viewed against, for ease of identification.
Where luminance contrast may not be achieved (such as grey aluminium furniture on grey concrete), luminance contrast can be addressed by introducing colour into the ground surface providing a minimum 30% luminance contrast with the embellishment base, resulting in the embellishment being more visible for people who have low vision.
Consider designing nodes with a contrasting coloured concrete, or a variation in surface texture, to enable people with a disability to identify the location of embellishments along a pathway.
See Figure 7: Tap location in garden bed (with splash pad option).

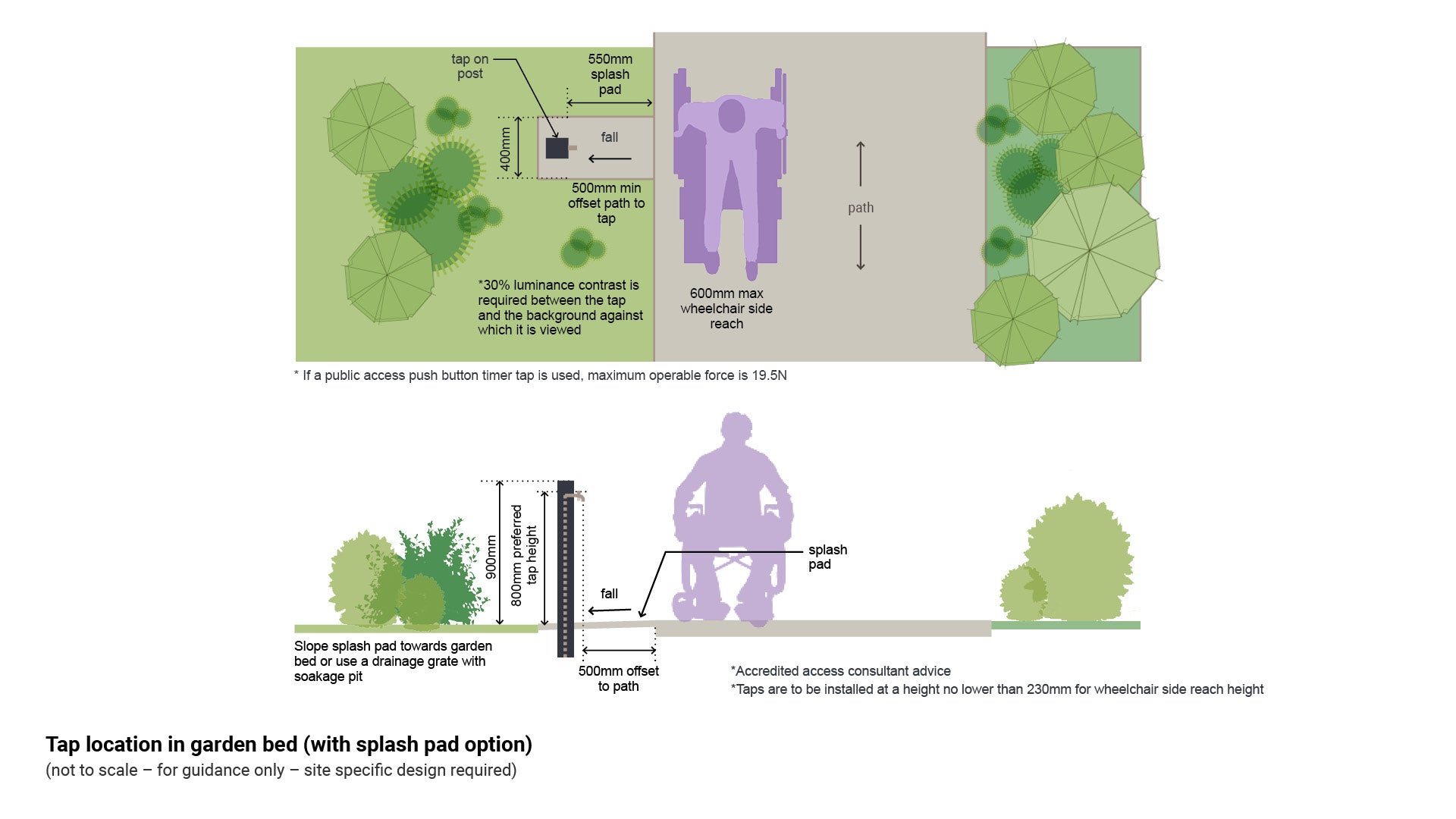

Figure 7: Tap location in garden bed (with splash pad option)
