Site set up (including tree protection)

Technical drawings
Drawings detailing technical guidance for embellishment design
Table 1: Site setup - Technical drawing index
Embellishment | Description/drawing code | Product details/supplier | Other |

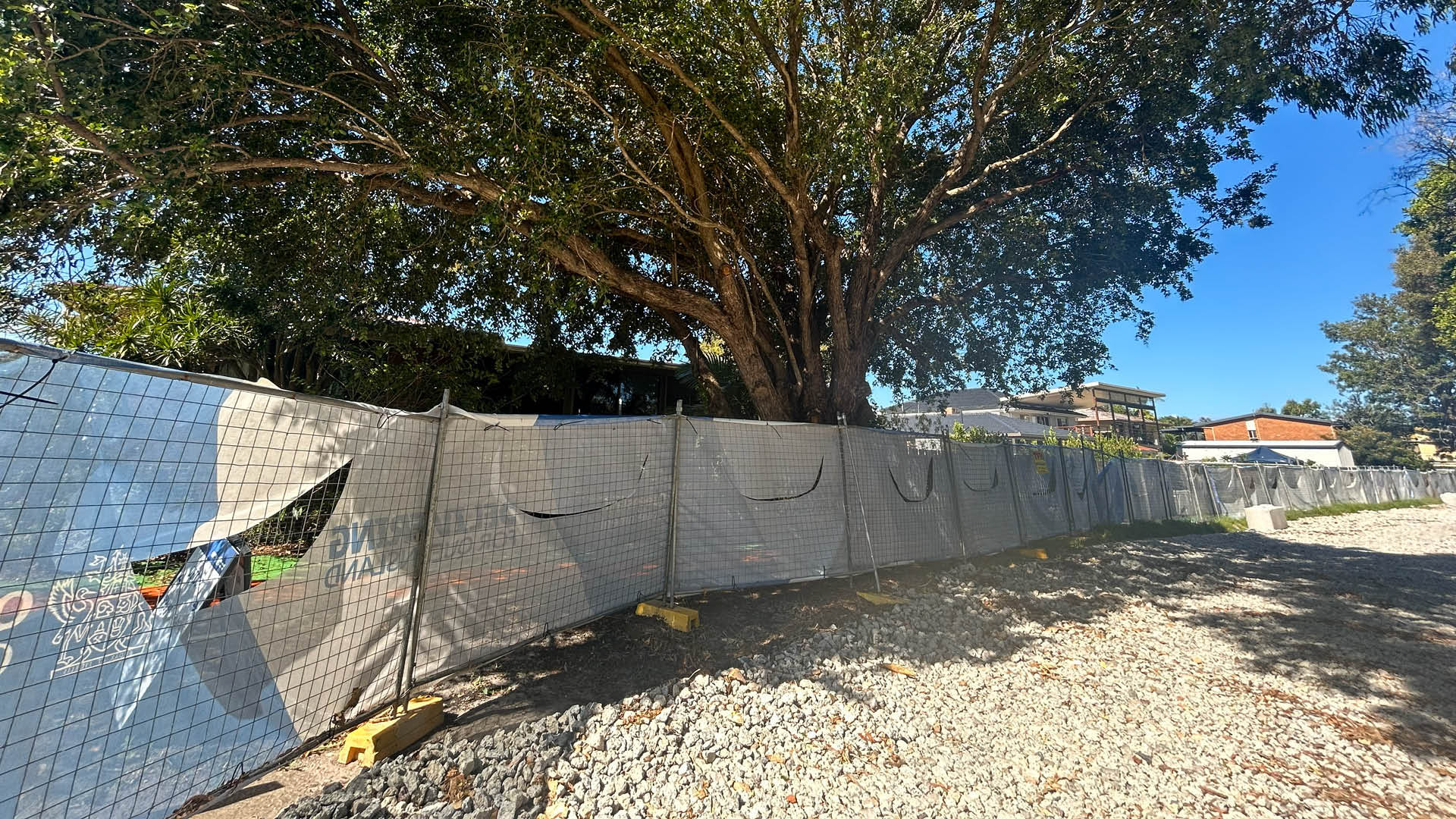

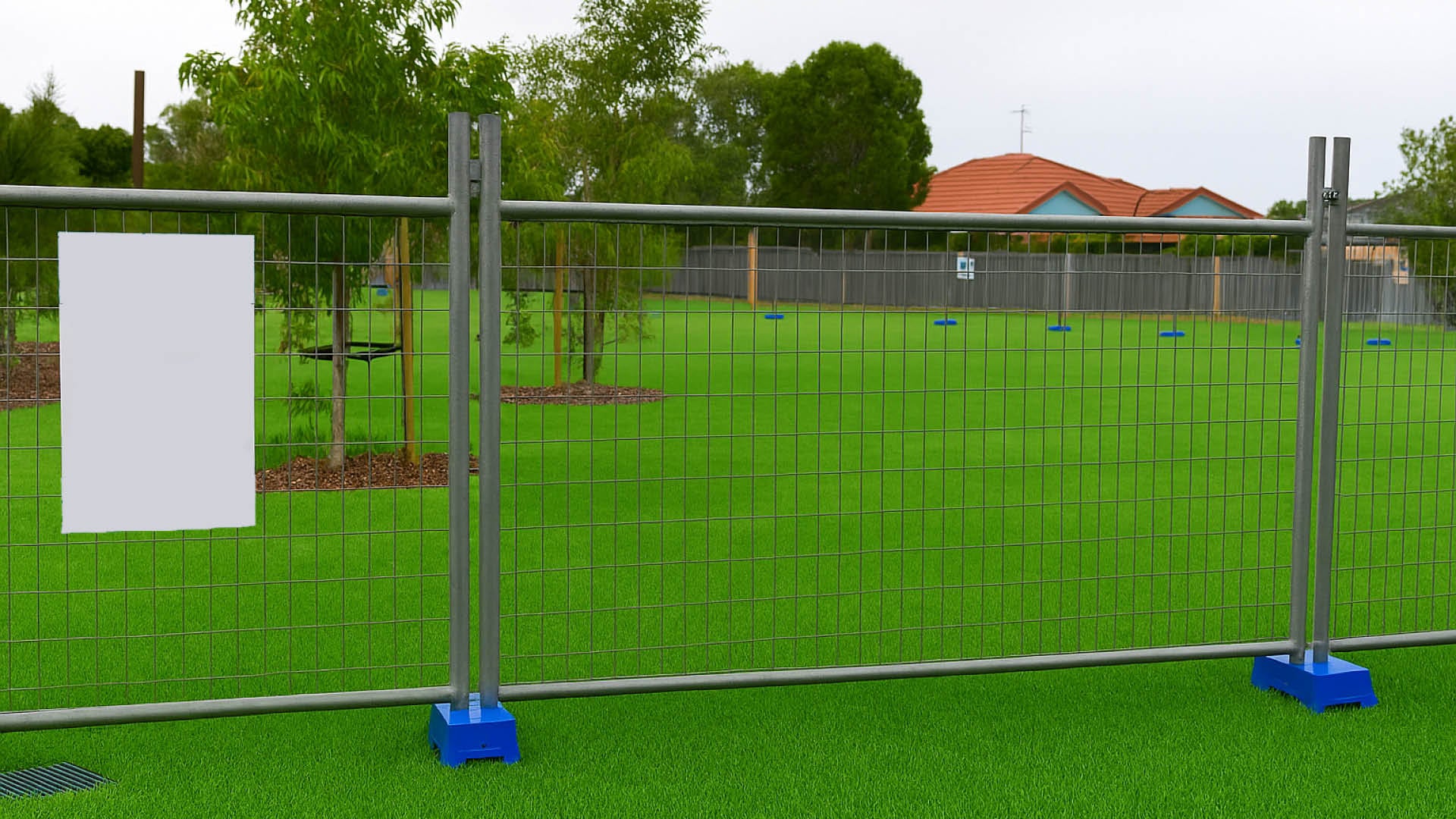

![]() | Tree protection zone (type 1) - AS 4970 method | Temporary fencing: Custom supplier Shade cloth - where required: Custom supplier |
|

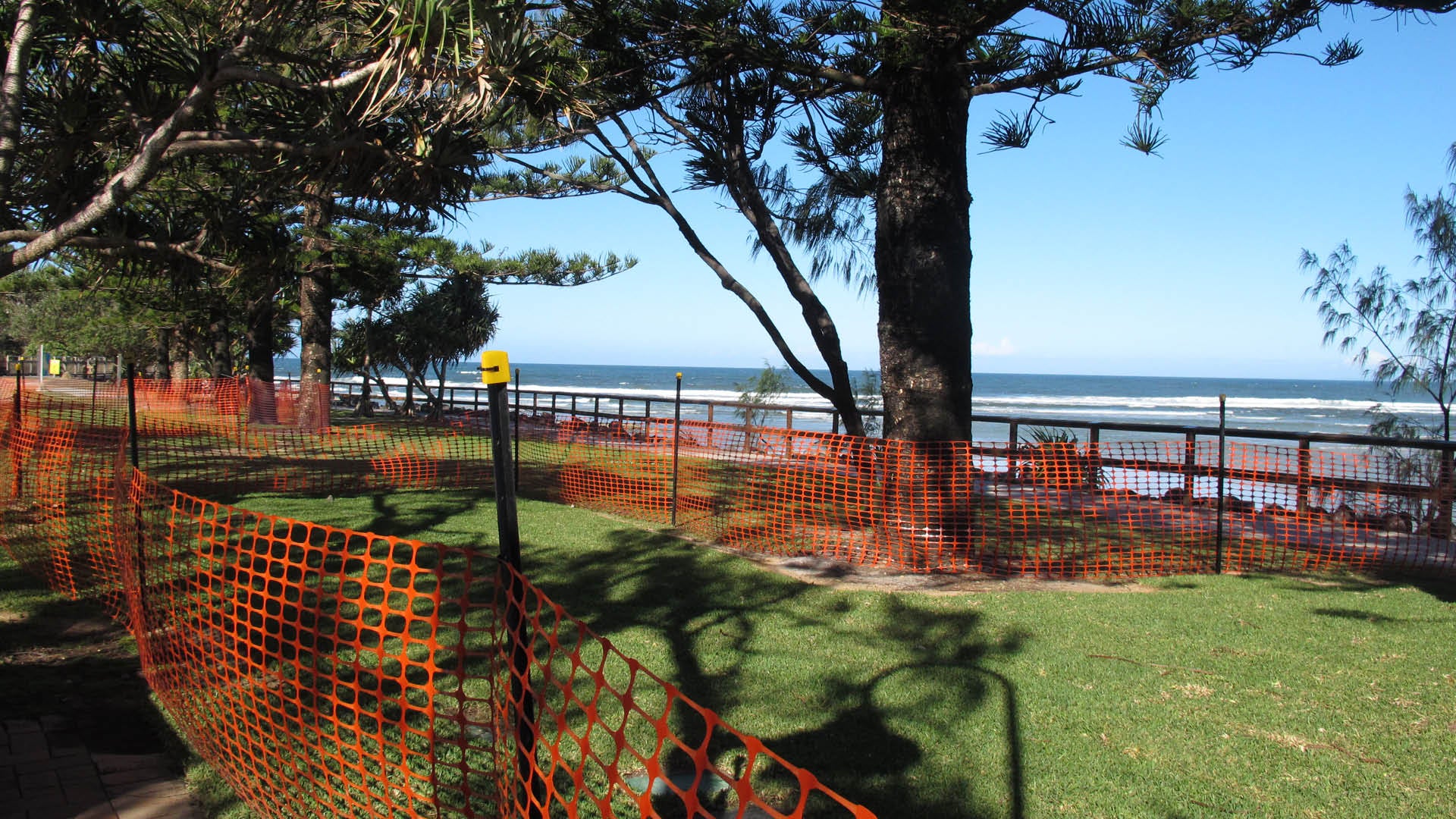

![]() | Tree protection zone (type 2) - drip-line method | Barrier mesh (preferred): Custom supplier Water barriers: Custom supplier Flagging tape: Custom supplier |
|

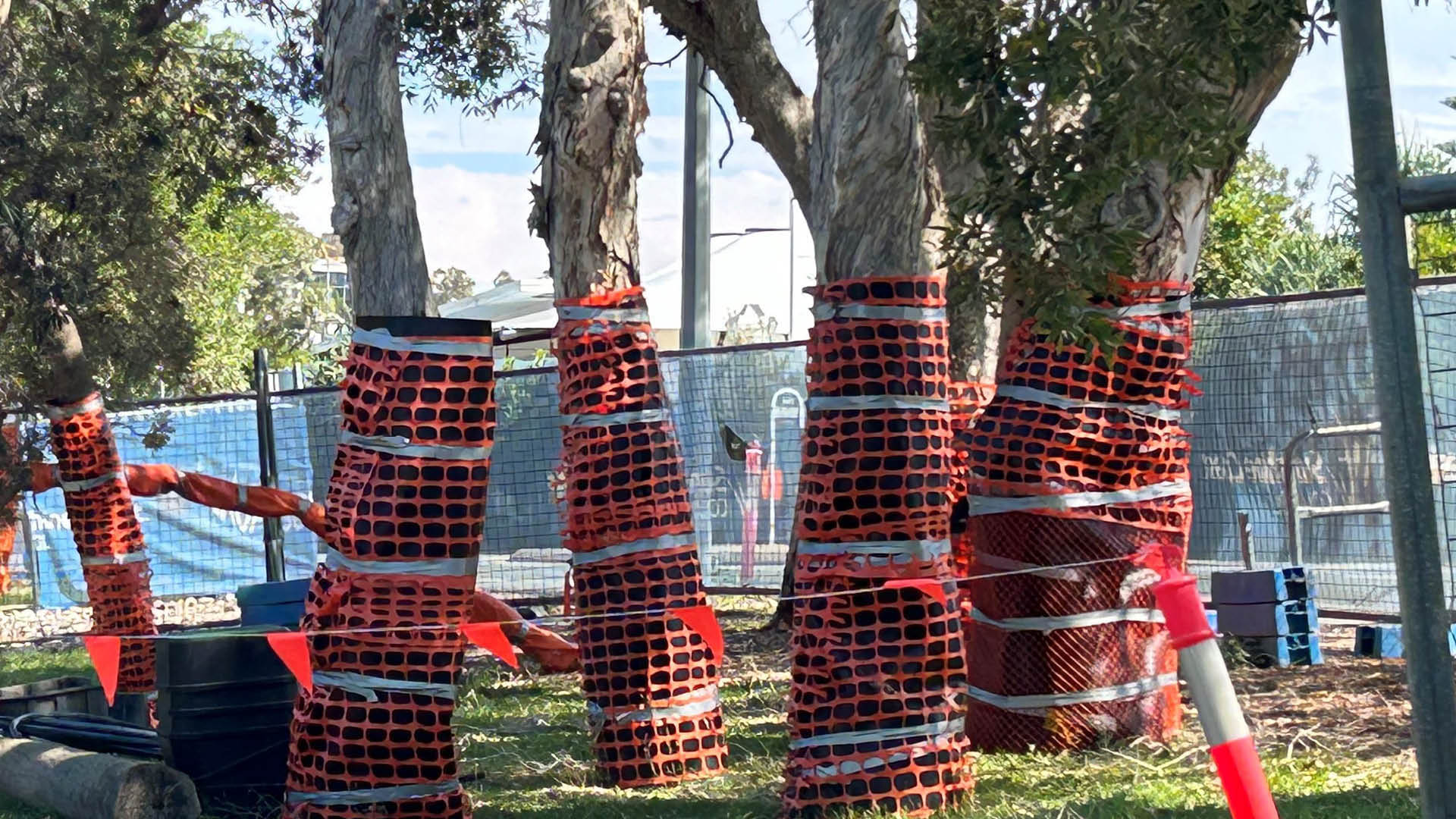

![]() ![]() | Trunk/branch and ground protection | Trunk/branch protection (hessian, carpet or felt with highly visible outer layer) as required: Custom supplier Ground protection (geotextile or permeable sheeting): Custom supplier Ground protection (aggregate or mulch): Custom supplier Ground protection (from machinery) timber (rumble) boards or steel plates as required: Custom supplier. |
|
![]() | Sediment control devices - sediment fence, entry/exit sediment trap
| Custom supplier |
|
