Install the bevelled edge of a bollard to face the road frontage.
Streetscape removable bollard collars, fixings and locks should protrude as little as possible (to avoid trip hazards) and should be placed out of the line of pedestrian travel.
Trail bollard direction markers (with arrows) are to be positioned at locations where a trail forks or the intended trail direction is not clear.
See the following figures for further guidance:
Figure 2: Elevation – trees and boulders used in place of some bollards
Figure 3: Elevation – bollards installed in/next to a pathway.
For further guidance for bollards in paths see:
Austroads - Guide to Road Design Part 6A: Paths for walking and cycling provides guidance on placement of bollards.
The risk evaluation process detailed in the Austroads Guide to Road Design Part 6 is the default requirement for use on roads. The Council may however choose to approve the use of an alternate process such as ‘generalised hazard assessment process’ if considered more appropriate in context. The design report should document this decision and the details of the alternate risk assessment evaluation process. Consult RPEQ.

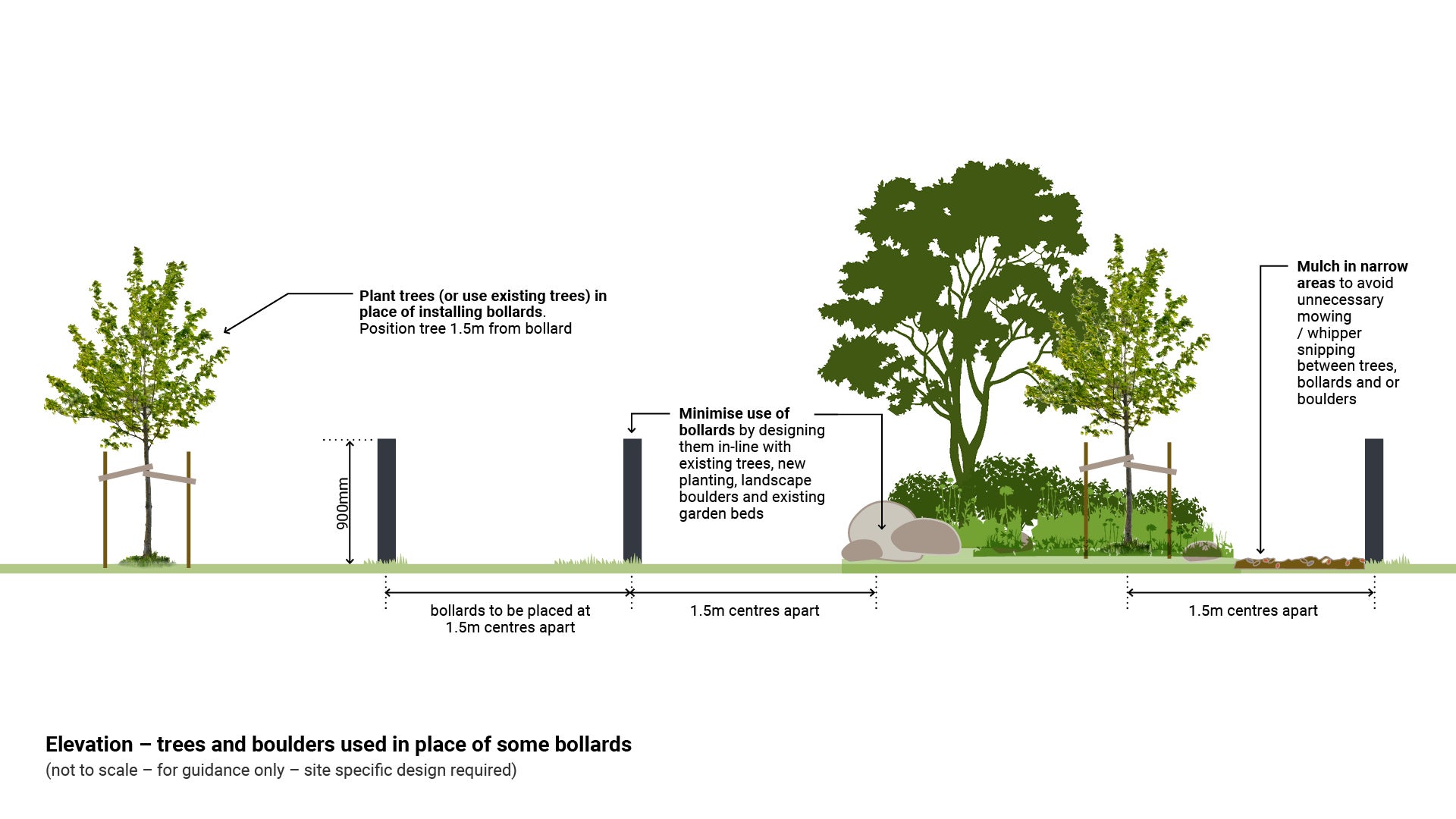

Figure 2: Elevation – trees and boulders used in place of some bollards

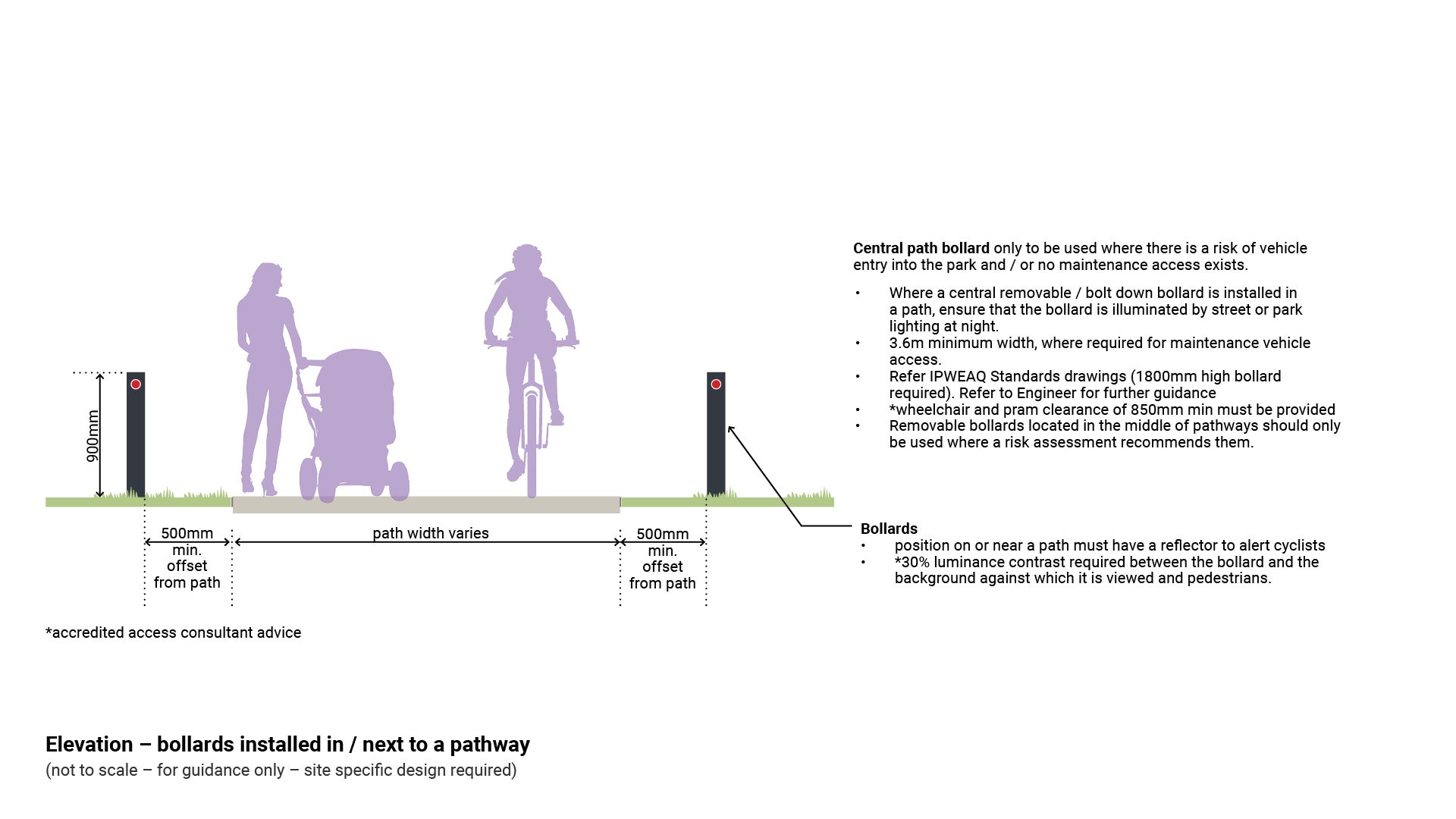

Figure 3: Elevation – bollards installed in/next to a pathway
Restricts vehicle access (current average medium car width is 1.8 m, current average small car width 1.6 m).
Bollard
Another bollard (with removable bollard in-between)
3.6 m
Maintenance vehicle access clearance requirement.
Bollard
Edge of path
500 mm
For pedestrian and cyclist safety, comply with Austroads 500 mm min offset from path edge to any obstacle.
Bollard
Clear area to any other embellishment
2.5 m
For deck mower clearance (where possible).
Avoid creating small difficult to mow areas.
Bollard
Edge of a trafficable road
Risk evaluation required
Austroads - Guide to Road Design part 6.
Central path bollard
Pathway edge
850 mm
Provides clearance for wheelchairs/prams/cyclists.
Trail directional bollard
Another trail directional bollard
Varies
To clearly mark a trail route/direction.
