Embellishments should be designed/selected and installed as follows:
Fit for purpose, appropriately positioned and accessible.
Durable, robust and safe (suitable for corrosive environments).
Vandal resistant with parts that are easily replaceable.
Easy to maintain (with appropriate warranty and workmanship).
Comply with relevant standards, legislation, corporate documents and approvals
Planning, design and positioning
installation of a single or multiple bicycle rails is preferred over bicycle racks
When located near a road or car park, min offsets must comply with AS 2890.3 Parking facilities - Bicycle parking
maintain Austroads offset of min 500 mm from path edge to any obstacle. Also consider the dimensions of a parked bicycle on a rail.
Maintain (where possible), 1.2 m clear passage for passing pedestrians
Rails must be placed min 1.0 m apart
Locate away from irrigation systems.

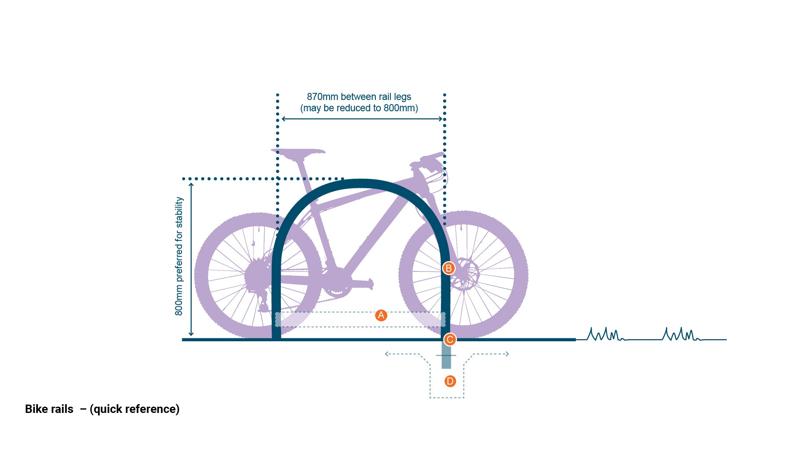

Bicycle rail requirements
(A) Provide equal access to bicycle rails. Where the rail may impact passing pedestrians with low vision, include an optional fixed horizontal tapping rail and signage panel
Each rail should provide secure parking for two bicycles
(B) Rail width between legs min 800 mm. Small hoops non-compliant. Height 800 mm preferred for stability
Rails – 316 stainless steel tube. Powder-coating, 2 pack epoxy or painted surfaces are NOT accepted.
Finished surface and fixing method
Finish to match adjoining surfaces
All fixings – must be 316 stainless steel
(C) Bolted to finished surface (preferred). Must use base plate, hex-head dynabolts, with anti-vandal armour rings over hex-head OR
(D) In-situ – rail in concrete footing. ‘Fixing footing pin’ recommended in footing.
Note: Further guidance and clarification of the content on this page, can be found in the relevant sections of this information sheet.
