Embellishments should be designed/selected and installed as follows:
Fit for purpose, appropriately positioned and accessible.
Durable, robust and safe (suitable for corrosive environments).
Vandal resistant with parts that are easily replaceable.
Easy to maintain (with appropriate warranty and workmanship).
Comply with relevant standards, legislation, corporate documents and approvals
Planning, design and positioning
Minimise the use of TGSI where possible

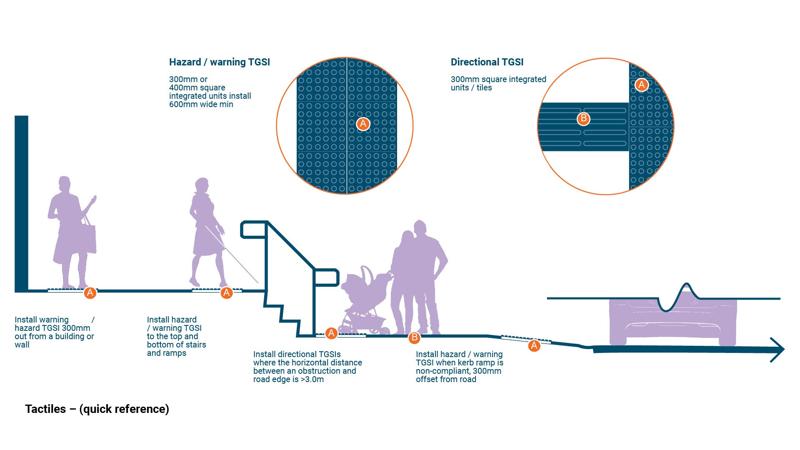

(A) Hazard/warning TGSI – position 300 mm from a potential hazard (such as a road), or at an information point
Install TGSI 600 mm wide min to prevent people with low vision stepping over them
(B) Directional TGSI – Only install in the absence of other tactile clues
Luminance contrast is required between TGSI and the background material against which they are viewed.
Tactile requirements
Ensure TGSI unit edges and individual discrete buttons do not lift
Ceramics (porcelain) integrated units set into concrete for high profile pedestrian locations
High specification pre-cast reinforced concrete units for locations with vehicular or pedestrian contact
Fibre reinforced polymer cast in place or surface mounted units for high use pedestrian and vehicle contact.
Finished surface and fixing method
Products may require sealing to prevent efflorescence (colour fade)
Must comply with slip resistance requirements
Glued and screwed – may be difficult to replace
Note: Further guidance and clarification of the content on this page, can be found in the relevant sections of this information sheet.
