Schedule of finishes

Information on accepted finishes and embellishments

Note: The specification of a proprietary item shall not necessarily indicate exclusive preference for that item. A similar alternative having the same properties as the item specified may be offered for approval. Provide all technical information as requested by the client. The client may approve the use of an alternative provided such use does not increase the cost of the works unless otherwise agreed.

No technical drawings are provided for this category.

Table 1: Fixtures, fittings and equipment schedule – Amenities with service corridor - Unisex cubicles

Embellishment	Product/Code	Supplier	Other
	Toilet pan Ambulant Code: WCA	Stoddart (or equivalent) Reference: SPPL-TP-WF-3-A-S-BSA S Trap Materials: Stainless steel Finish: Polished	Provide CMPL.0814 plastic seat. Fixture to comply with AS1 428.1 – 2009 Warranty: 12 months
	Toilet pan regular Code: WC	Stoddart (or equivalent) Reference: SPPL-TP-WF-3-S-S-BSA S Trap Materials: Stainless steel Finish: Polished	Provide CMPL.0814 plastic seat. Fixture to comply with AS1 428.1 – 2009 Warranty: 12 months

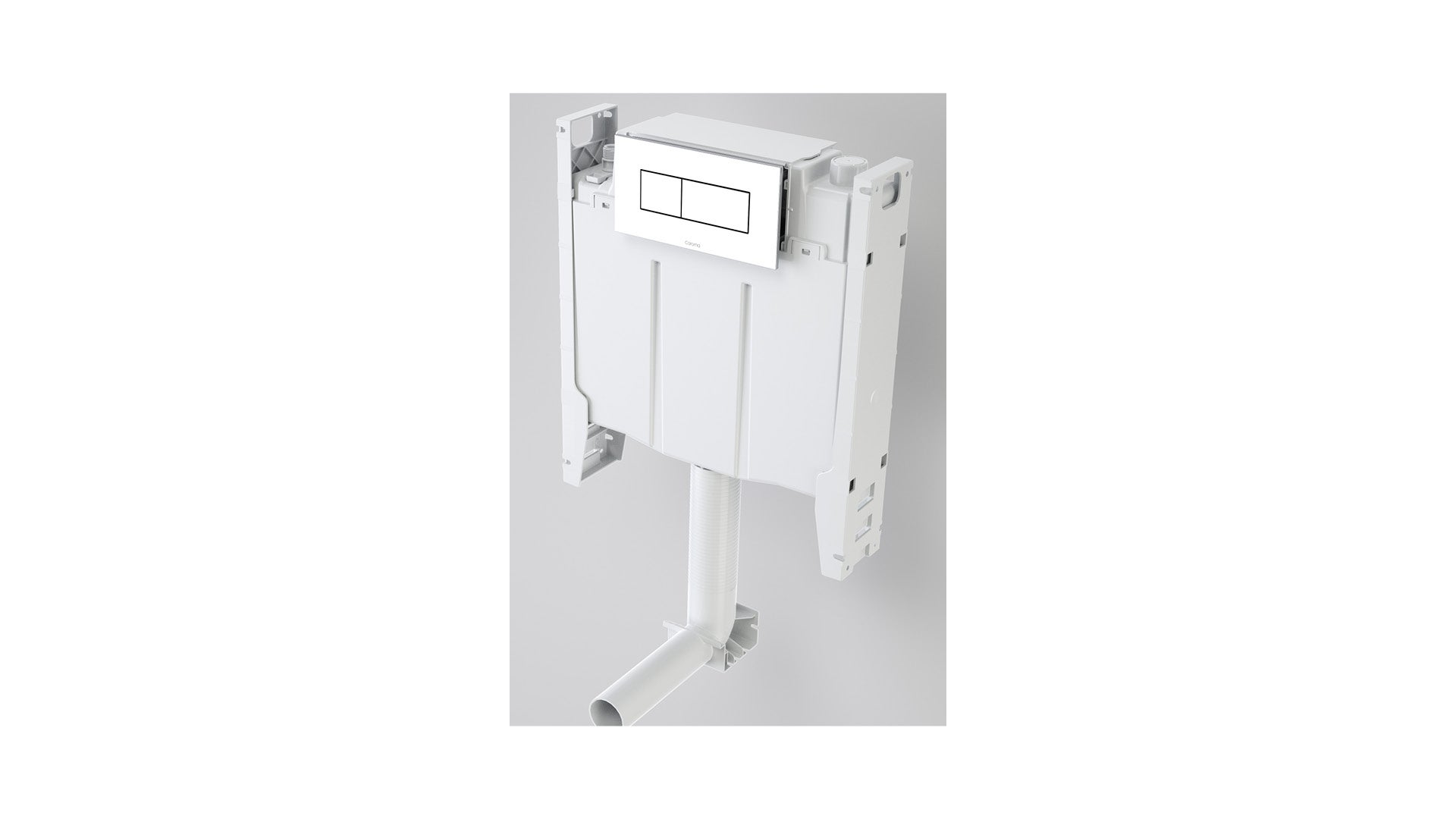

	Cistern Code: C	Caroma (or equivalent) Reference: Invisi Series II in-wall cistern with SS access cover panel. Code 237003 Materials: Plastic Finish: White plastic	Wels 4 Star rated - 4.5/3 litre average flush Warranty: 10 years

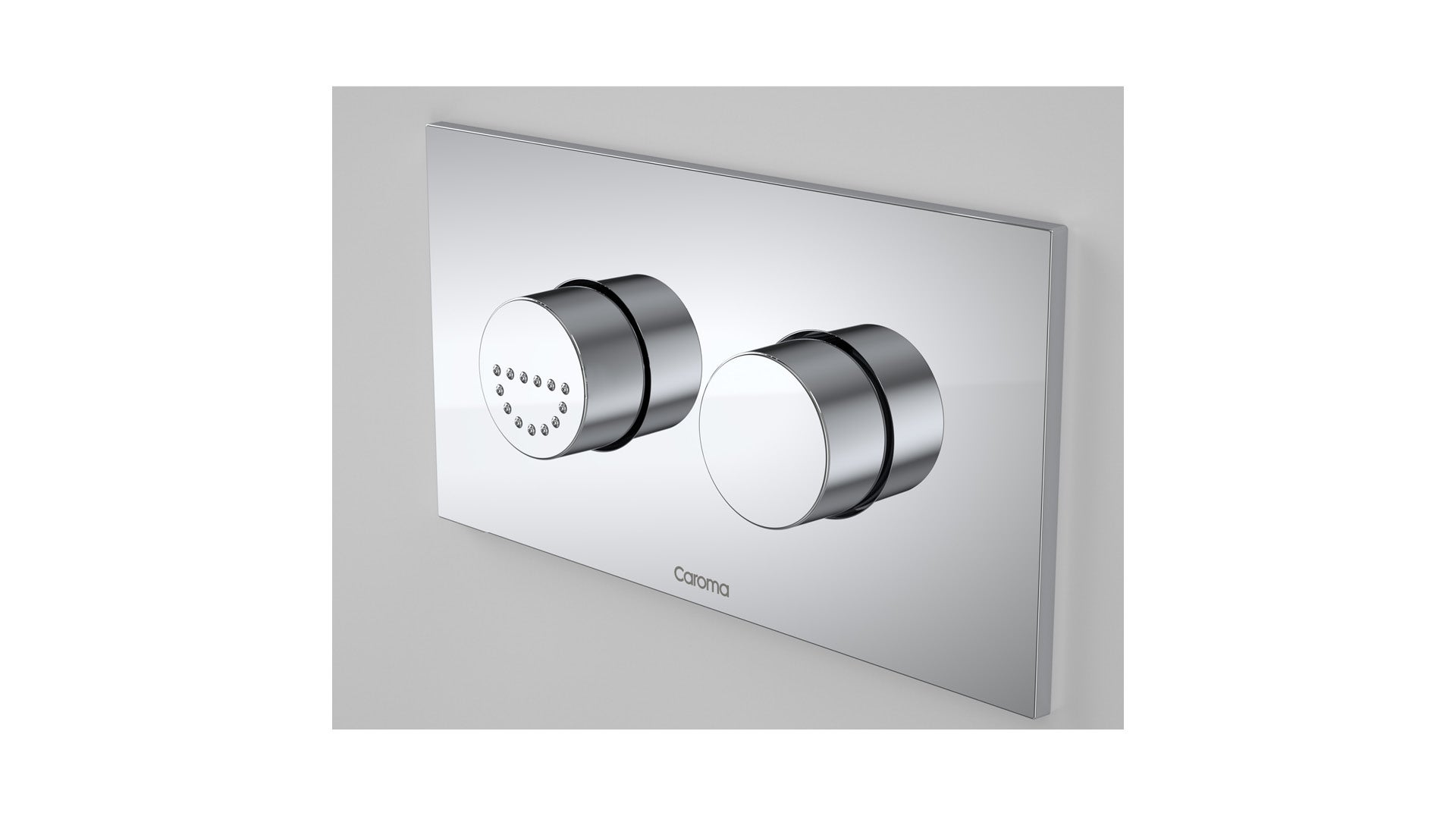

	Flush buttons Code: FB	Caroma (or equivalent) Reference: Invisi Series II Round Dual Flush Plate & Raised Care Buttons Code No. 237086C Materials: Chrome Finish: Polished	Fixture to comply with AS 1428.1 – 2009 Warranty: 10 years

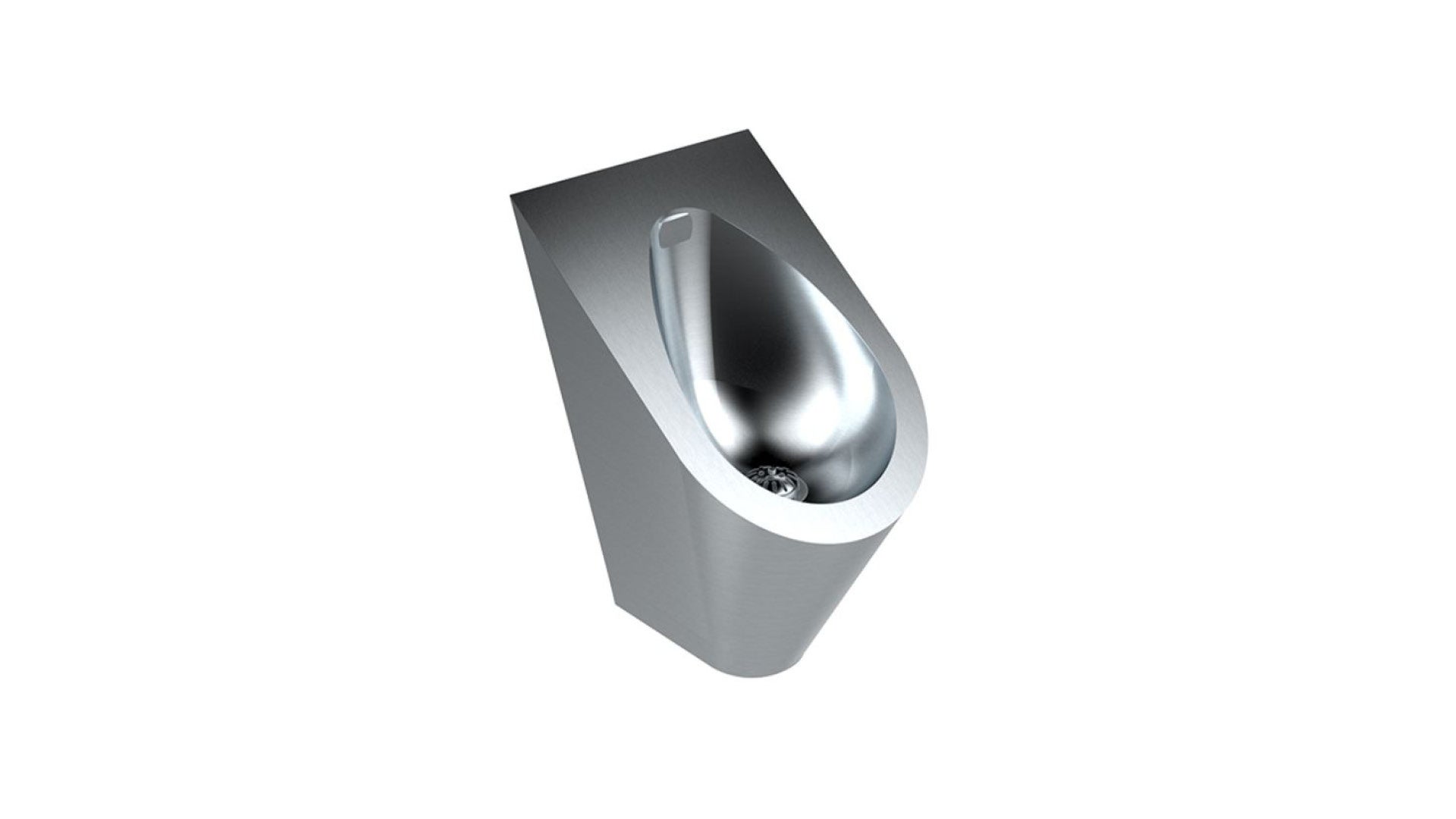

	Urinal Code: UR	Britex (or equivalent) Reference: Regal Urinal URAM auto flush Materials: Stainless steel Finish: Polished	Provide stainless steel access panels to valve and power supply units Warranty: 12 months

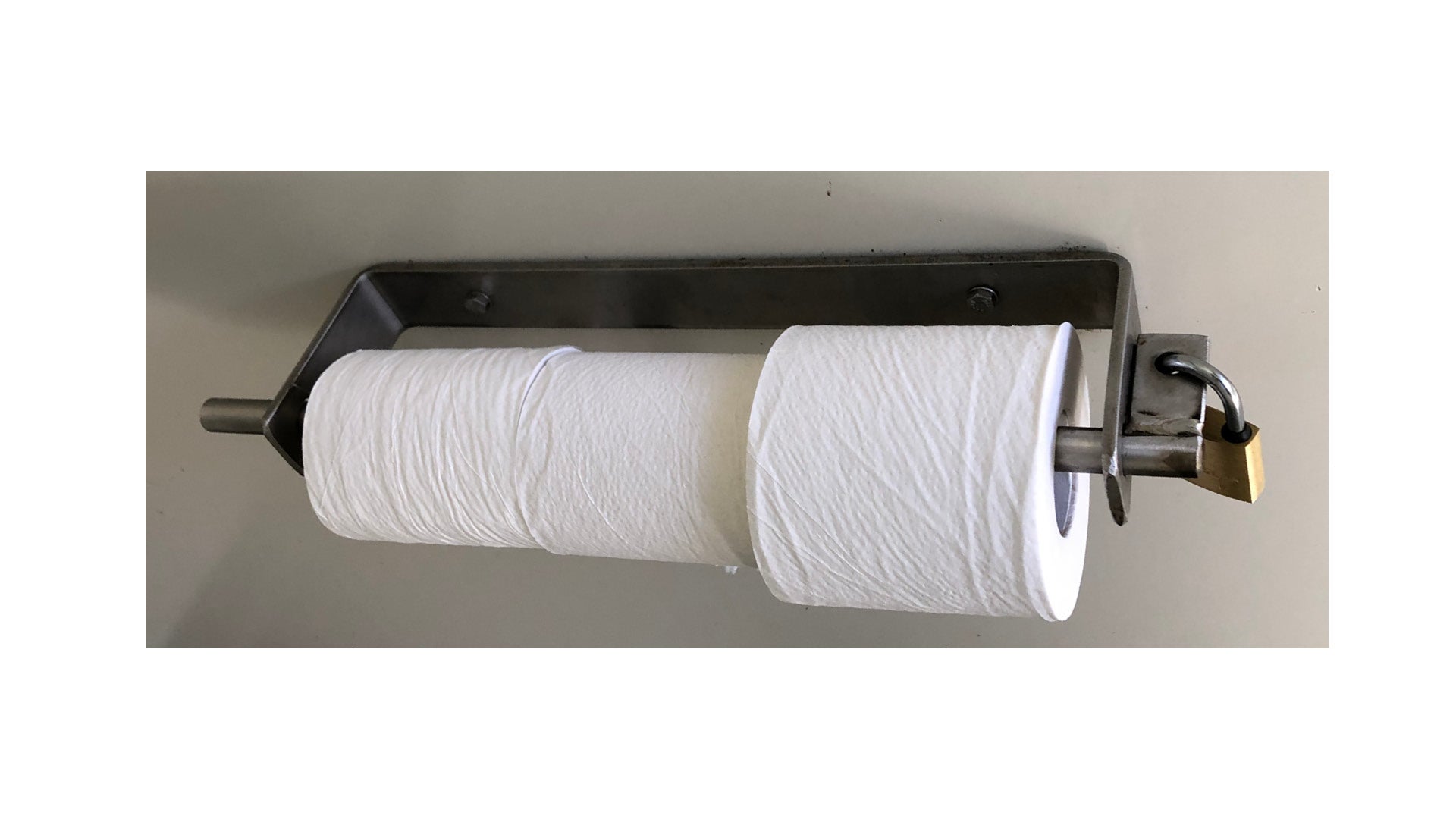

	Toilet roll holder Code: TRH	Sunshine Coast Council Reference: Double Materials: Stainless steel Finish: Polished

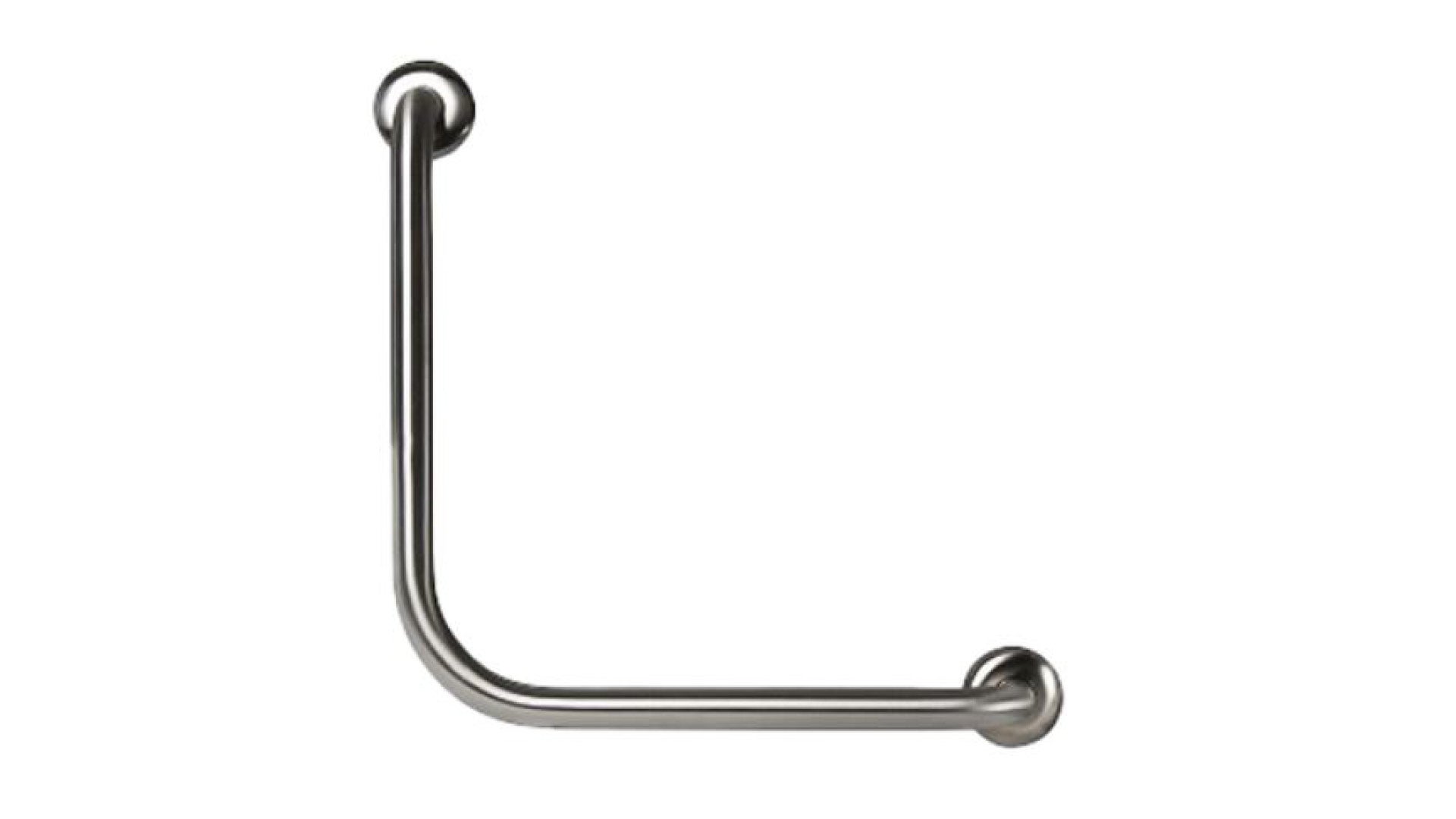

	Grab rails Ambulant Code: GR-A	Britex (or equivalent) Reference: 90o Ambulant Grab Rail BTR-01-058 Materials: Stainless steel Finish: Polished	Grab Rail Set - to AS 1428.1-2009 Warranty: 12 months

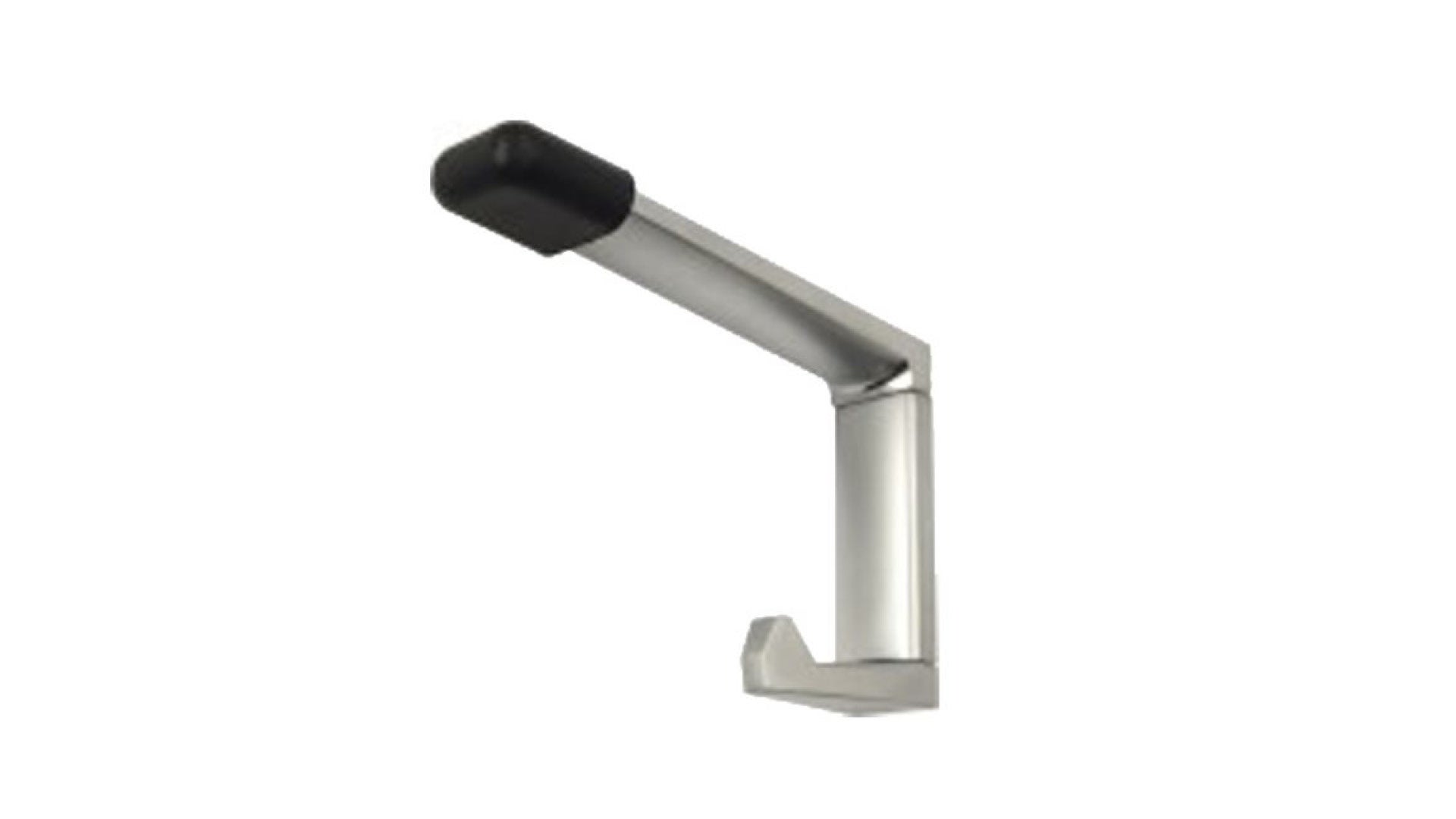

	Coat hooks Code: CH1	Britex (or equivalent) Reference: Die Cast Zinc Hook with Rubber Bumper BTX-10-036 Materials: Stainless steel Finish: Brushed nickel stainless look	Fixture to comply with AS 1428.1 – 2009 For ambulant cubicle Warranty: 12 months

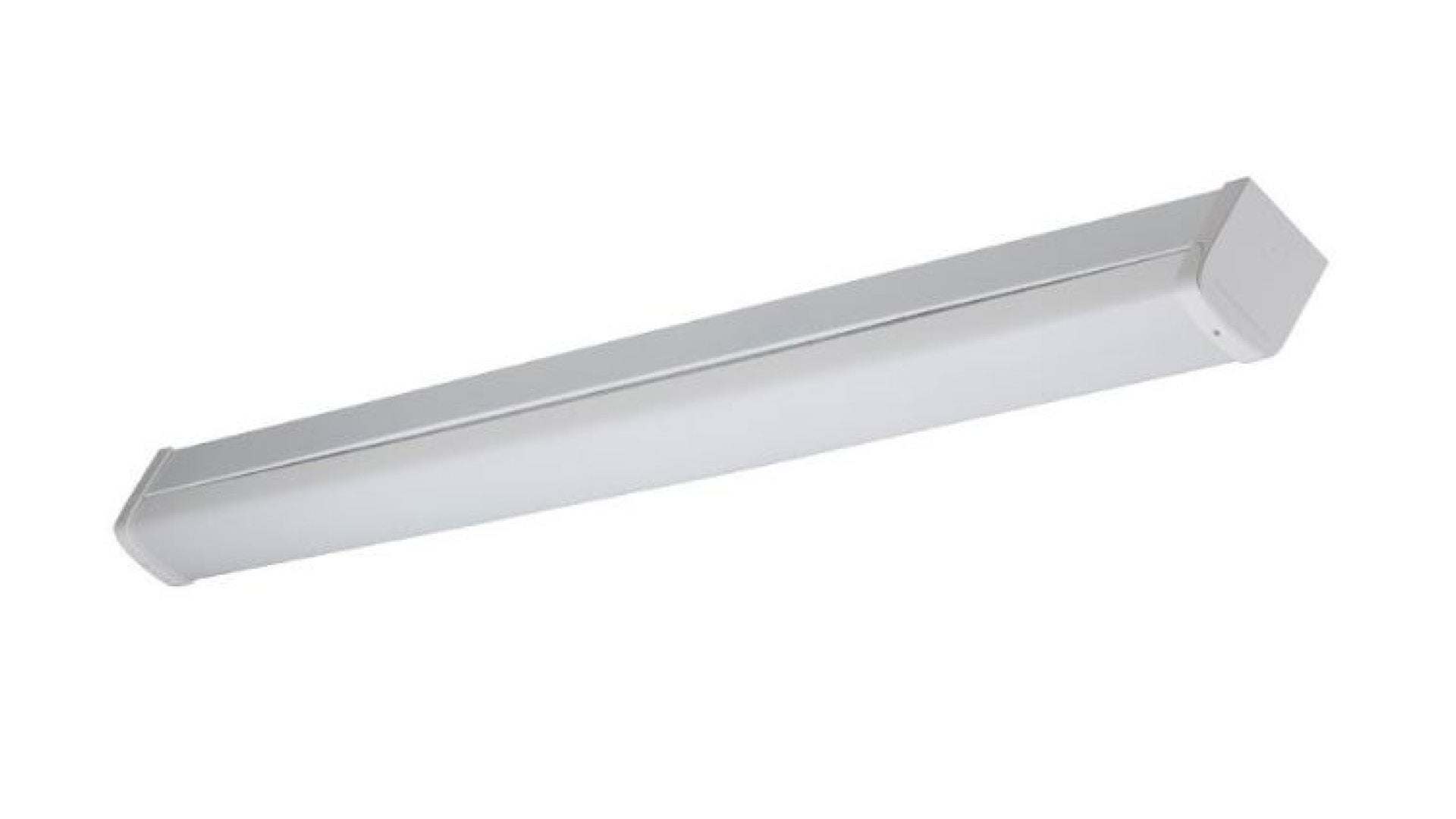

	Light Code: B1	Eagle Lighting (or equivalent) Reference: Densus LED Batten Luminaire 4000K Materials: Weatherproof Vandal Resistant Polycarbonate diffuser/cover Finish: Low glare opal diffuser with grey body	Surface mounted vandal resistant Warranty: 5 years

Table 2: Fixtures, fittings and equipment schedule – Amenities with service corridor - Person with disability (PWD) cubicles

Embellishment	Product/Code	Supplier	Other

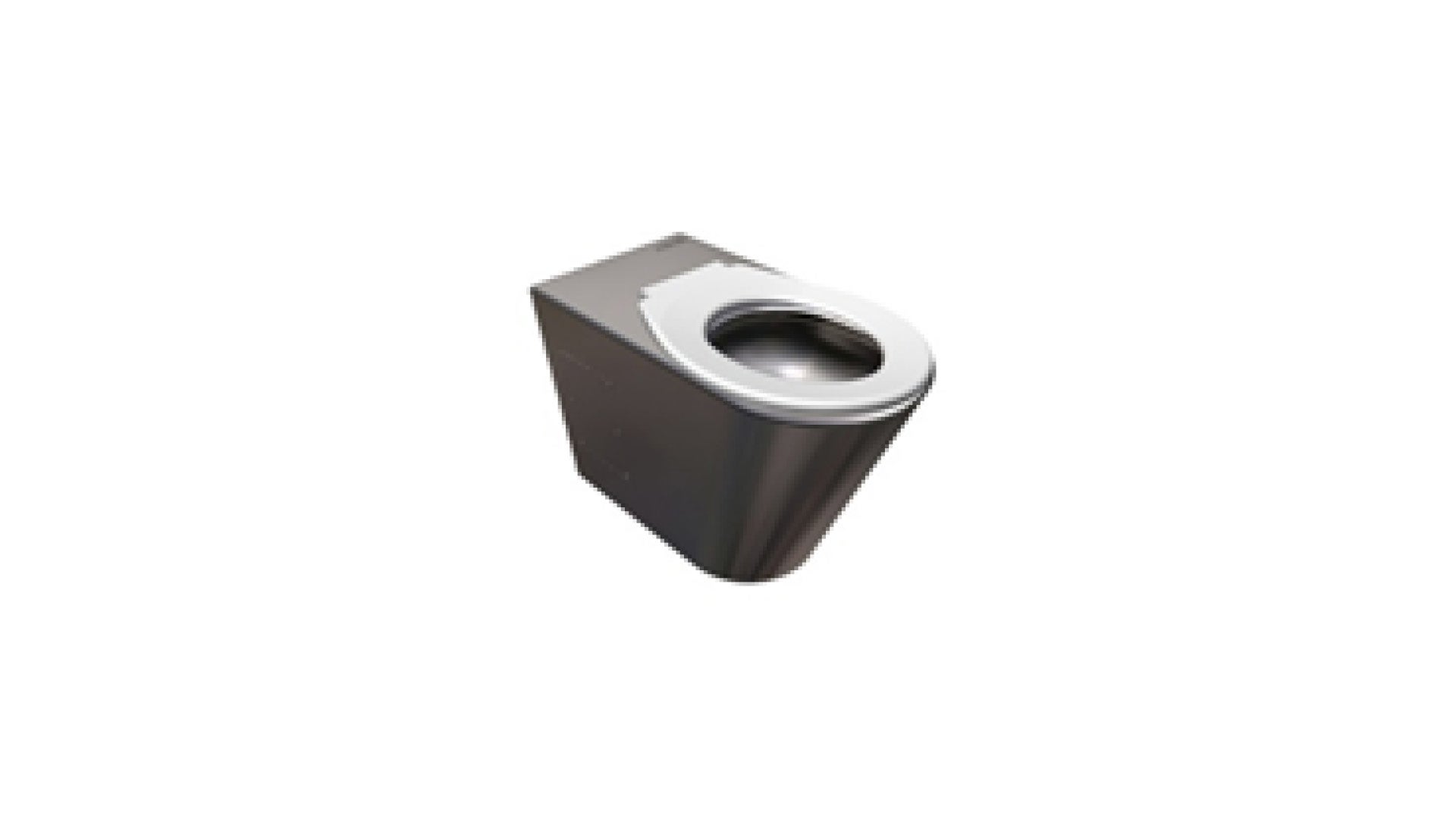

	Toilet pan Code: WCP	Stoddart (or equivalent) Reference: SPPL-TP-WF-3-D-S-BSA S Trap Materials: Stainless steel Finish: Polished	Provide CMPL.0814 plastic seat. Fixture to comply with AS1428.1 – 2009 Warranty: 12 months
	Cistern Code: C	Caroma (or equivalent) Reference: Invisi Series II in-wall cistern with SS access panel. Code 237003 and Code 237030 Materials: Plastic Finish: White plastic	Wels 4 Star rated - 4.5/3 litre average flush Warranty: 10 years
	Flush buttons Code: FB	Caroma (or equivalent) Reference: Invisi Series II Round Dual Flush Plate and Raised Care Buttons Code No. 237086C Materials: Chrome Finish: Polished	Fixture to comply with AS 1428.1 – 2009 Warranty: 10 years

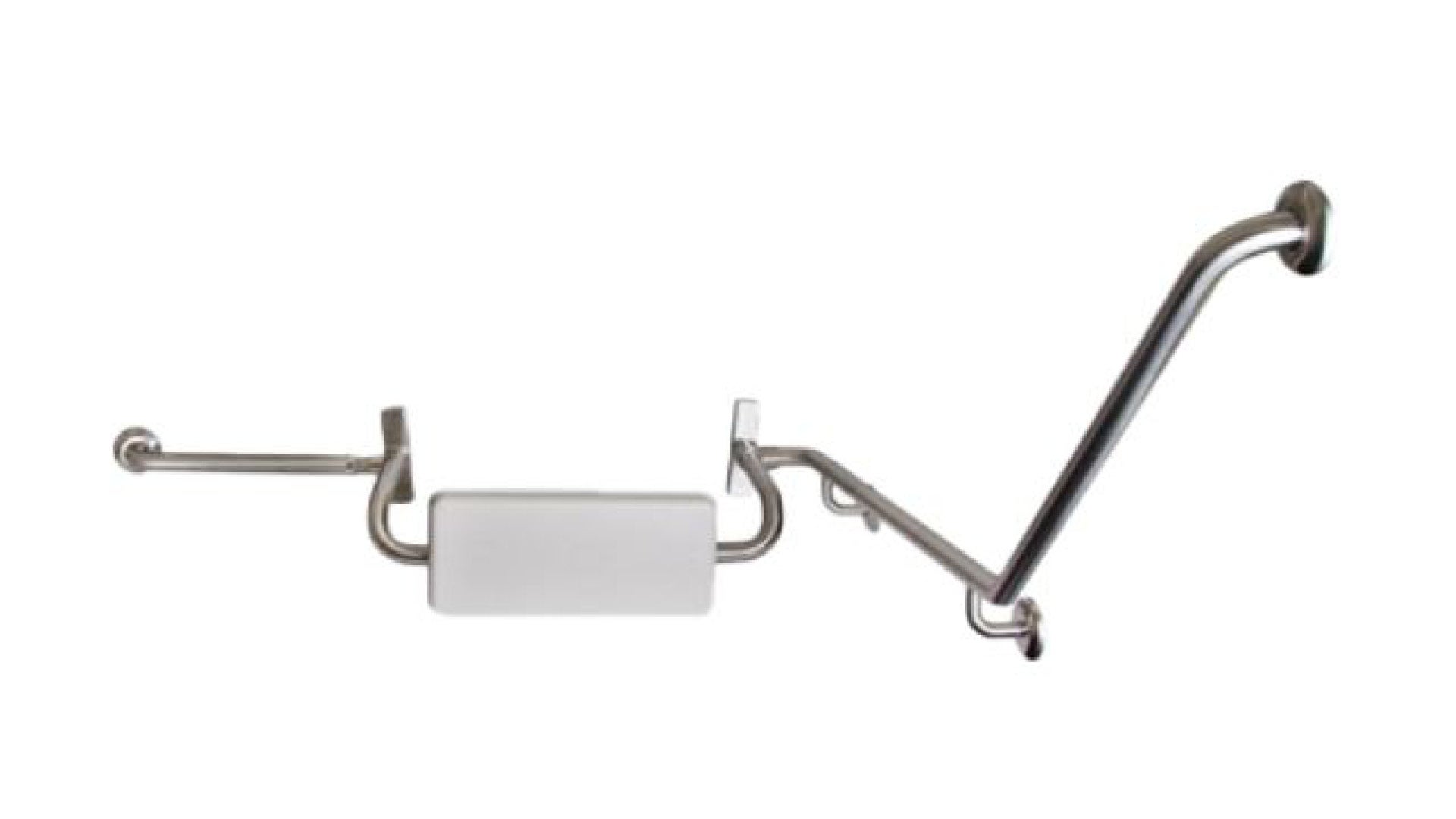

	Grab rail Code: GR-PWD	Britex (or equivalent) Reference: Backrest with Combination Side and Rear Rails BTX-BRC-R90-VR or BTX-BRC-L90-VR Materials: Stainless steel Finish: Polished	Comply with AS 1428.1-2009 Warranty: 12 months

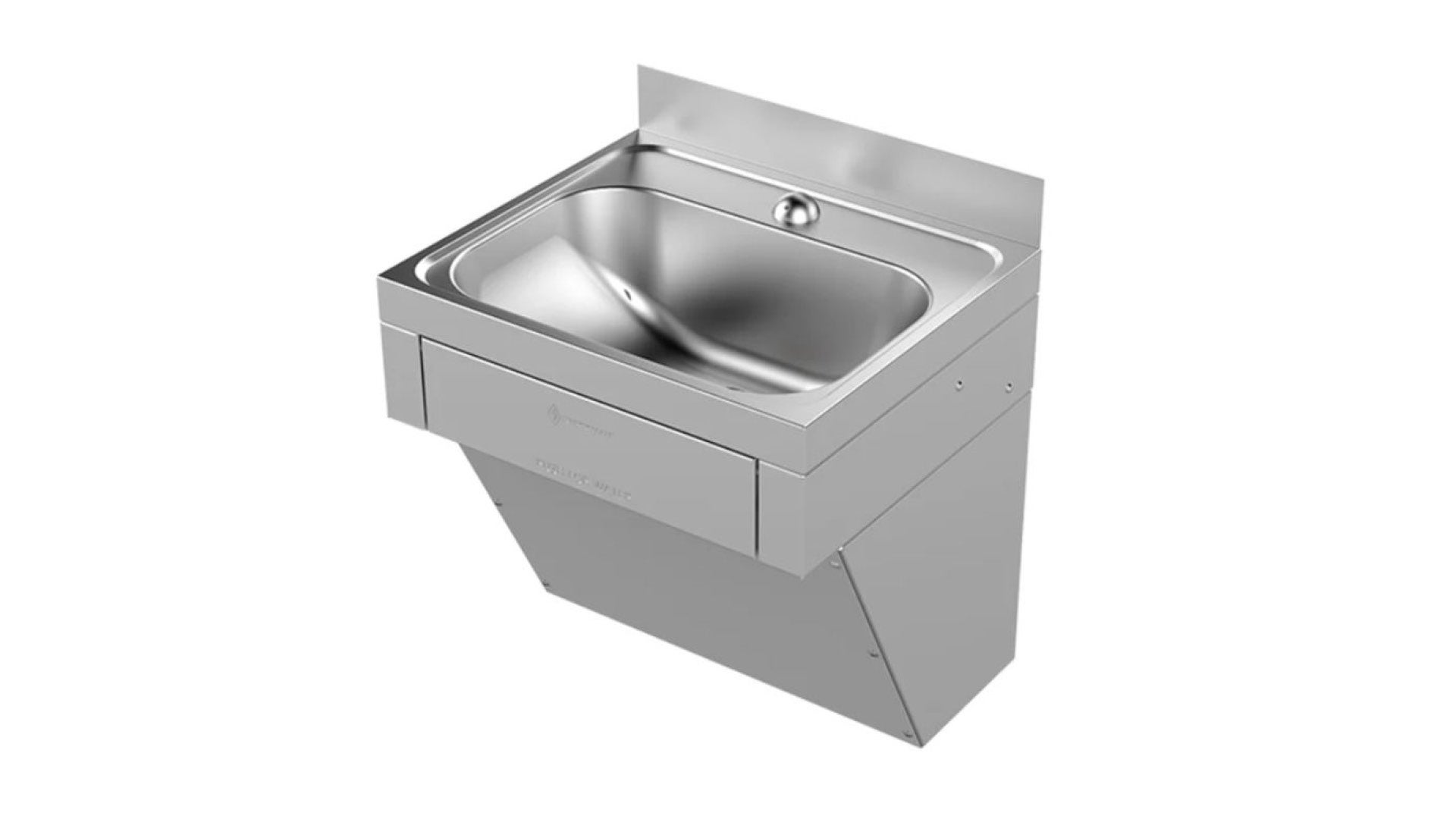

	Hand basin Code: HB1	Stoddart (or equivalent) Reference: SPPL-WB-K02 Materials: Stainless steel Finish: Polished	Knee operated with strainer and time restricted water flow to 5 – 8 seconds Warranty: 12 months

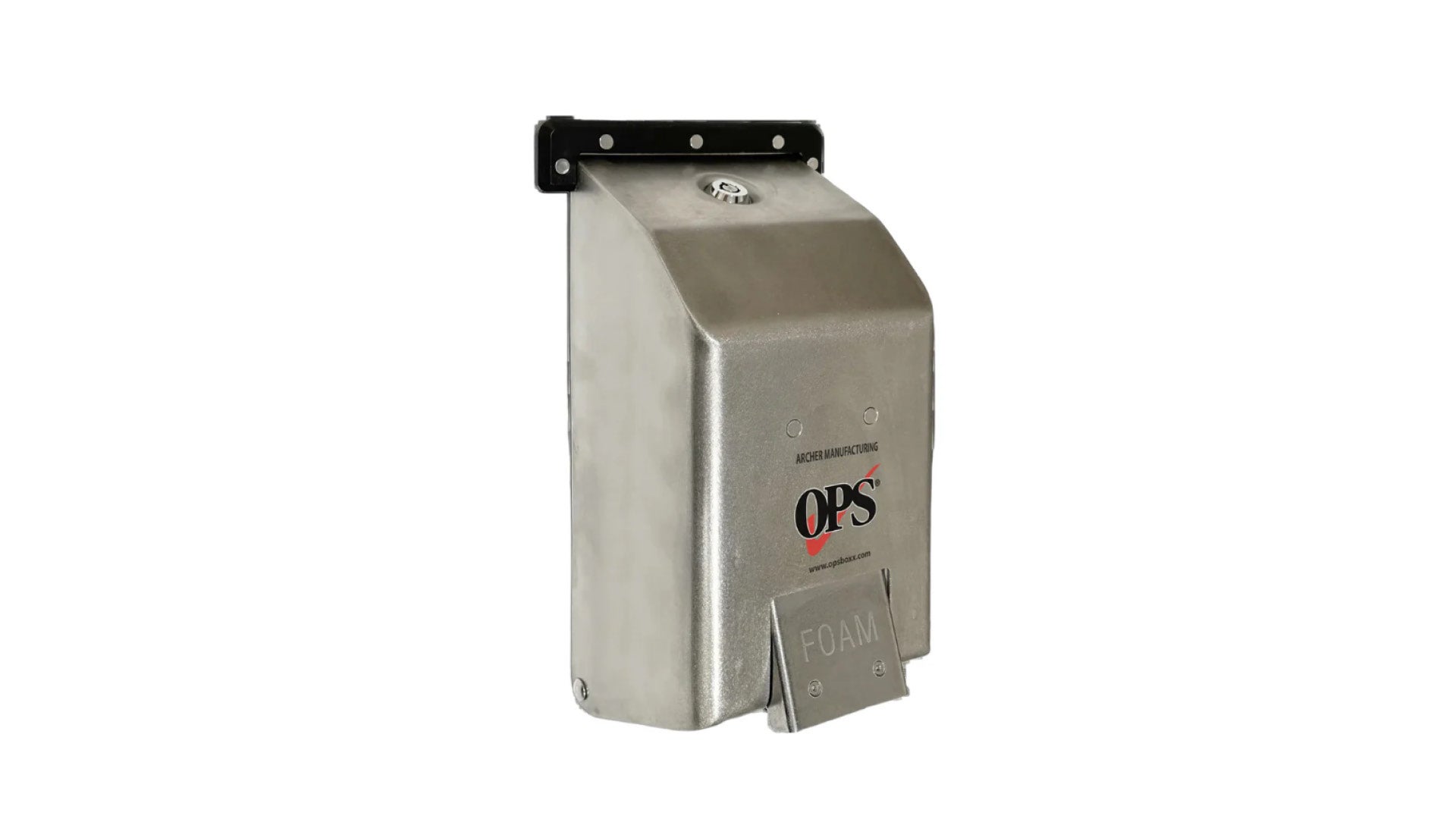

	Soap dispenser Code: SD	First Aid Distributions (or equivalent) Reference: OPS 1-Touch Soap Dispenser Supplier’s no: 132024 Materials: Stainless steel Finish: Satin finish	Foamed soap manually dispensed by depressing push button Warranty: 5 years

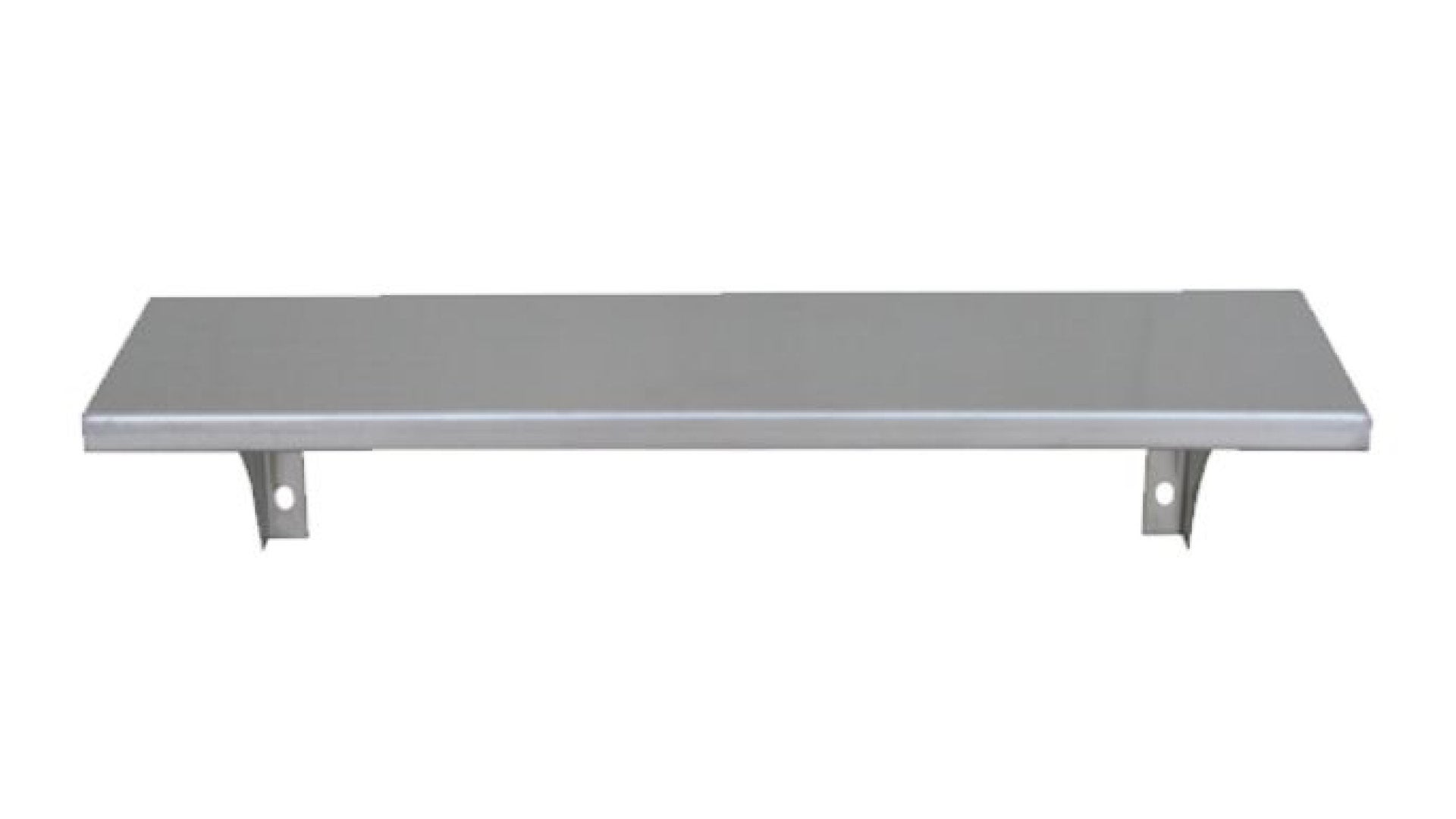

	Shelf Code: SHF	Britex (or equivalent) Reference: BTX-10-011 Materials: Stainless steel Finish: Polished	Surface mounted flat top type Warranty: 12 months
	Toilet roll holder Code: TRH	Sunshine Coast Council Reference: Double Materials: Stainless steel Finish: Polished
	Coat hook Code: CH1	Britex (or equivalent) Reference: Die Cast Zinc Hook with Rubber Bumper BTX-10-036 Materials: Stainless steel Finish: Brushed nickel stainless look	Fixture to comply with AS 1428.1 – 2009 For ambulant cubicle Warranty: 12 months
	Light Code: B1	Eagle Lighting (or equivalent) Reference: Densus LED Batten Luminaire 4000K Materials: Weatherproof Vandal Resistant Polycarbonate diffuser/cover Finish: Low glare opal diffuser with grey body	Surface mounted vandal resistant Warranty: 5 years

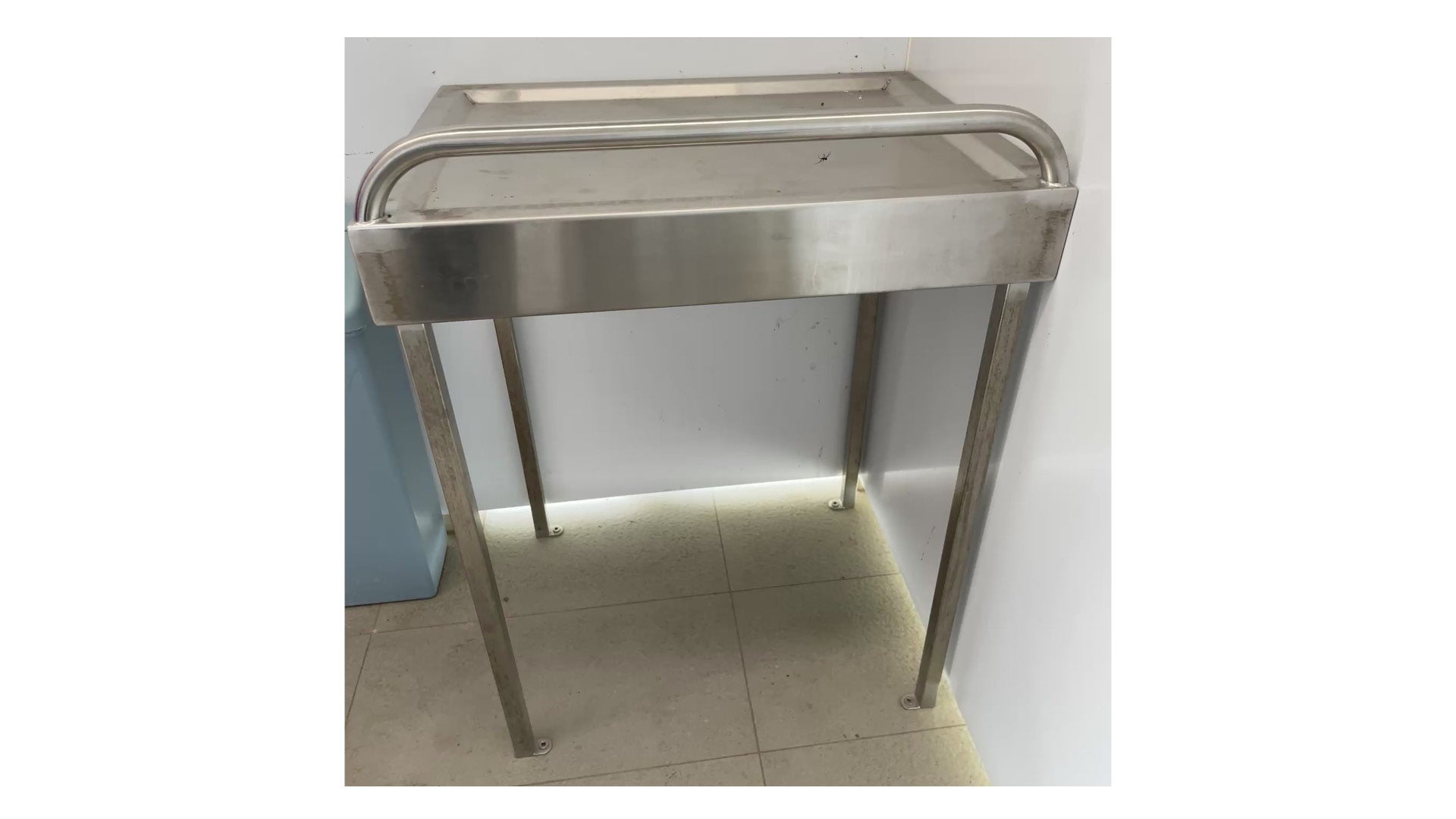

	Baby change table Code: BCT	Aqua-Tec Engineering Reference: Baby Change Table (4-leg) Materials: 316 Stainless steel Finish: 2B	Ensure compliance with AS 1428.1 – 2009 and AS1428.2 – 1992 Warranty: 12 months

Table 3: Fixtures, fittings and equipment schedule – Partition system

Embellishment	Product/Code	Supplier	Other

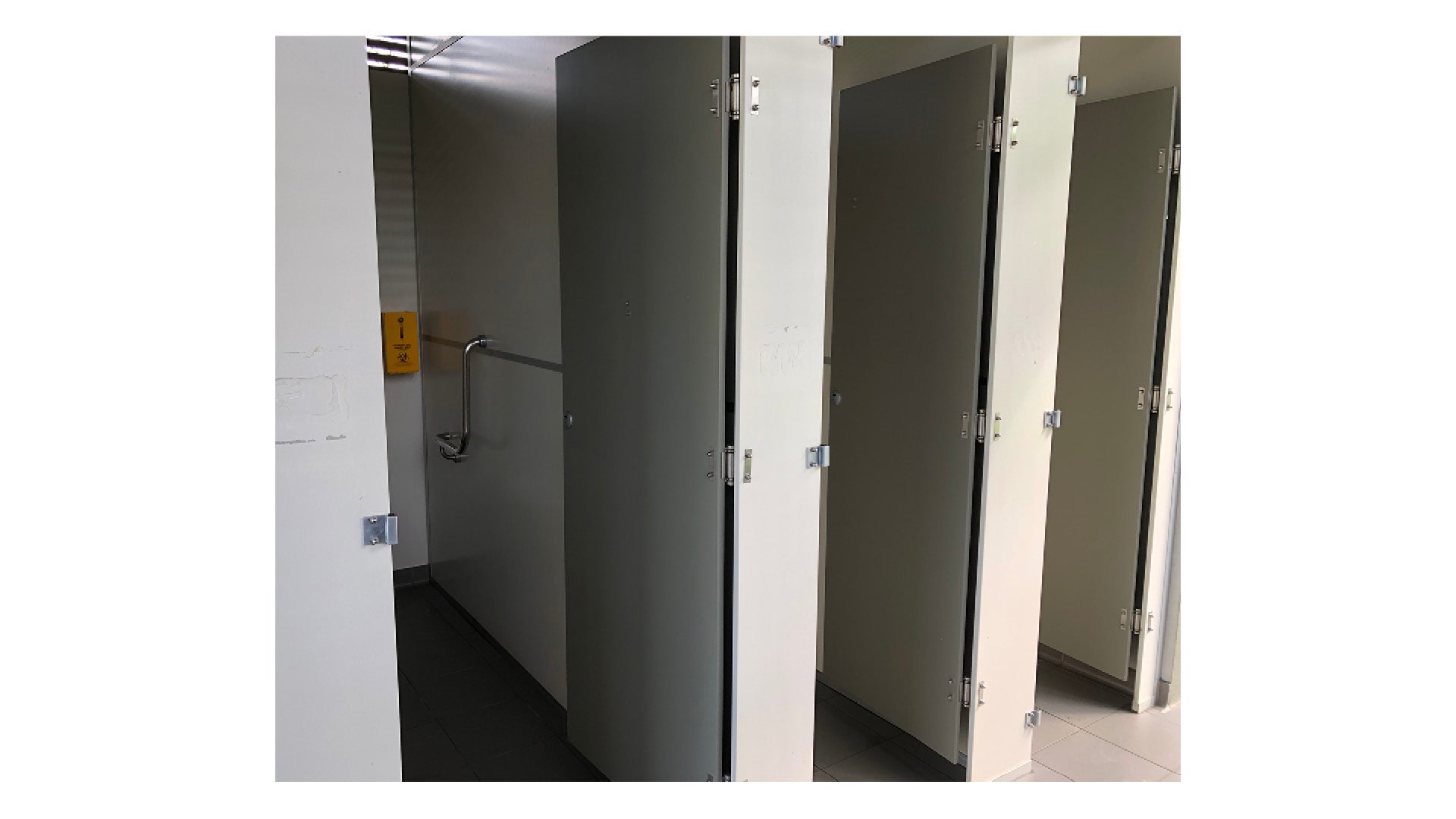

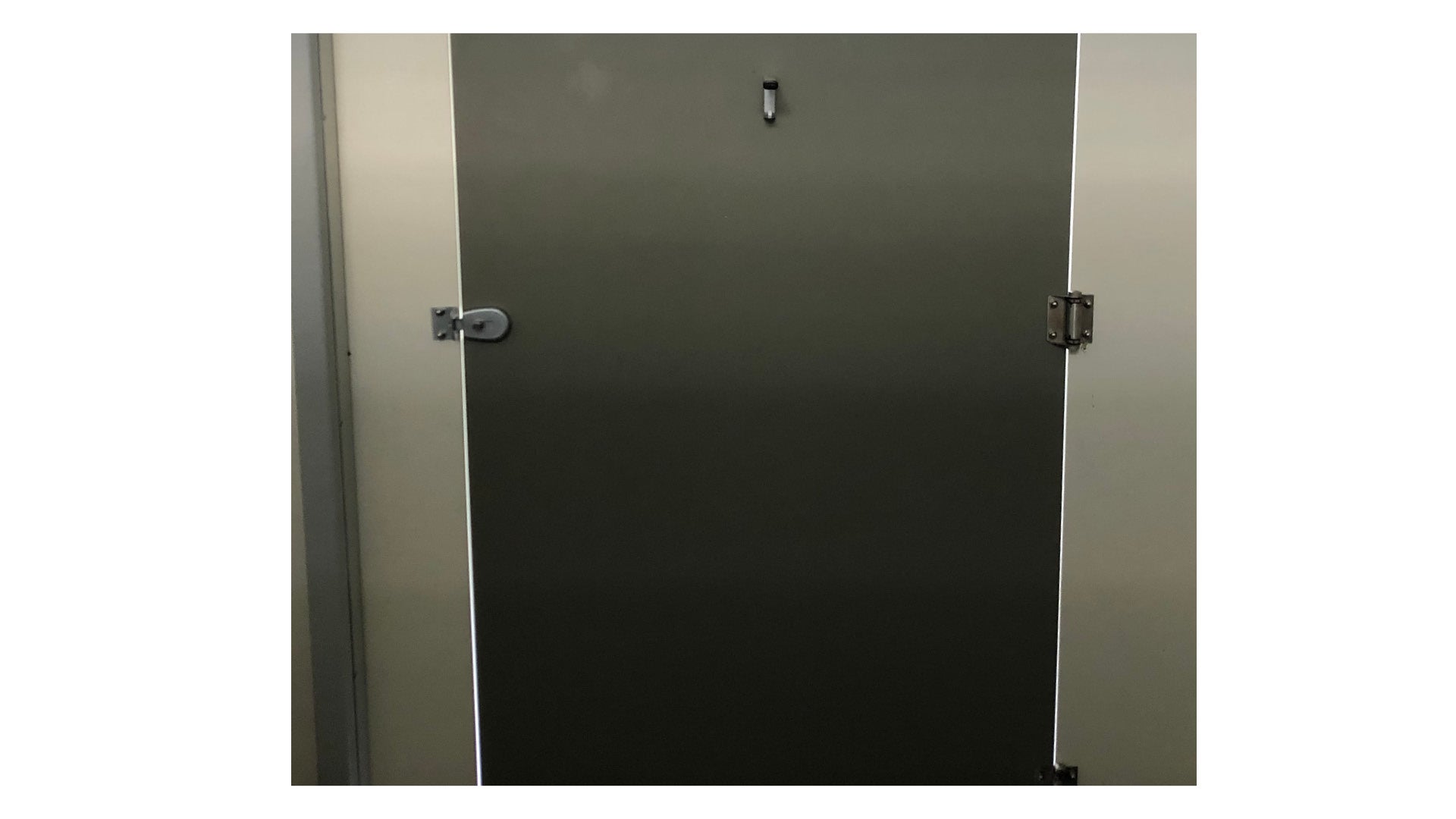

	Cubicle door Code: CD	James Hardie (or equivalent) Reference: 18 mm Compressed Fibre Cement (CFC) Materials: 2-pack polyurethane paint system. Dulux (or equivalent) Finish: Stipple	Provide a foot to Urinal partitions. Screw fix to floor Warranty: N/A
	Cubicle wall Code: CW	James Hardie (or equivalent) Reference: 18 mm Compressed Fibre Cement (CFC) Materials: Stainless steel Finish: Polished	Wels 4 Star rated - 4.5/3 litre average flush Warranty: N/A

Table 4: Fixtures, fittings and equipment schedule – Basin area

Embellishment	Product/Code	Supplier	Other
	Hand basin Code: HB1	Stoddart (or equivalent) Reference: SPPL-WB-K02 Materials: Stainless steel Finish: Polished	Knee operated with strainer and time restricted water flow from 1-30 seconds. Council standard is adjusted to 5–8 seconds Warranty: 12 months
	Light Code: B1	Eagle Lighting (or equivalent) Reference: Densus LED Batten Luminaire 4000K Materials: Weatherproof Vandal Resistant Polycarbonate diffuser/cover Finish: Low glare opal diffuser with grey body	Surface mounted vandal resistant Warranty: 5 years
	Soap dispenser Code: SD	First Aid Distributions (or equivalent) Reference: OPS 1-Touch Soap Dispenser Supplier’s no: 132024 Materials: Stainless steel Finish: Satin finish	Foamed soap manually dispensed by depressing push button System access: Keyed refill door at top Warranty: 5 years

Table 5: Fixtures, fittings and equipment schedule – General

Embellishment	Product/Code	Supplier	Other

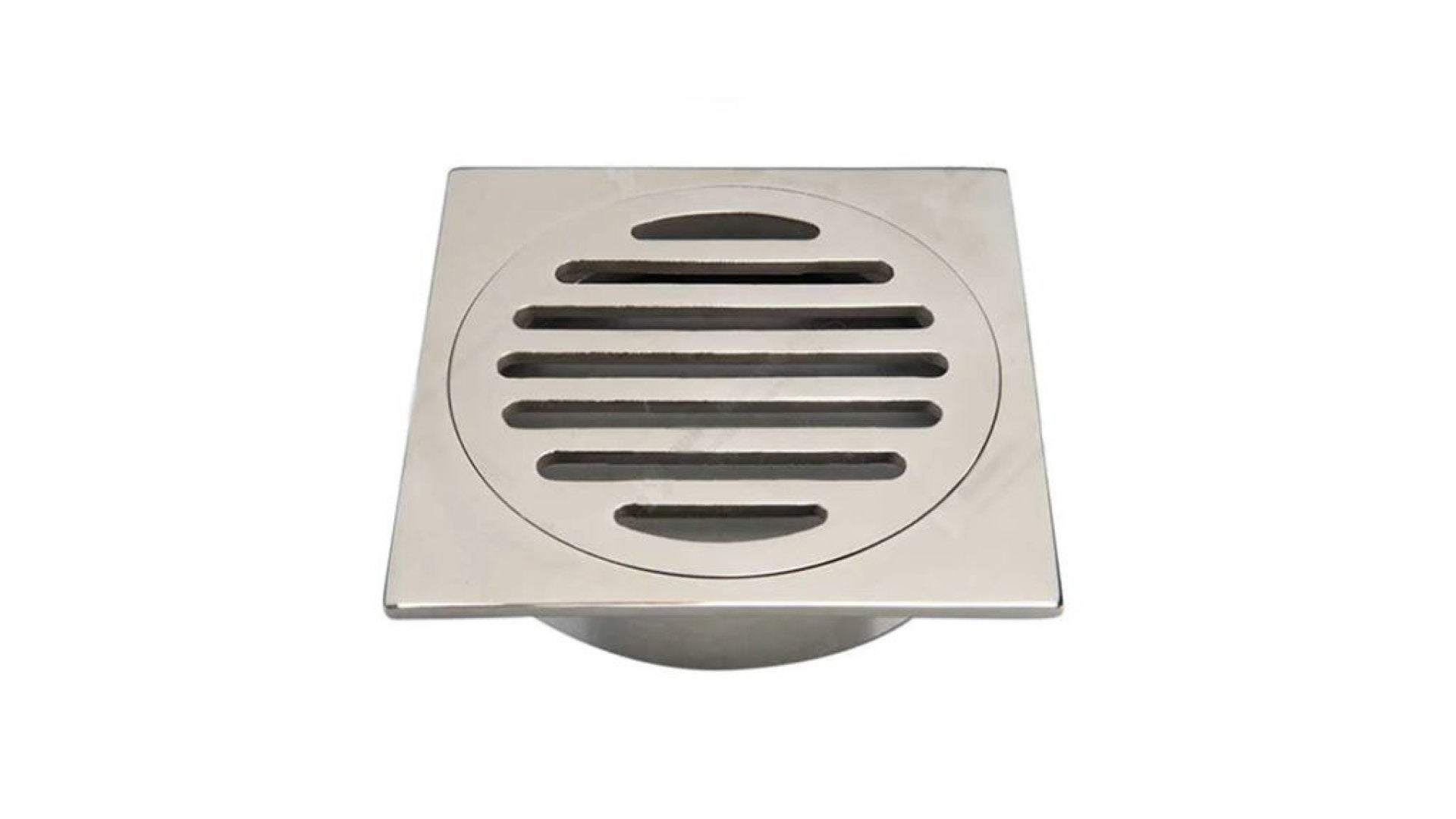

	Floor waste Code: FWG	Bounty Brassware (or equivalent) Reference: Square Floor Waste (50mm) 13206.12 Materials: Stainless steel Finish: Polished	316 grade Warranty: 5 years

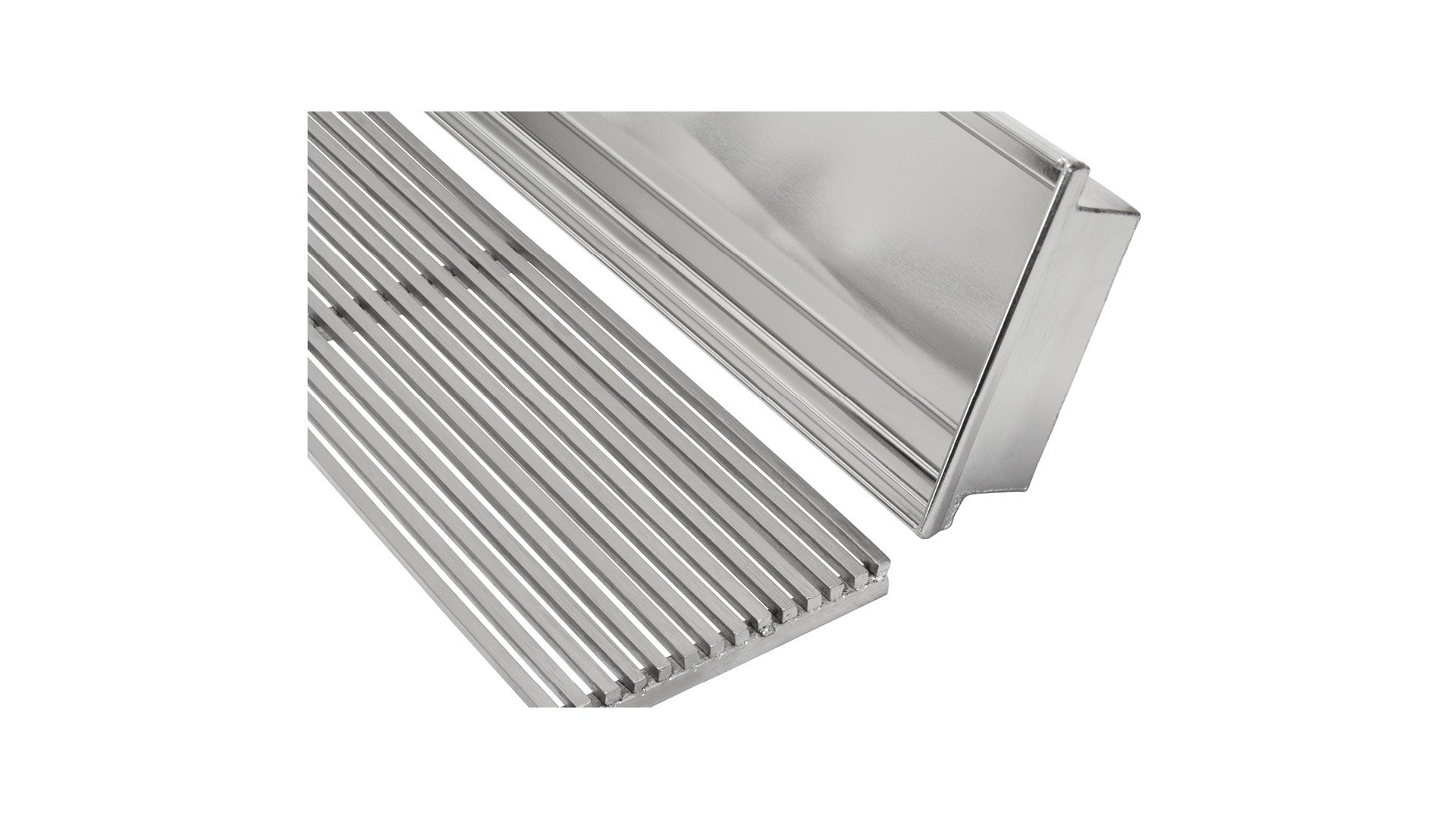

	Grated strip drain Code: SGD	3monkeez (or equivalent) Reference: Square Bar Grate 100mm W SBGO Floor Trough M-FT-4 Materials: Stainless steel Finish: Polished	316 grade Warranty: 12 months

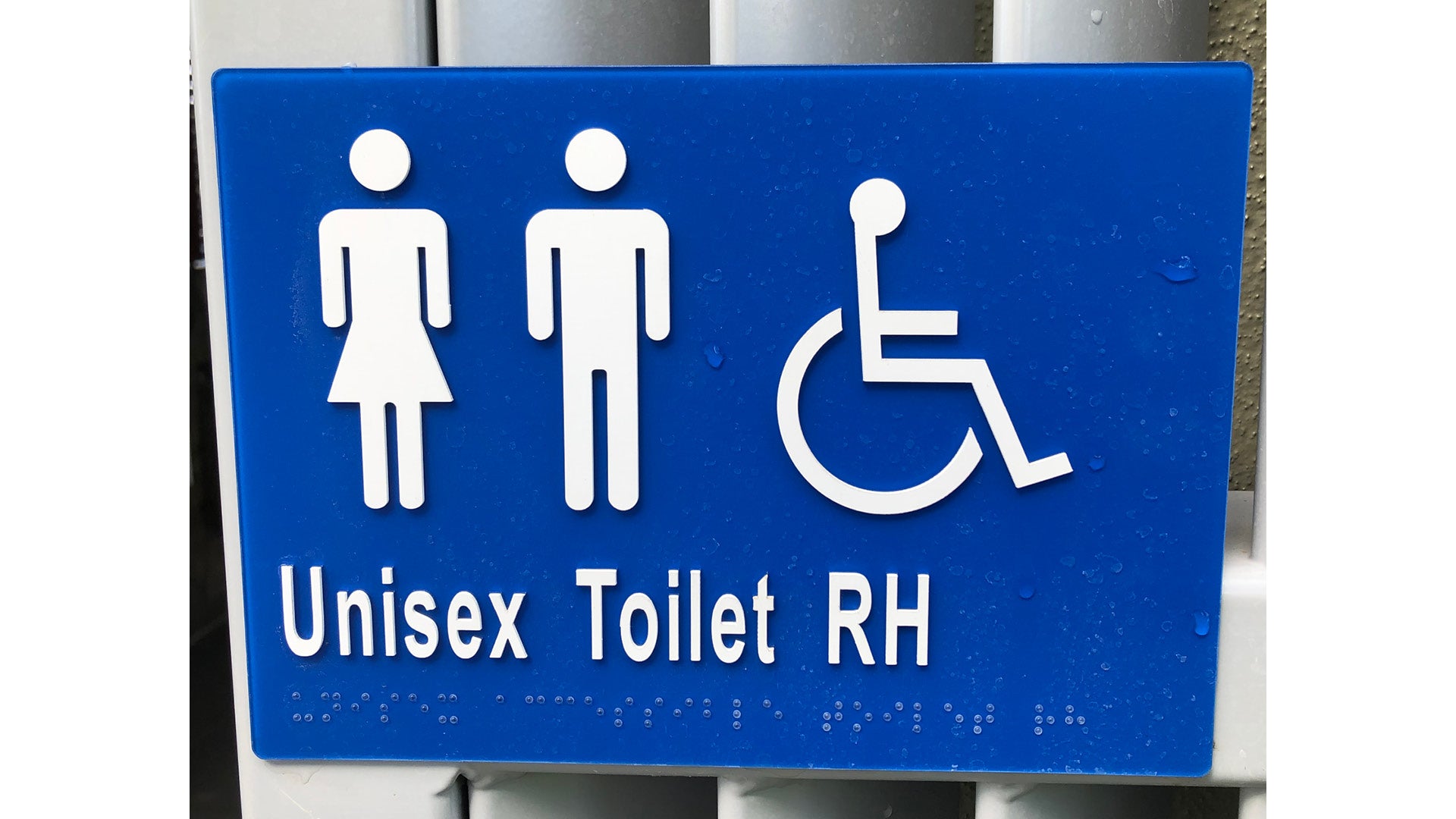

	Signage Code: NA	Various signage supplier Reference: Varies Materials: Blue acrylic Finish: Matt with raised Braille to suit	Signage to comply with AS 1428.1-2009 Warranty: N/A

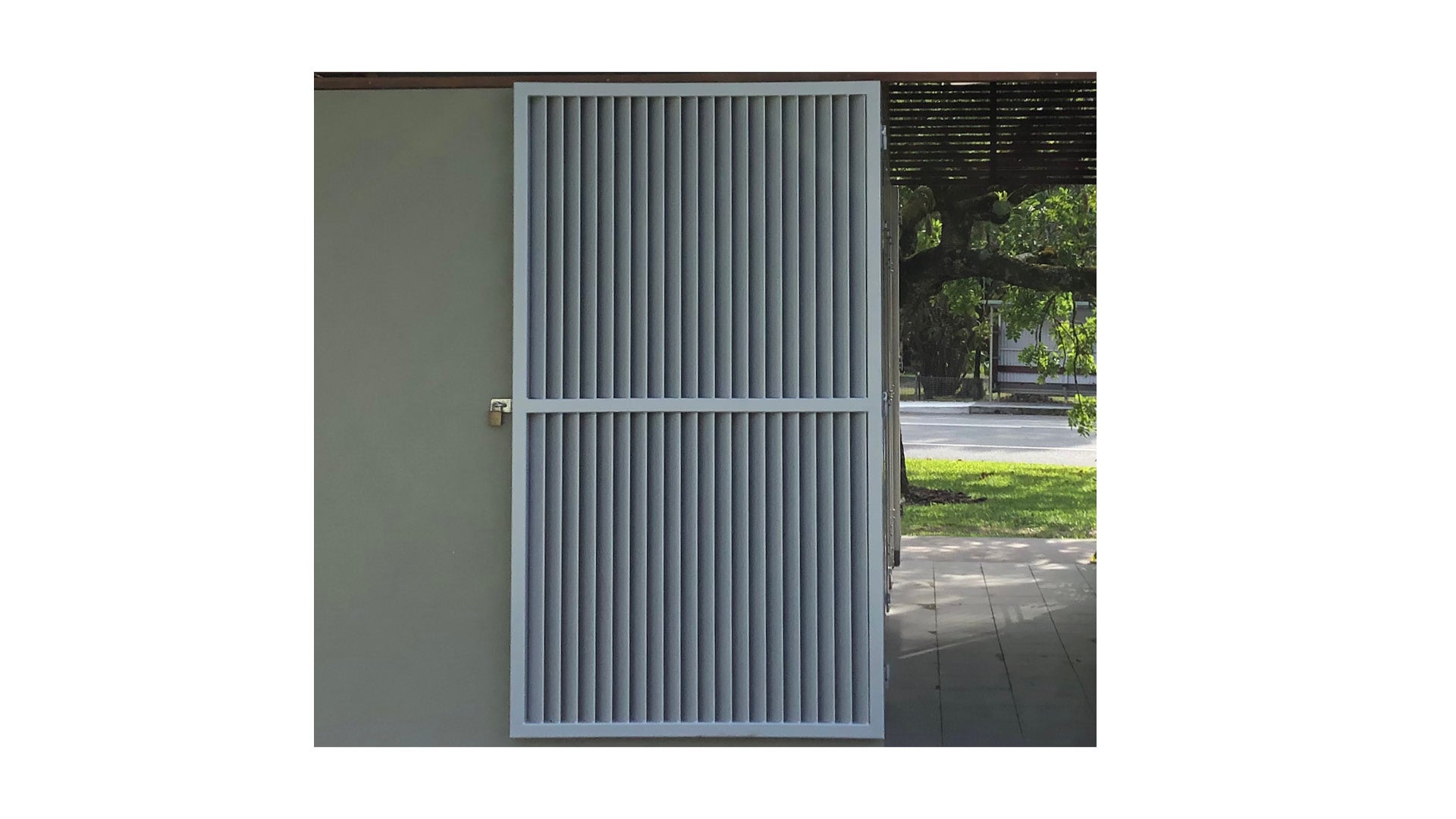

	Louvre gates Code: ALG	Various aluminium supplier Reference: 88 mm x 14 mm Elliptical fixed 76 mm x 50 mm RHS Frame Materials: Aluminium Finish: Dulux Duratec (or equivalent) Powdercoat	Warranty: N/A
	Louvre screens Code: ALS	Various aluminium supplier Reference: 88 mm x 14 mm Elliptical fixed 76 mm x 50 mm RHS Frame Materials: Aluminium Finish: Dulux Duratec (or equivalent) Powdercoat	Warranty: N/A

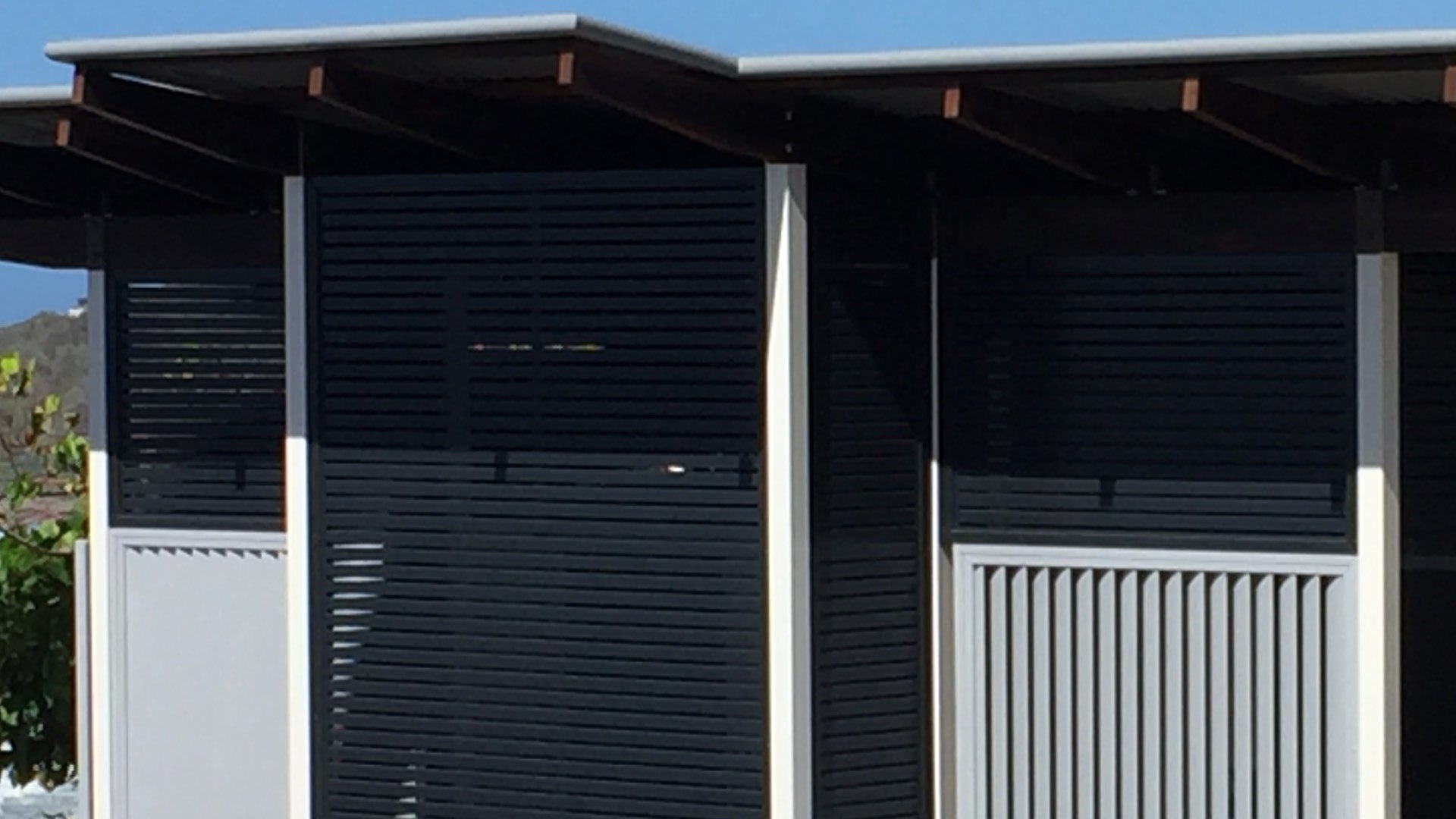

	Batten screens Code: ABS1, ABS2	Various aluminium supplier Reference: 50 mm x 40 mm RHS Materials: Aluminium Finish: Dulux Duratec (or equivalent) Powdercoat	Warranty: N/A

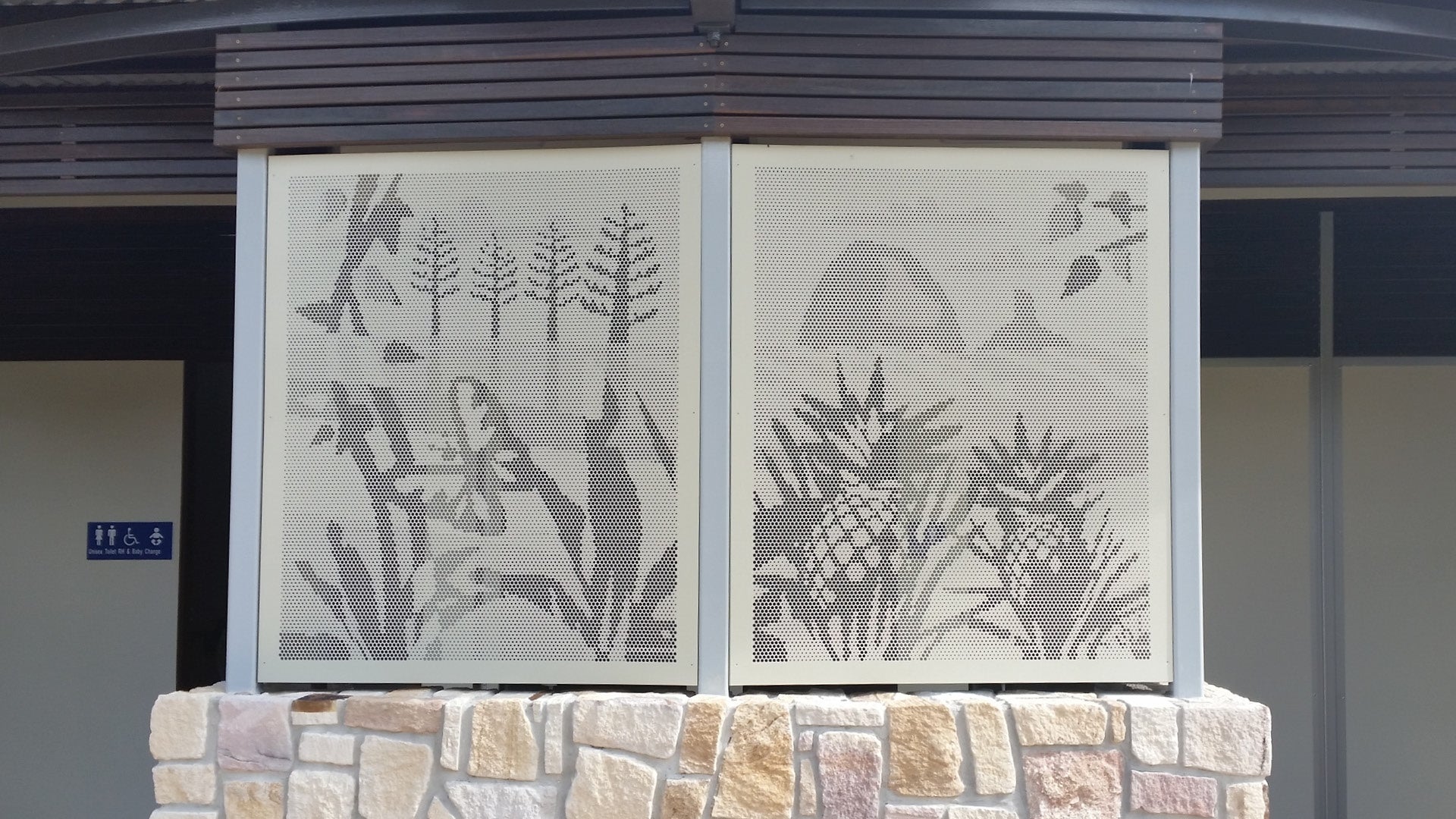

	Perforated screens Code: APS	Various aluminium supplier Reference: Size to suit Materials: Aluminium Finish: Dulux Duratec (or equivalent) Powdercoat	Warranty: N/A

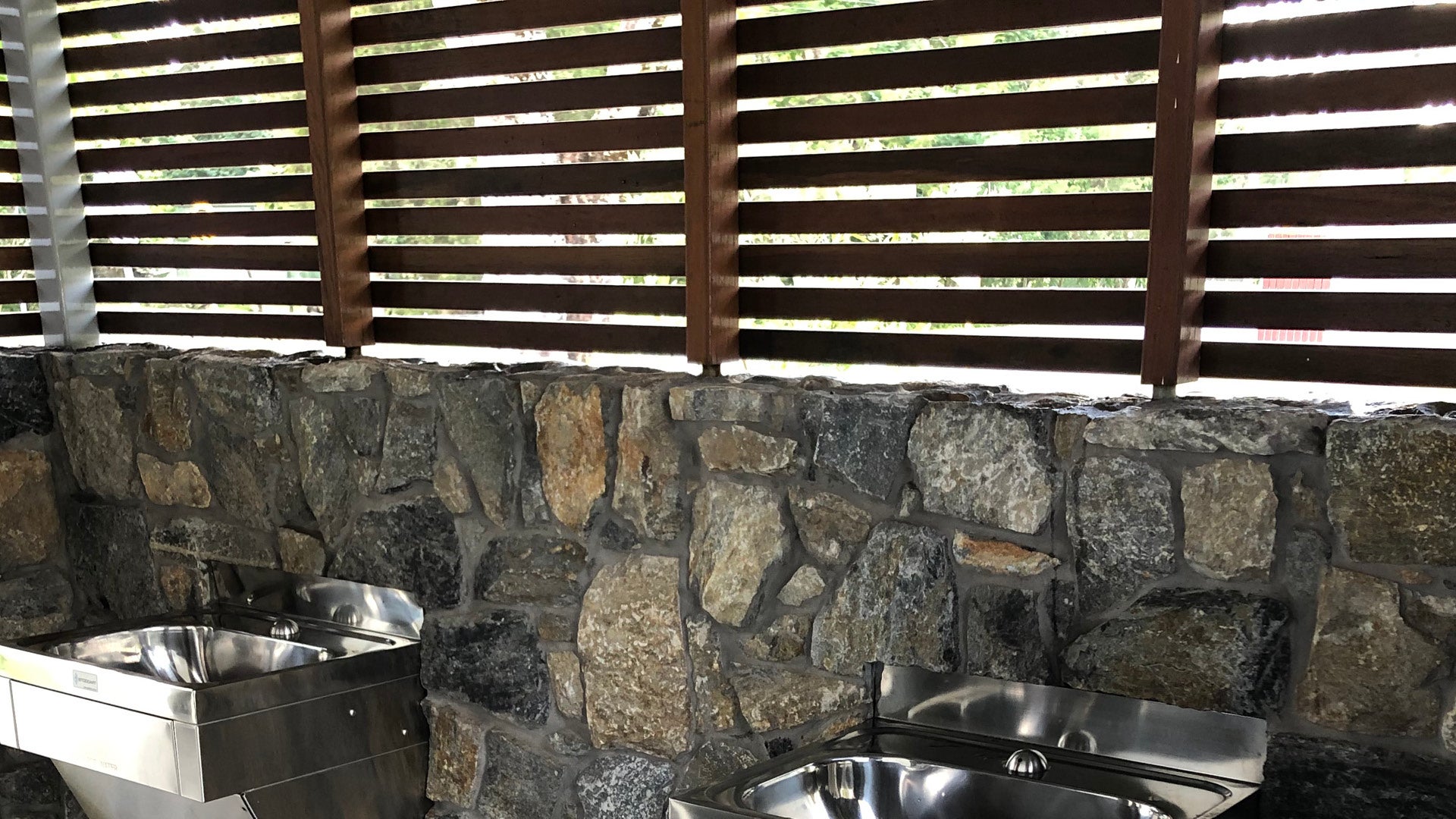

	Timber batten screens Code: TBS	Various timber supplier Reference: Ironbark hardwood dressed 42 mm x 42 mm Materials: Hardwood Finish: Intergrain Ultredeck (or equivalent)	Warranty: N/A

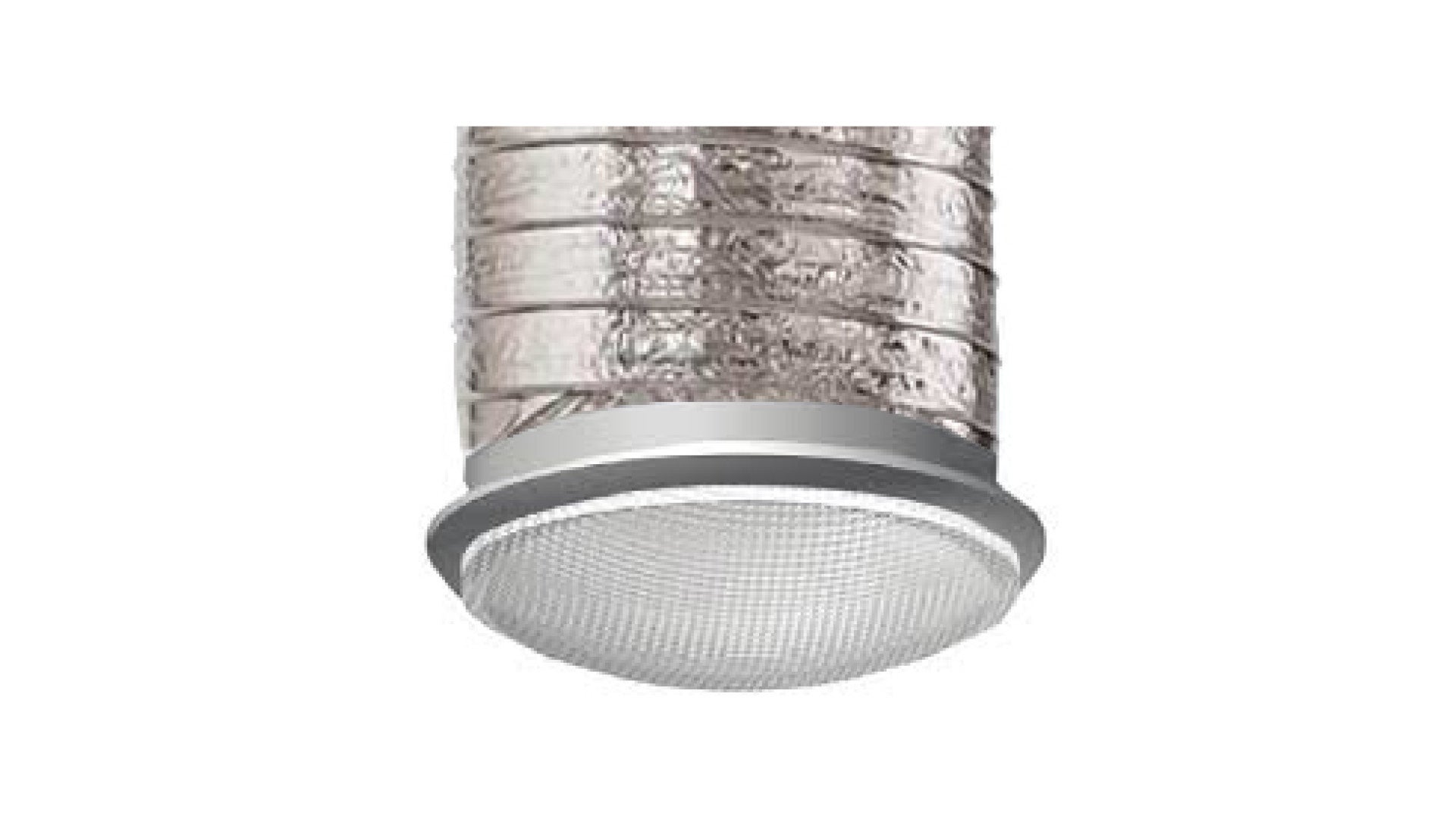

	Roof Ventilators/Skylights Code: SKL	Solatube (or equivalent) Reference: Econotube Skylight with Passive Ventilation – 400 mm - for shafts 500 mm or less Materials: Aluminium case Polycarbonate plastic clear diffuser Finish: Satin	Warranty: 10 years

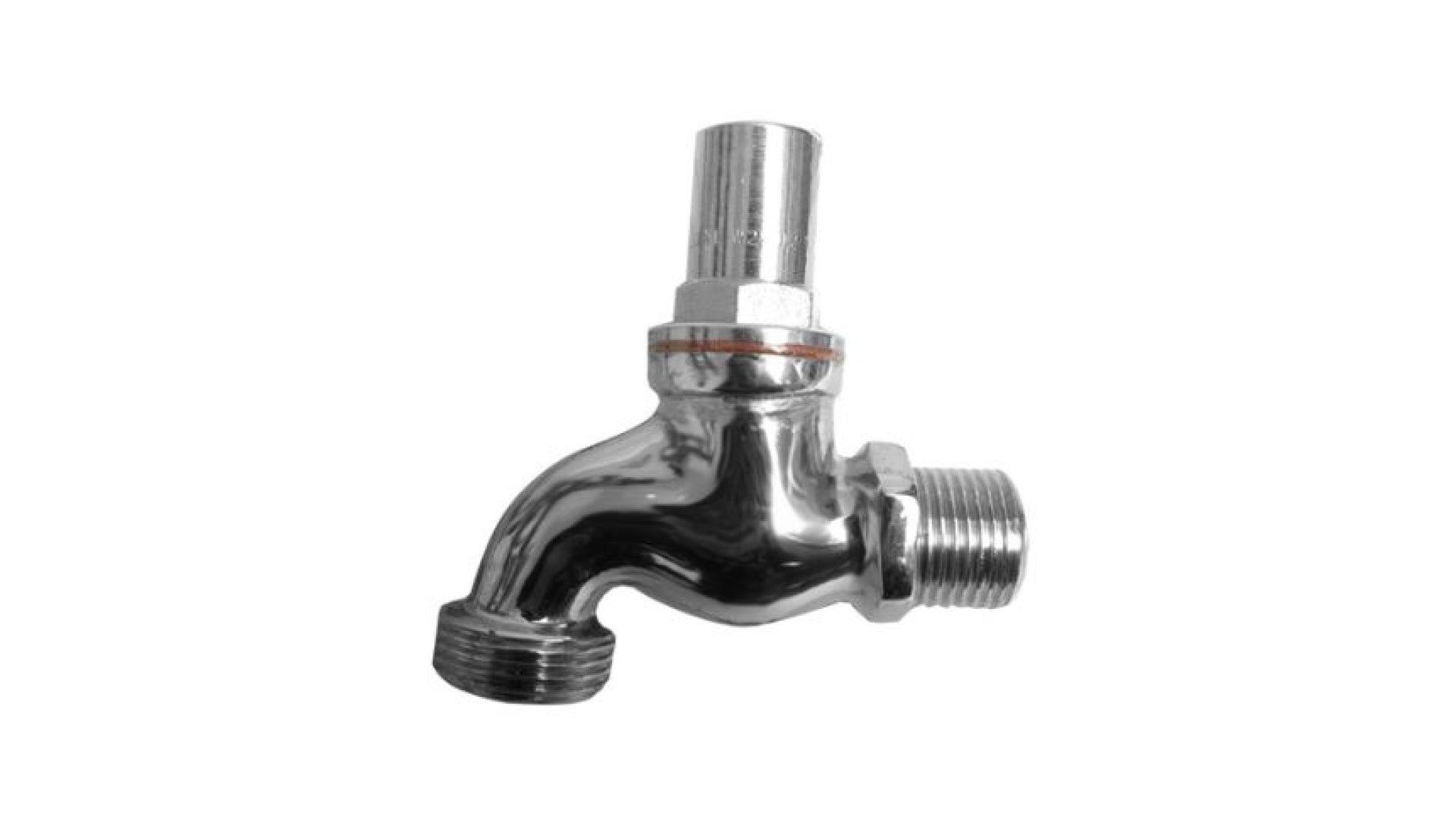

	Hose cock Code: HC	Galvin Engineering (or equivalent) Reference: Key control hose tap 12 Code: 13284 Key for key control tap Code: 13300 Materials: Solid DR brass Finish: Chrome plated	Warranty: 2 years
photo not currently available	Electrical switchboard Code: MSB	To be determined Reference: 3 mm aluminium Materials: Aluminium Finish: Powder coated aluminium	System access: padlockable See LIM Electrical for further guidance. Warranty: N/A

Table 6: External finishes schedule – Coastal colour palette

Embellishment/Code	Product	Supplier	Other
Masonry blockwork (rendered) Code: BLK-RF	Paint	Dulux (or equivalent) Finish: Satin Colour: Deep Ocean C24 (or equivalent)	Durebild STE and Weathermax HBR Anti-Graffiti (or equivalent)
Roof sheeting Code: MRS	Colorbond metal	Lysaght (or equivalent) Finish: Satin Colour: Windspray C18 (or equivalent)
Barge roll Code: MBR	Colorbond metal	Lysaght (or equivalent) Finish: Satin Colour: Windspray C18 (or equivalent)
Insulation/sarking Code: INS-R	Foil faced glasswool blanket	Bradfords (or equivalent) Finish: NA Colour: NA	Anticon 80 (or equivalent)
Timber roof beams and rafters Code: TRB	Oil	Intergrain Ultradeck (or equivalent) Finish: Satin Colour: Natural	Dressed hardwood
Steel Column Code: COL	Stainless steel	Various Finish: Natural Colour: Stainless steel	Grade 316
Timber Column Code: COL1	Oil	Intergrain Ultradeck (or equivalent) Finish: Satin Colour: Natural	Dressed hardwood
Aluminium fixed louvres screens Code: ALS	Powdercoat	Dulux (or equivalent) Finish: Satin Colour: Citi Silver Pearl (or equivalent)	Duratec (or equivalent)
Aluminium batten screens Code: ABS1	Powdercoat	Dulux (or equivalent) Finish: Satin Colour: Citi Silver Pearl (or equivalent)	Duratec (or equivalent)
Aluminium batten screens Code: ABS2	Powdercoat	Dulux (or equivalent) Finish: Satin Colour: Charcoal (or equivalent)	Duratec (or equivalent)
Aluminium louvre gates Code: ALG	Powdercoat	Dulux (or equivalent) Finish: Satin Colour: Citi Silver Pearl (or equivalent)	Duratec (or equivalent)
Timber batten screens Code: TBS	Oil	Intergrain Ultradeck (or equivalent) Finish: Satin Colour: Natural	3 coats
Concrete paths Code: CONC-BF	Clear	Various Finish: Broom Colour: Natural	Non slip
Gutters Code: MEG	Colorbond metal	Lysaght (or equivalent) Finish: Satin Colour: Windspray C18 (or equivalent)	Half round
PVC downpipes Code: DP	Paint	Dulux (or equivalent) Finish: Satin Colour: Deep Ocean C24 (or equivalent	Size to suit

Table 7: External finishes schedule – Hinterland colour palette

Embellishment/Code	Product	Supplier	Other
Masonry blockwork (rendered) Code: BLK-RF	Paint	Dulux (or equivalent) Finish: Satin Colour: Bushland Grey S13A5 (or equivalent)	Durebild STE and Weathermax HBR Anti-Graffiti (or equivalent)
Roof sheeting Code: MRS	Colorbond metal	Lysaght (or equivalent) Finish: Satin Colour: Surfmist C1 (or equivalent)
Barge roll Code: MBR	Colorbond metal	Lysaght (or equivalent) Finish: Satin Colour: Surfmist C1 (or equivalent)
Insulation/sarking Code: INS-R	Foil faced glasswool blanket	Bradfords (or equivalent) Finish: NA Colour: NA	Anticon 80 (or equivalent)
Timber roof beams and rafters Code: TRB	Oil	Intergrain Ultradeck (or equivalent) Finish: Satin Colour: Natural	Dressed hardwood
Column Code: COL	Stainless steel	Various Finish: Satin Colour: Citi Silver Pearl (or equivalent)	Duratec (or equivalent)
Aluminium fixed louvres screens Code: ALS	Powdercoat	Dulux (or equivalent) Finish: Satin Colour: Citi Silver Pearl (or equivalent)	Duratec (or equivalent)
Aluminium batten screens Code: ABS1	Powdercoat	Dulux (or equivalent) Finish: Satin Colour: Citi Silver Pearl (or equivalent)	Duratec (or equivalent)
Aluminium batten screens Code: ABS2	Powdercoat	Dulux (or equivalent) Finish: Satin Colour: Charcoal (or equivalent)	Duratec (or equivalent)
Aluminium louvre gates Code: ALG	Powdercoat	Dulux (or equivalent) Finish: Satin Colour: Citi Silver Pearl (or equivalent)	Duratec (or equivalent)
Timber batten screens Code: TBS	Oil	Intergrain Ultradeck (or equivalent) Finish: Satin Colour: Natural	3 coats
Concrete paths Code: CONC-BF	Clear	Various Finish: Broom Colour: Natural	Non slip
Gutters Code: MEG	Colorbond metal	Lysaght (or equivalent) Finish: Satin Colour: Surfmist C1 (or equivalent)	Half round
PVC downpipes Code: DP	Paint	Dulux (or equivalent) Finish: Satin Colour: Bushland Grey S13A5 OR Deep Ocean C24 (or equivalent)	Size to suit

Table 8: Internal finishes schedule – Unisex

Embellishment/Code	Product	Supplier	Other
Floor tiles Code: CT	Tiles	Everstone Durastone By Tile Solutions (or equivalent) Finish: R10 Colour: Steel Grey (or equivalent)	300 mm x 300 mm, grout to match
Floor tiles Code: SK-CT	Skirting tiles	Everstone Durastone By Tile Solutions (or equivalent) Finish: R10 Colour: Steel Grey Matt (or equivalent)	100 mm x 300 mm, Cove, grout to match
Walls (rendered masonry block) Code: BLK-RF	Paint	Dulux (or equivalent) Finish: Satin Colour: Fair Bianca Half SW1F1 (or equivalent)	Durebild STE and Weathermax HBR Anti-Graffiti (or equivalent)
Walls (FC) Code: FCS-FJ	Paint	Dulux (or equivalent) Finish: Satin Colour: Fair Bianca Half SW1F1 (or equivalent)	Durebild STE and Weathermax HBR Anti-Graffiti (or equivalent)
Walls (Partition) Code: CW	2 Pak Polyurethane Paint	Dulux (or equivalent) Finish: Satin Stipple Colour: Fair Bianca Half SW1F1 (or equivalent)	Durebild STE and Weathermax HBR Anti-Graffiti (or equivalent)
Doors (Partition) Code: CD	2 Pak Polyurethane Paint	Dulux (or equivalent) Finish: Satin Stipple Colour: Bushland Grey S13A5 (or equivalent)	Durebild STE and Weathermax HBR Anti-Graffiti (or equivalent)
Beams/rafters Code: TRB	Lacquer	Intergrain Ultradeck (or equivalent) Finish: Gloss Colour: Natural	Apply 3 coats prior to fixing in place
Aluminium batten screens Code: ABS1	Powdercoat	Dulux (or equivalent) Finish: Satin Colour: Citi Silver Pearl (or equivalent)	Duratec (or equivalent)

Table 9: Internal finishes schedule – Person with disability (PWD) cubicles

Embellishment/Code	Product	Supplier	Other
Floor tiles Code: CT	Tiles	Everstone Durastone By Tile Solutions (or equivalent) Finish: R10 Colour: Steel Grey (or equivalent)	300 mm x 300 mm, grout to match
Floor tiles Code: SK-CT	Skirting tiles	Everstone Durastone By Tile Solutions (or equivalent) Finish: R10 Colour: Steel Grey Matt (or equivalent)	100 mm x 300 mm, Cove, grout to match
Walls (rendered masonry block) Code: BLK-RF	Paint	Dulux (or equivalent) Finish: Satin Colour: Fair Bianca Half SW1F1 (or equivalent)	Durebild STE and Weathermax HBR Anti-Graffiti (or equivalent)
Walls (FC) Code: FCS-FJ	Paint to FC and rendered block	Dulux (or equivalent) Finish: Satin Colour: Fair Bianca Half SW1F1 (or equivalent)	Durebild STE and Weathermax HBR Anti-Graffiti (or equivalent)
Walls (Partition) Code: CW	2 Pak Polyurethane Paint	Dulux (or equivalent) Finish: Satin Stipple Colour: Fair Bianca Half SW1F1 (or equivalent)	Durebild STE and Weathermax HBR Anti-Graffiti (or equivalent)
Doors (Partition) Code: CD	2 Pak Polyurethane Paint	Dulux (or equivalent) Finish: Satin Stipple Colour: Bushland Grey S13A5 (or equivalent)	Durebild STE and Weathermax HBR Anti-Graffiti (or equivalent)
Beams/rafters Code: TRB	Lacquer	Intergrain Ultradeck (or equivalent) Finish: Gloss Colour: Natural	Apply 3 coats prior to fixing in place
Aluminium batten screens Code: ABS1	Powdercoat	Dulux (or equivalent) Finish: Satin Colour: Citi Silver Pearl (or equivalent)	Duratec (or equivalent)

Table 10: Internal finishes schedule – Basin area

Embellishment/Code	Product	Supplier	Other
Floor tiles Code: CT	Tiles	Everstone Durastone By Tile Solutions (or equivalent) Finish: R10 Colour: Steel Grey (or equivalent)	300 mm x 300 mm, grout to match
Floor tiles Code: SK-CT	Skirting tiles	Everstone Durastone By Tile Solutions (or equivalent) Finish: R10 Colour: Steel Grey Matt (or equivalent)	100 mm x 300 mm, Cove, grout to match
Walls (Partition) Code: CW	2 Pak Polyurethane Paint	Dulux (or equivalent) Finish: Satin Stipple Colour: Fair Bianca Half SW1F1 (or equivalent)	Durebild STE and Weathermax HBR Anti-Graffiti (or equivalent)
Doors (Partition) Code: CD	2 Pak Polyurethane Paint	Dulux (or equivalent) Finish: Satin Stipple Colour: Bushland Grey S13A5 (or equivalent)	Durebild STE and Weathermax HBR Anti-Graffiti (or equivalent)
Beams/rafters Code: TRB	Lacquer	Intergrain Ultradeck (or equivalent) Finish: Gloss Colour: Natural	Apply 3 coats prior to fixing in place
Aluminium batten screens Code: ABS1	Powdercoat	Dulux (or equivalent) Finish: Satin Colour: Citi Silver Pearl (or equivalent)	Duratec (or equivalent)
Aluminium batten screens Code: ABS2	Powdercoat	Dulux (or equivalent) Finish: Satin Colour: Charcoal (or equivalent)	Duratec (or equivalent)
Aluminium Fixed Louvres Screens Code: ALS	Powdercoat	Dulux (or equivalent) Finish: Satin Colour: Citi Silver Pearl (or equivalent)	Duratec (or equivalent)
