Embellishments should be designed/selected and installed as follows:
Fit for purpose, appropriately positioned and accessible.
Durable, robust and safe (suitable for corrosive environments).
Vandal resistant with parts that are easily replaceable.
Easy to maintain (with appropriate warranty and workmanship).
Comply with relevant standards, legislation, corporate documents and approvals
Planning, design and positioning
Protect existing environment by an integrated design approach
Factor climate change risks into planning and delivery of infrastructure
Refer to 1974 erosion scarp zone historical data together with current data when designing infrastructure in the fore dune area
Design facilities to cater for all abilities
Turtle friendly fences must be installed in beach front and fore dune areas which are potential turtle hatching sites
Marine turtle safe lighting (where required) – Darkness is the best lighting management option at turtle nesting beaches. All designs within 100 meters of a nesting beach must follow the four guiding principles to minimise light impacts on turtles - ‘keep it off, keep it shielded, keep it low, keep it long’.
Beach infrastructure requirements

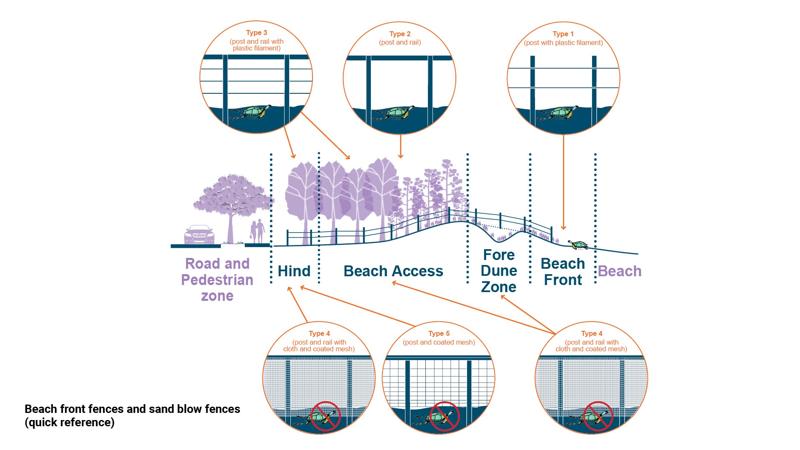

Beach fences
Beach Front (type 1) – dune and vegetation protection
Fore Dune (type 4) – sand blow area control
Beach Access (type 2, 3 and 4) – dune and vegetation protection, directs pedestrian movement
Hind Fence (type 3, 4 and 5) – sand catching
Lifeguard towers
Council (Property Management) standard design
Signs
beach access signs are numbered north to south
other areas - consolidate multiple sign messages to avoid clutter.
Materials
Select materials suitable for an exposed marine environment
Marine grade stainless steel for a high level finish at high profile/high use sites
Aluminium for formal to semi formal sites
Beach fences – do not use galvanised wire for any new beach fence.
Note: Further guidance and clarification of the content on this page, can be found in the relevant sections of this information sheet.
