Play spaces

Technical drawings
Drawings detailing technical guidance for embellishment design
Table xxxx: Play spaces edging - Technical drawing index
Embellishment | Description/drawing code | Product details/supplier | Other |

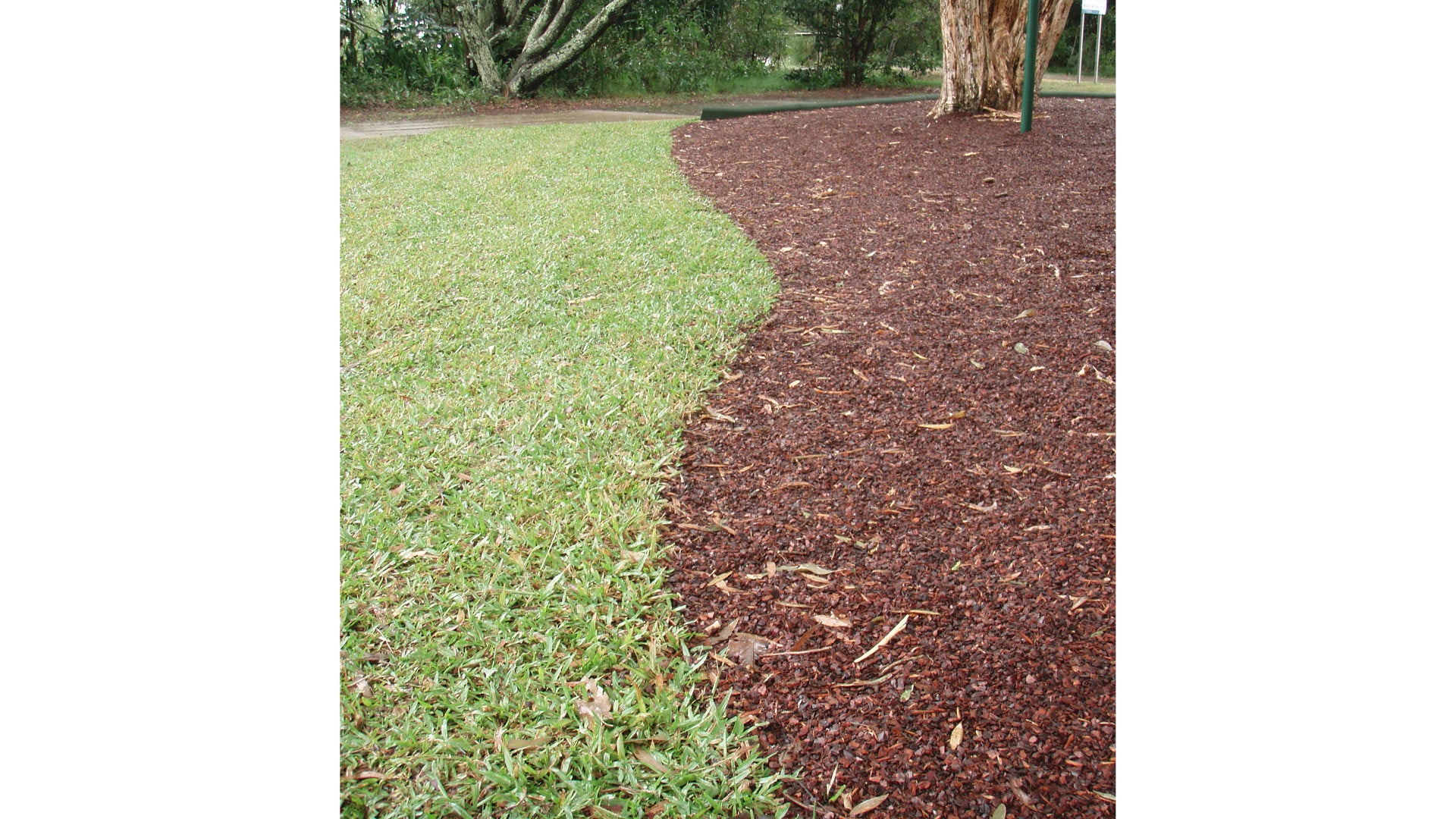

![]() | Spade cut edge (with surfacing) | Custom supplier | Not preferred, however may be used in tree sensitive areas when directed by project arborist |

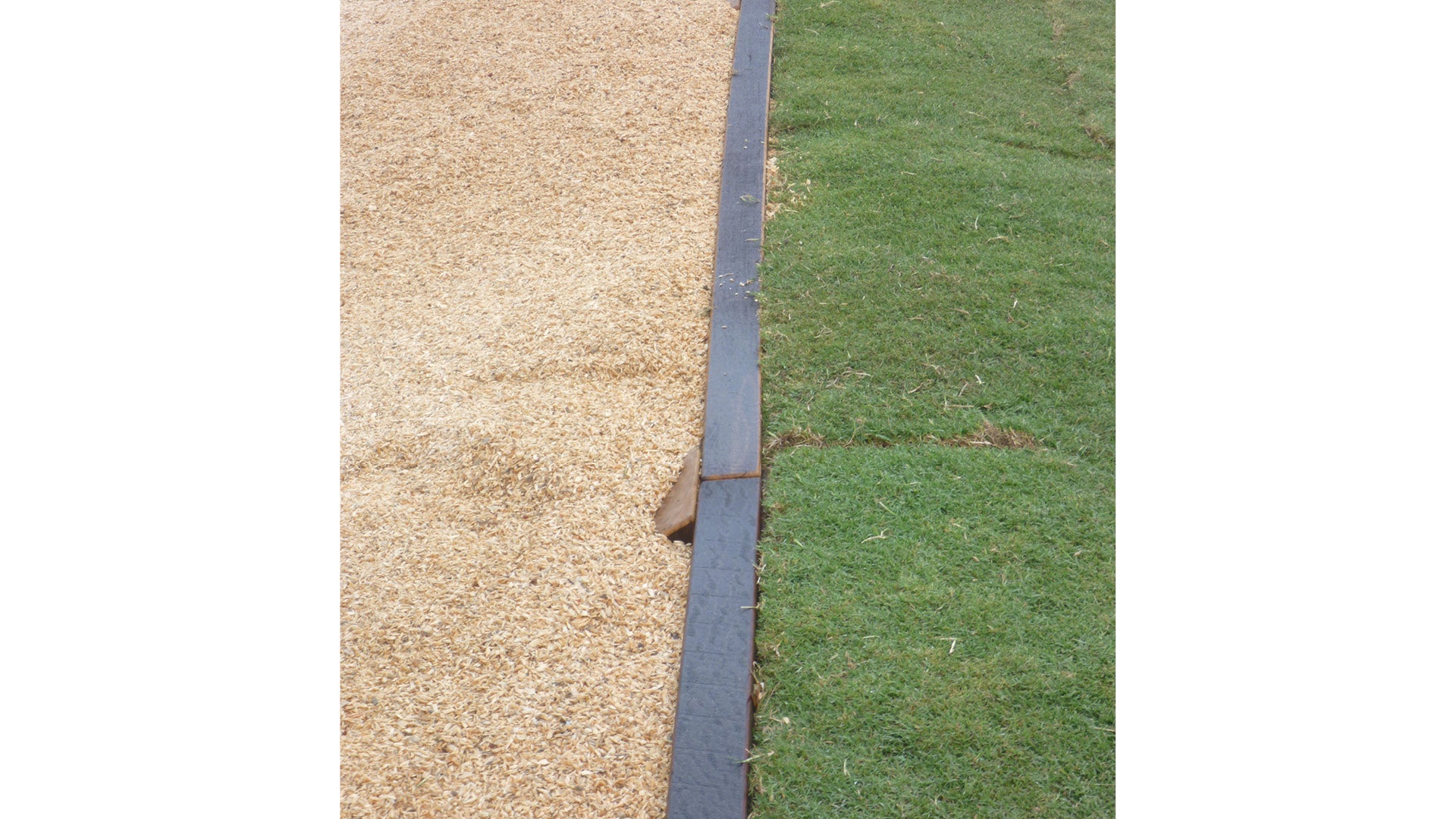

![]() | Timber edge (with surfacing) | Custom supplier | Not preferred |

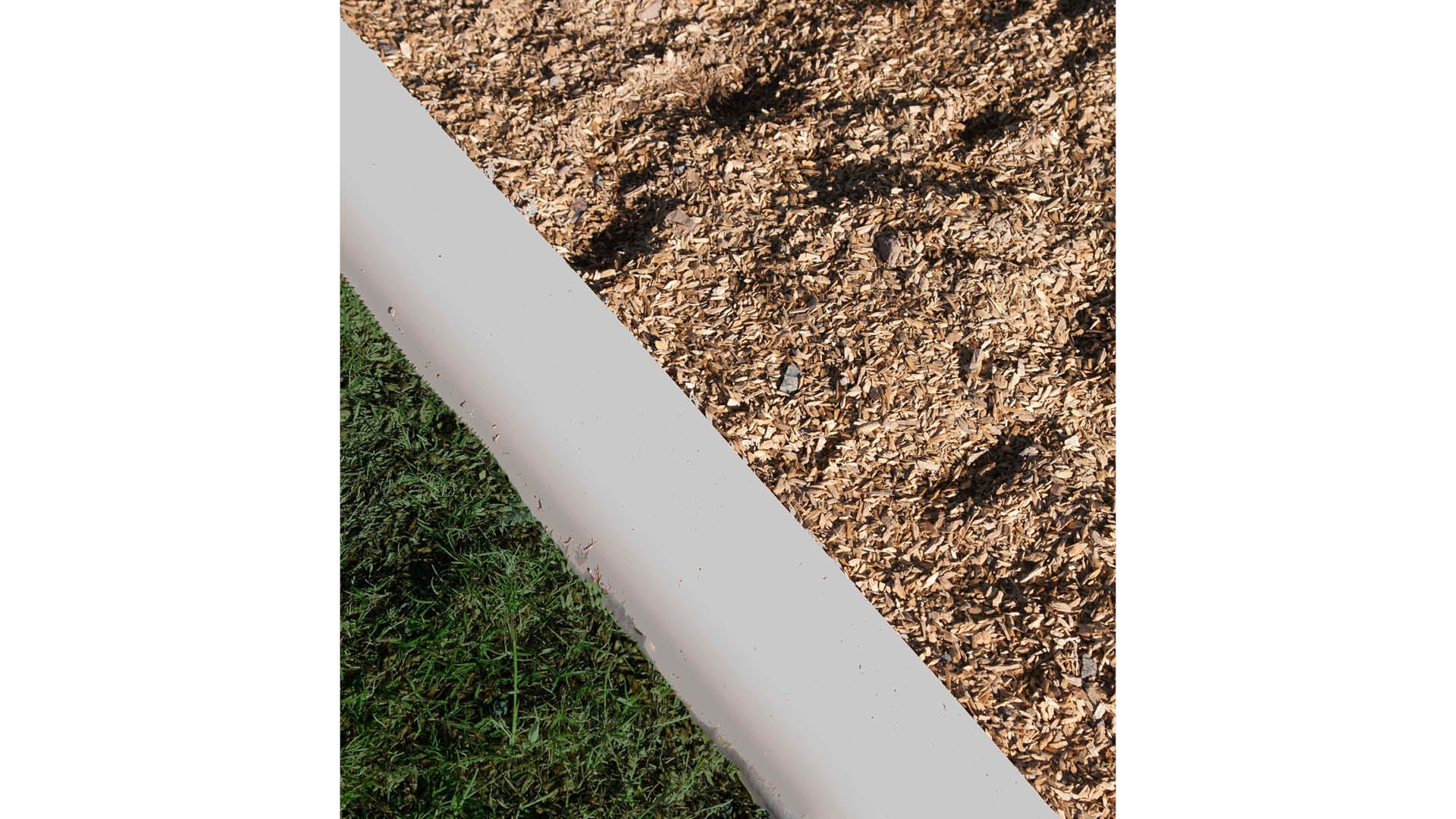

![]() | Concrete edge (with surfacing) | Custom supplier | Concrete colour to be determined by designer (uncoloured preferred) |
Table xxx: Play spaces surfacing - Technical drawing index
Embellishment | Description/drawing code | Product details/supplier | Other |

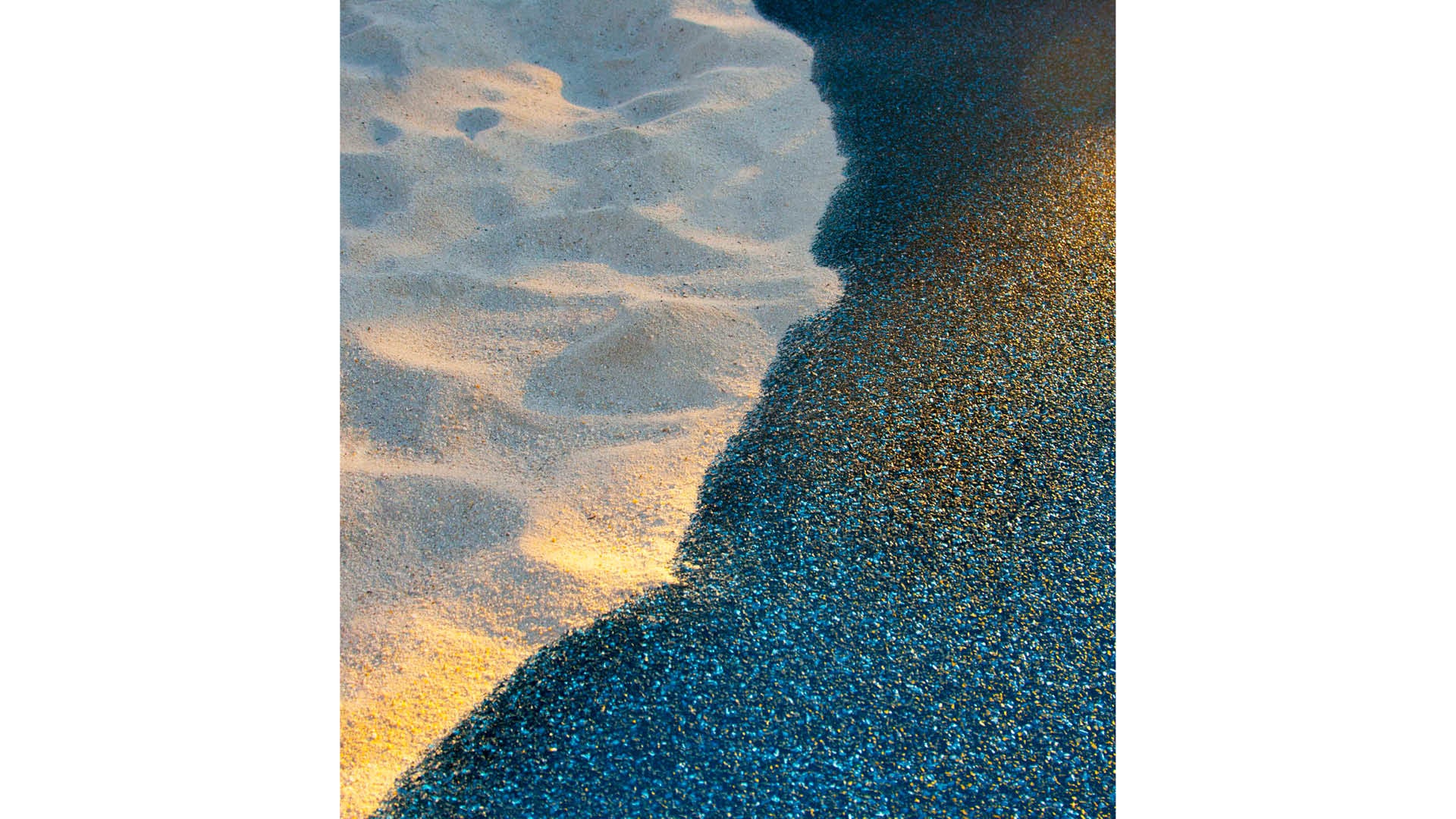

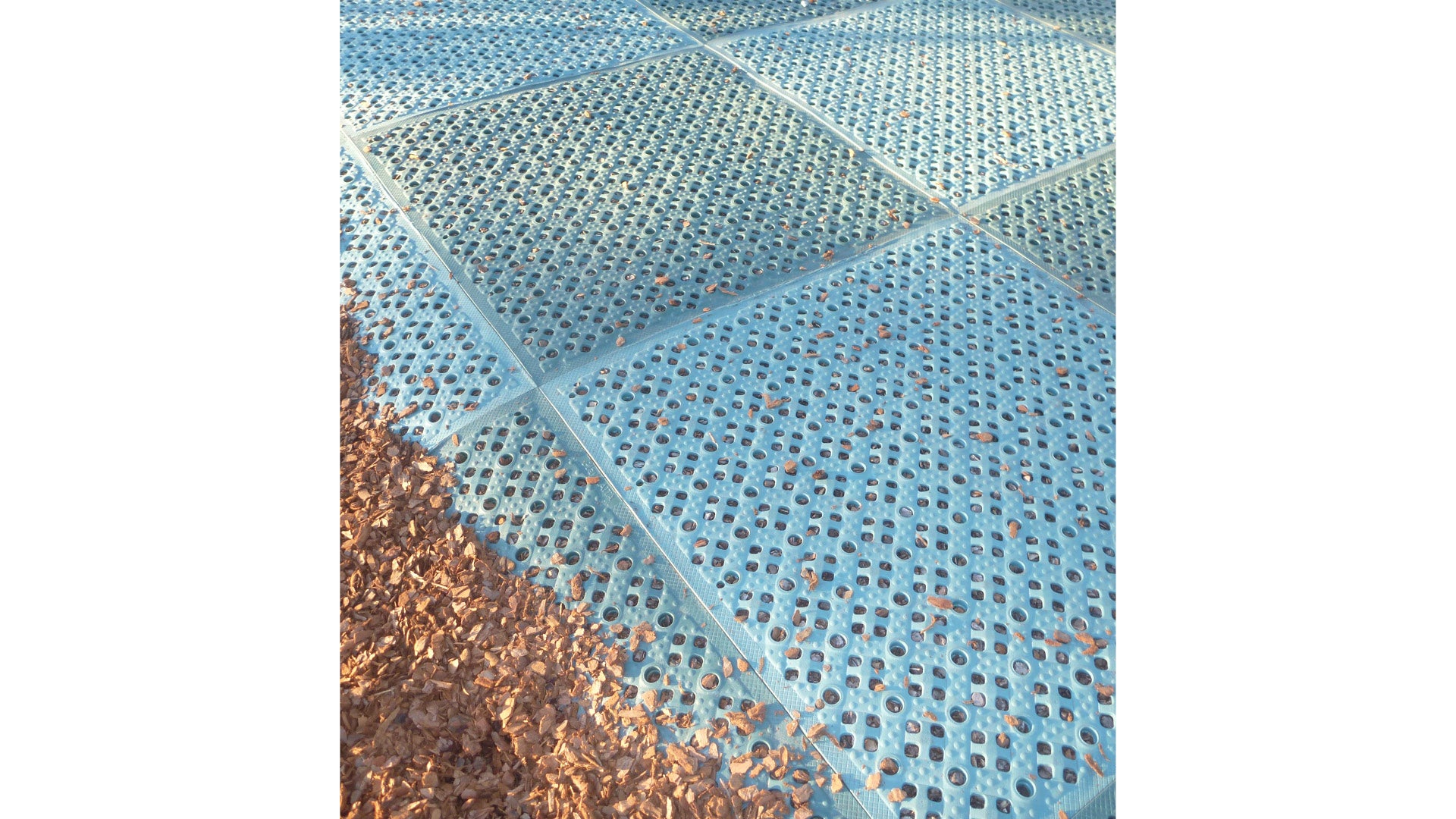

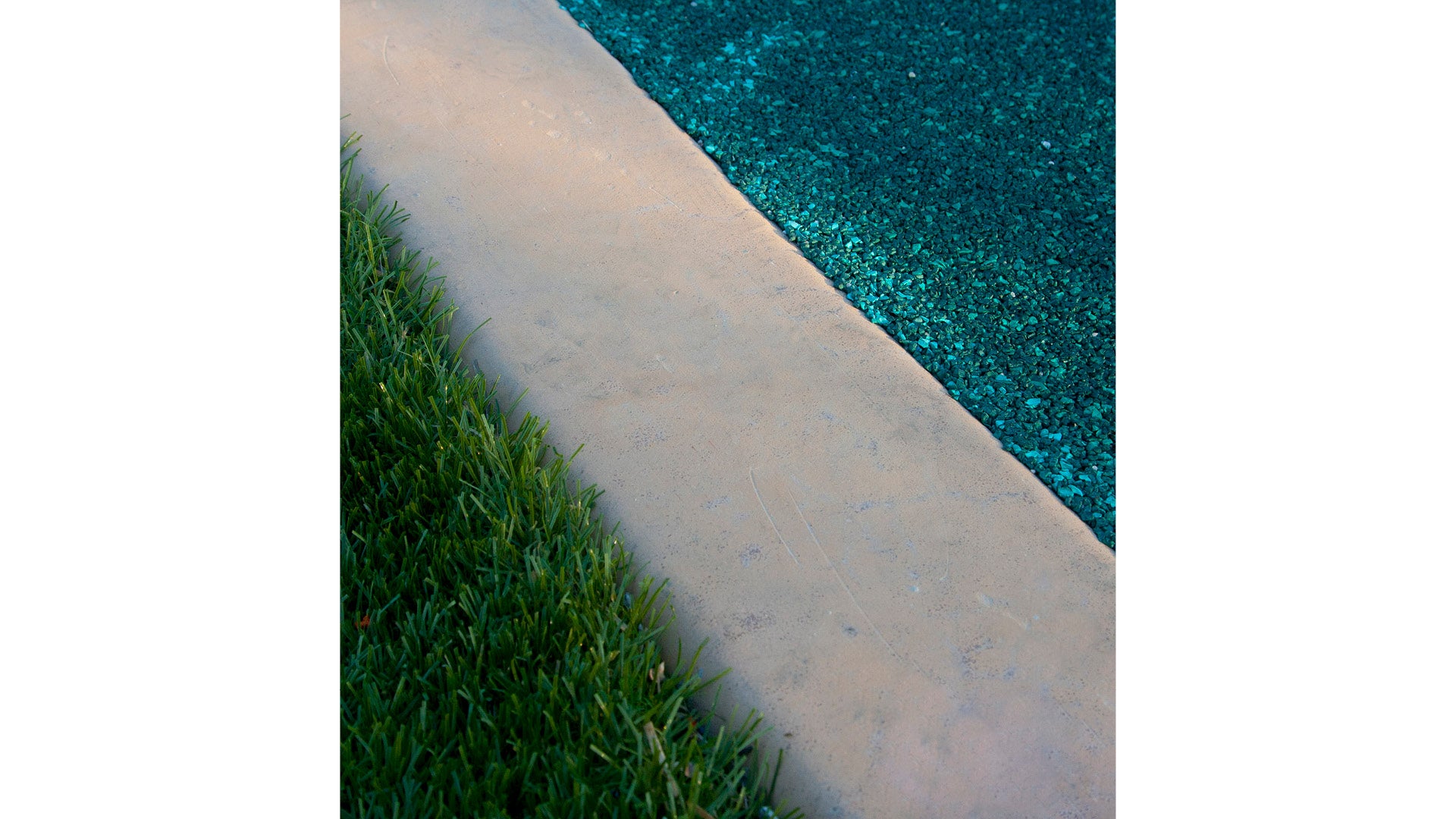

![]() ![]() ![]() | Play space surfacing with concrete edge | Unitary surfacing:
Loose-fill surfacing:
Concrete edging:
| Unitary surfacing:
Loose-fill surfacing:
|
This component is currently in development
