Embellishments should be designed/selected and installed as follows:
Fit for purpose, appropriately positioned and accessible.
Durable, robust and safe (suitable for corrosive environments).
Vandal resistant with parts that are easily replaceable.
Easy to maintain (with appropriate warranty and workmanship).
Comply with relevant standards, legislation, corporate documents and approvals

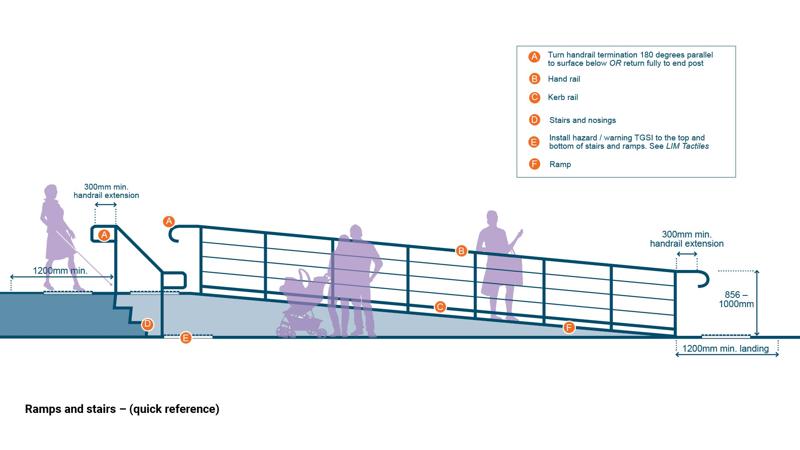

Planning, design and positioning
Ramps are preferred by people who use wheeled mobility devices
Stairs are preferred by people who are blind or have low vision
Where stairs are installed, include a ramped alternative for equal access (where possible).
Ramp requirements
A ramp is steeper than 1:20, but not steeper than 1:14
Maximum grade of 1:14 for ramps exceeding 1.9 m in length
Handrail both sides of ramps
Rails or kerbs to all ramp edges (including landings)
Bicycle ‘rub rails’ where required
Hazard Tactile Ground Surface Indicators (TGSI) to landings top and bottom of ramps and to intermediate landings if there is a break in one or more handrails
Level landings, at all changes of direction, and at top and bottom of ramps (min length 1.2 m where there is no change in direction).
Stairs requirements
Level landing area at all changes of direction and at start and finish of stairs (min length 1.2 m where there is no change in direction)
Uniform goings – dims to suit stairs distance, 350 mm preferred
Uniform rises – dims to suit stairs distance
Maximum 18 rises in a straight line, minimum 2 rises
Treads to have luminance contrast strip across full width of stair nosings
Handrails both sides of stairs, with balustrade for safety.
Handrail and balustrade – see LIM Handrails ans balustrade for further information
Finishes for slip resistance – broom finish concrete, stamped and broom finish concrete, broadcast aggregate, penetrating sealer
All walkable materials must have a suitable slip resistance factor for outdoor use
Stair nosings must be slip resistant
TGSI must be slip resistant.
Note: Further guidance and clarification of the content on this page, can be found in the relevant sections of this information sheet.
