Fences and gates

1.0Overview 2.0Location/function 3.0Summary 4.0Site planning 5.0Design - general 6.0Design - environmental reserves 7.0Design - parks and open space 8.0Design - other options 9.0Materials, fixings and finishes 10.0Positioning 11.0Equal access 12.0Standards 13.0Project management and maintenance 14.0Technical drawings

Technical drawings

Drawings detailing technical guidance for embellishment design

Specific fences and gates may be appropriate for different open space settings. Approval must be obtained from the asset owner/custodian. See LIM fences and gates for further guidance.

These fences are not suitable for providing edge protection where there is risk of injury from a fall that is greater than 1.0 m. This includes culverts, bridge crossings and retaining walls.

Table 1: Fences and gates for environmental reserves - Technical drawing index

Embellishment	Description/drawing code	Product details/supplier	Other

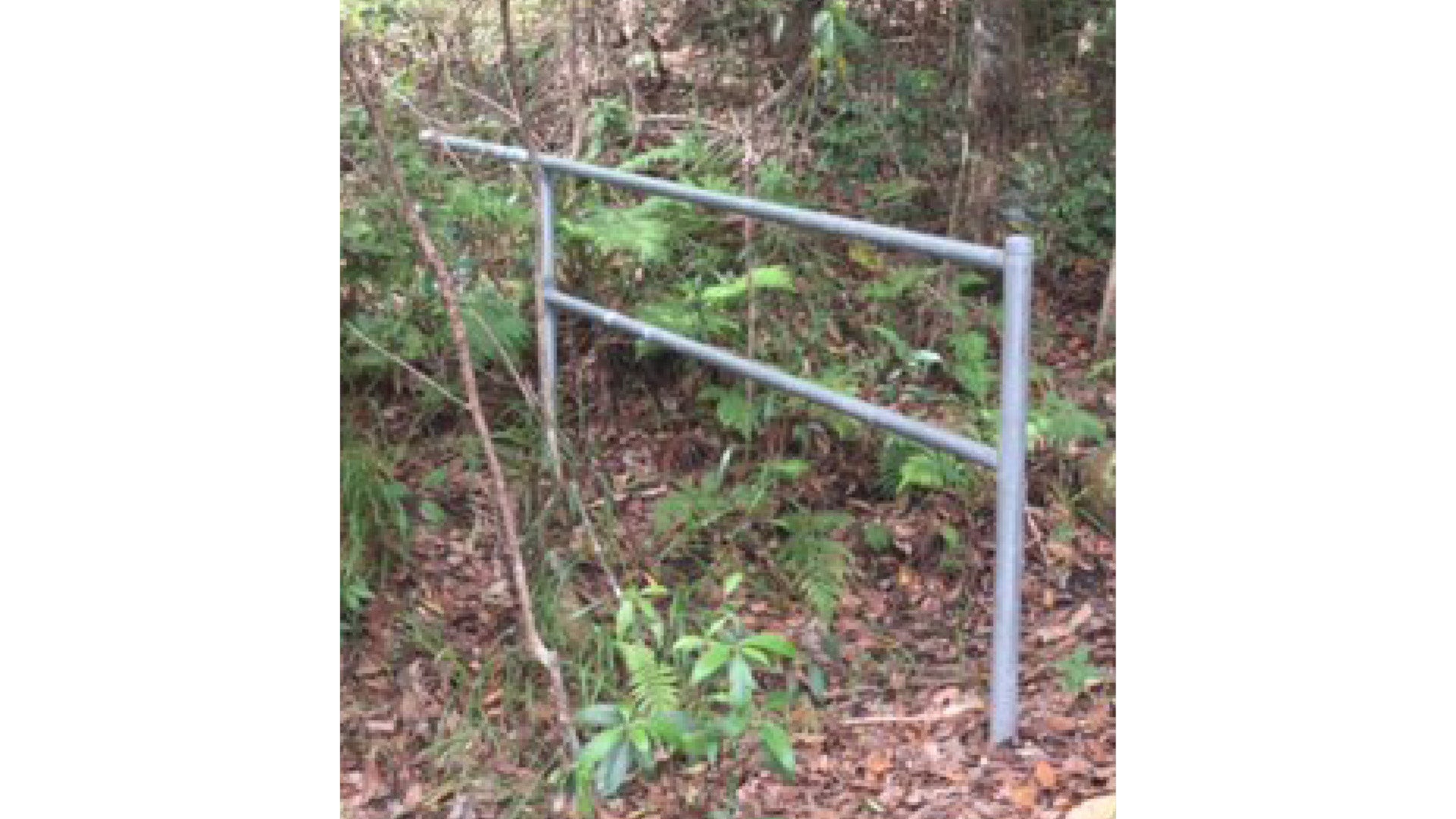

	Post and rail fence (type 1) - galvanised post and rail FG-01 (type 1)	No supplier specified.

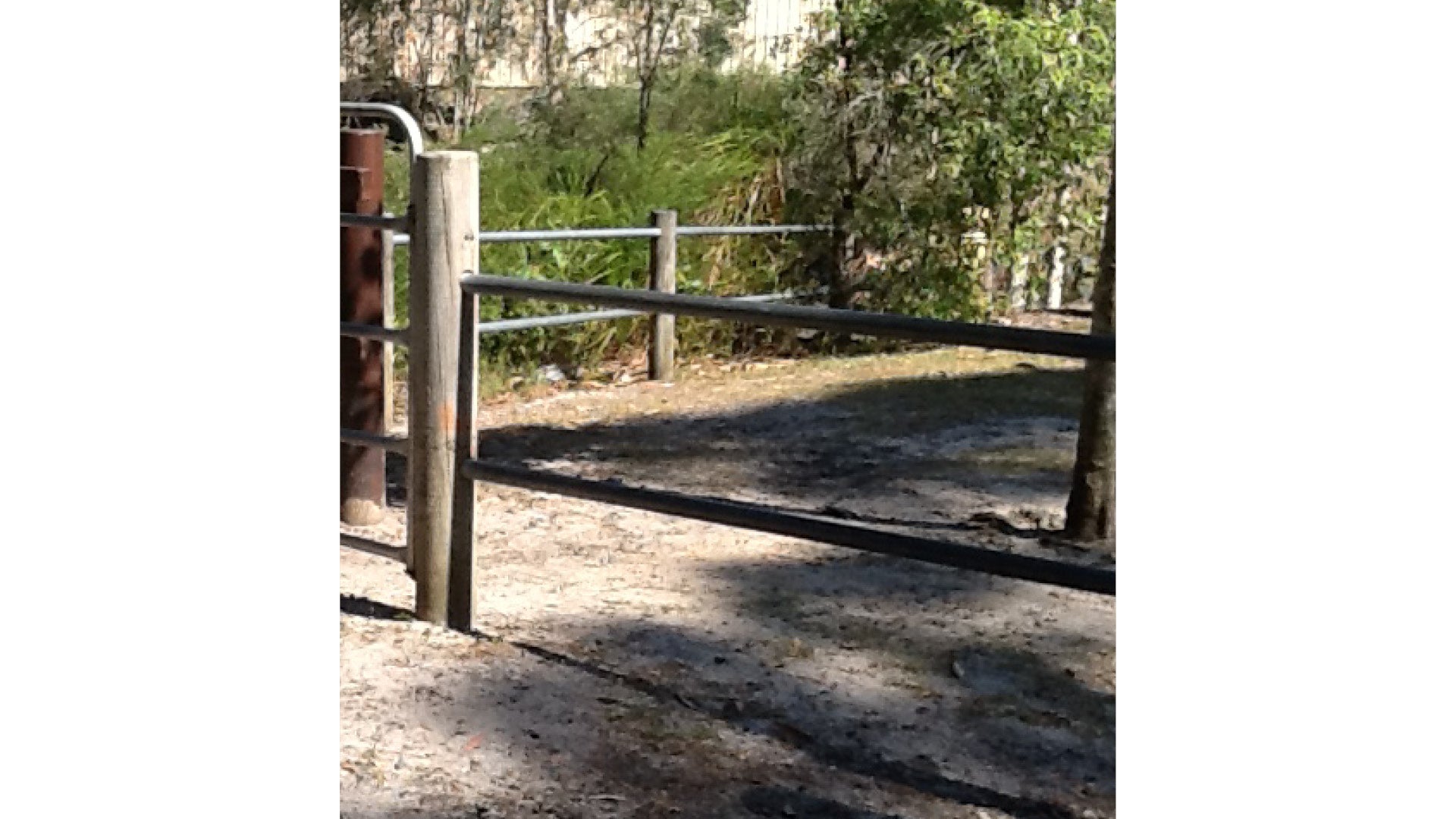

	Post and rail fence (type 2) - timber post and galvanised rail FG-01 (type 2)	No supplier specified.

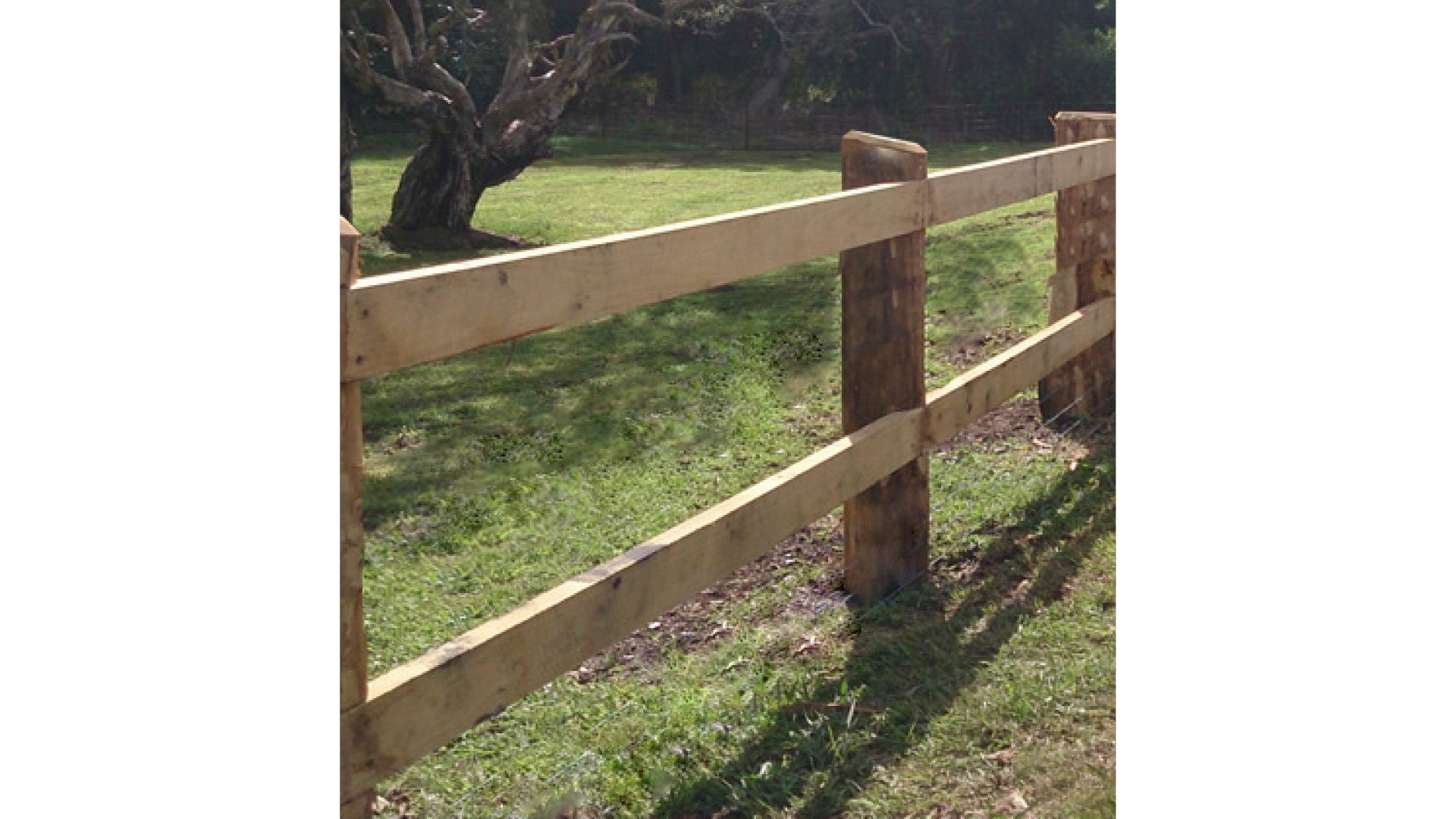

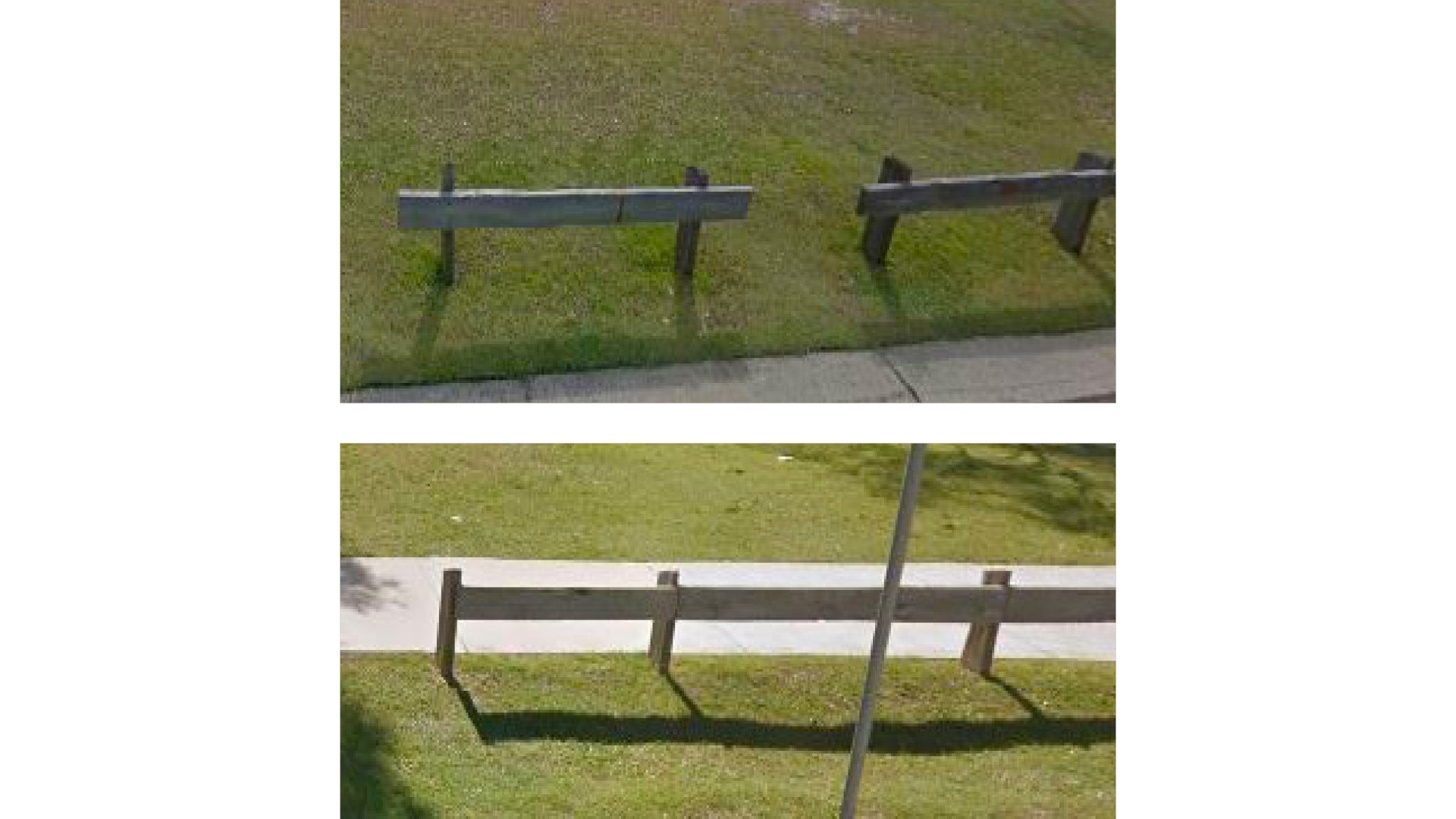

	Post and rail fence (type 3) - timber post and rail FG-01 (type 3)	No supplier specified.

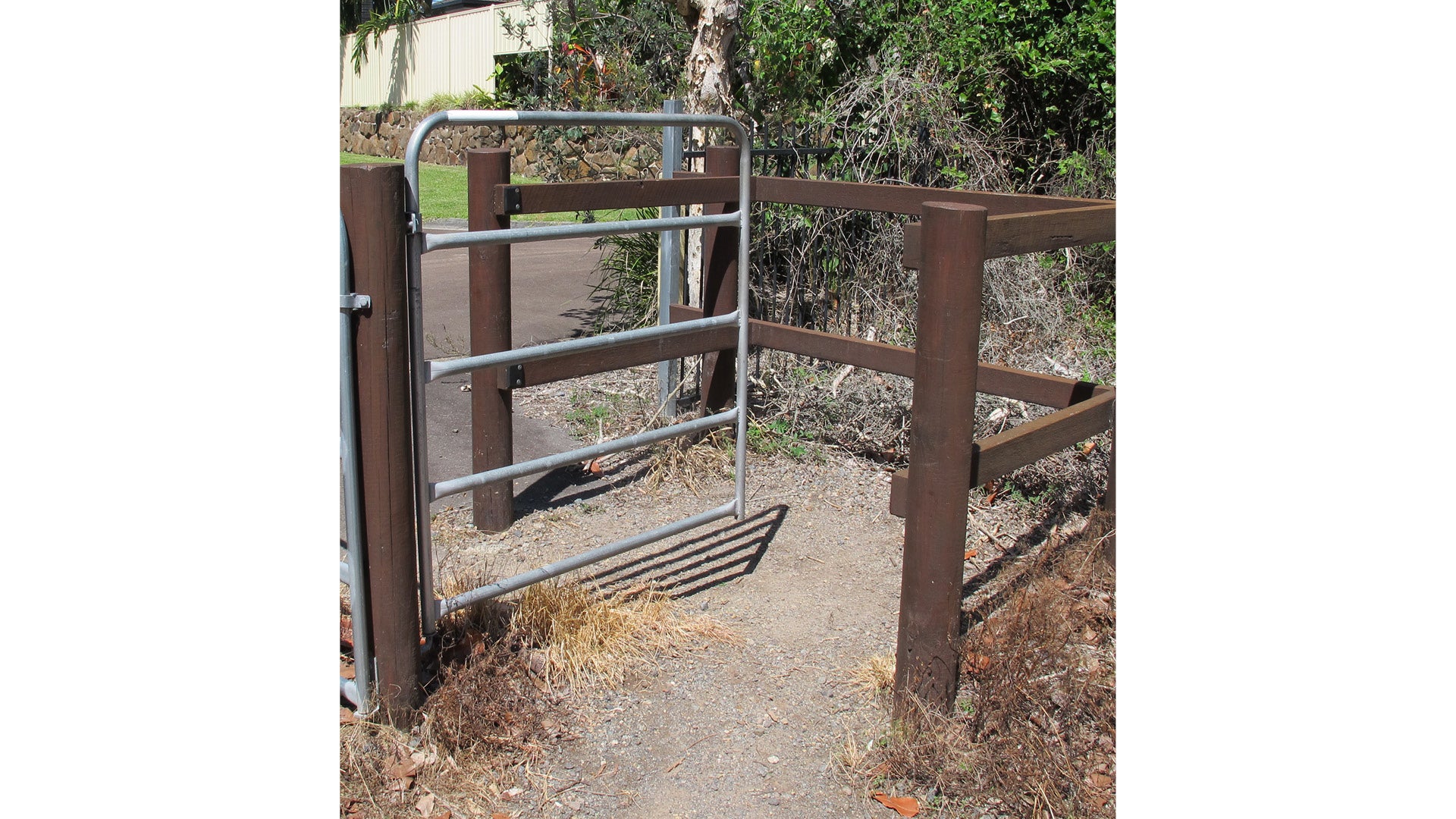

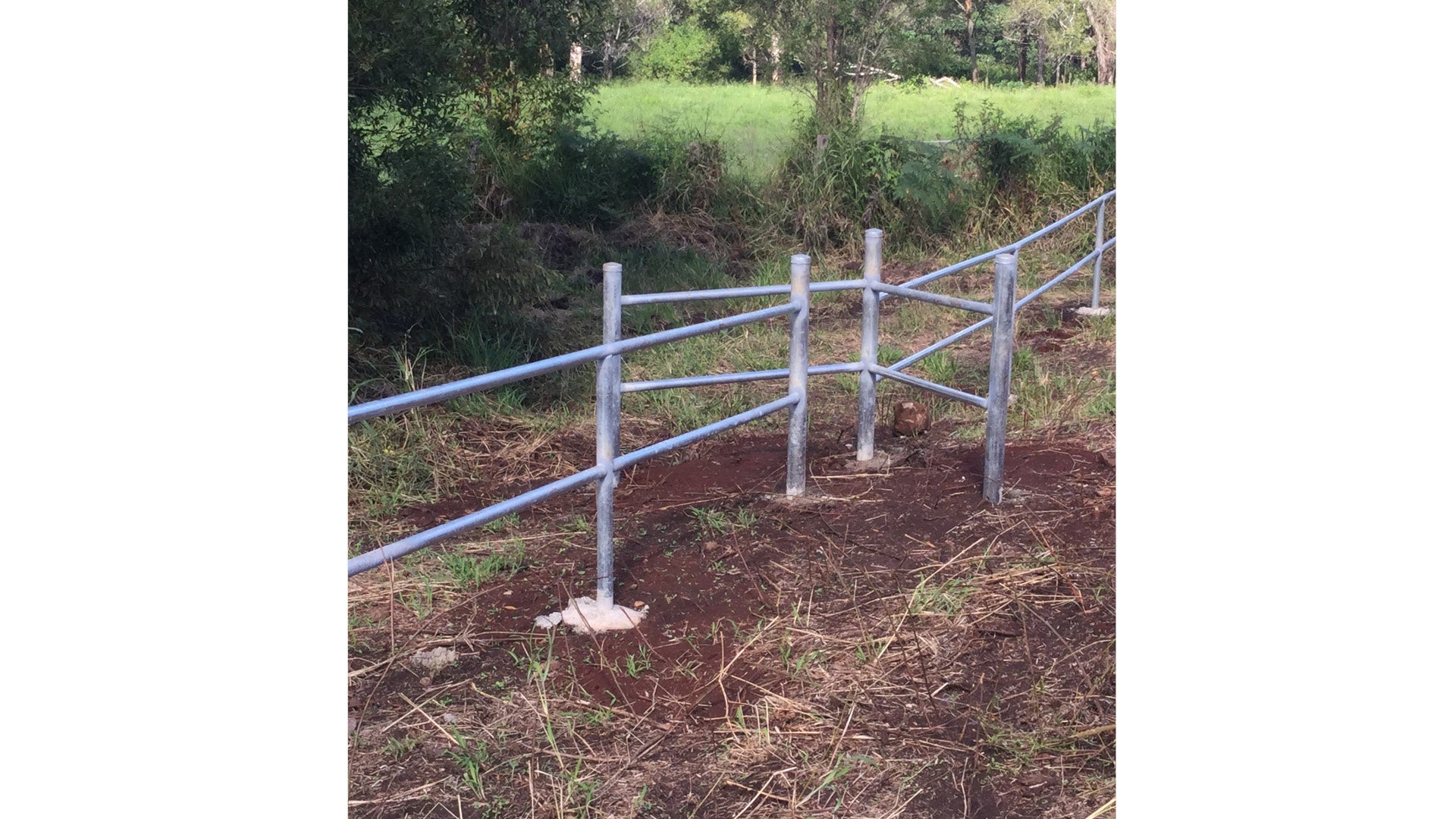

	Chicane gates (type 1) - galvanised post and rail FG-02 (type 1)	No supplier specified.

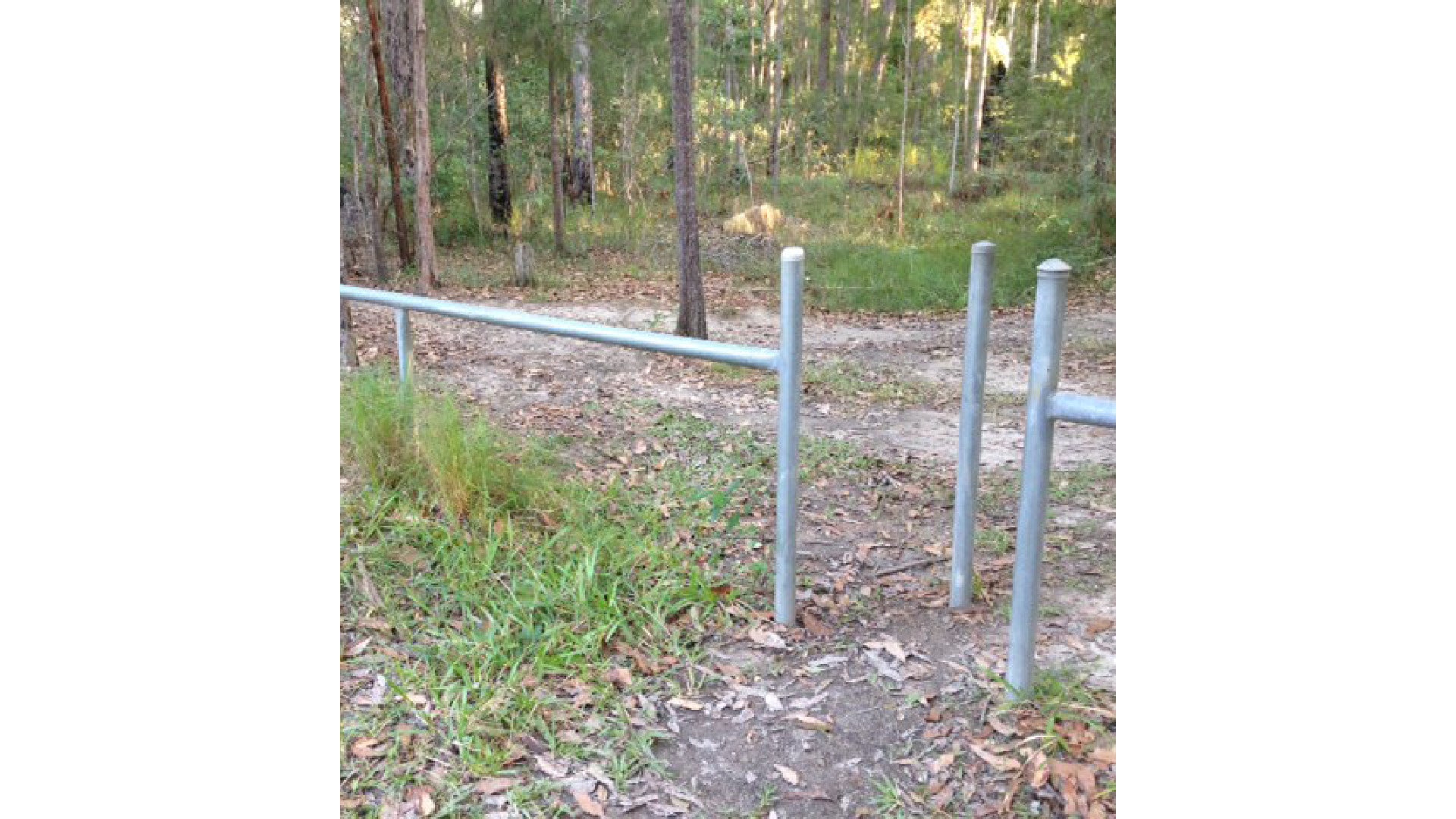

	Chicane gates (type 2) - galvanised posts FG-02 (type 2)	No supplier specified.
	Chicane gates (type 3) - timber post and rail FG-02 (type 3)	No supplier specified.

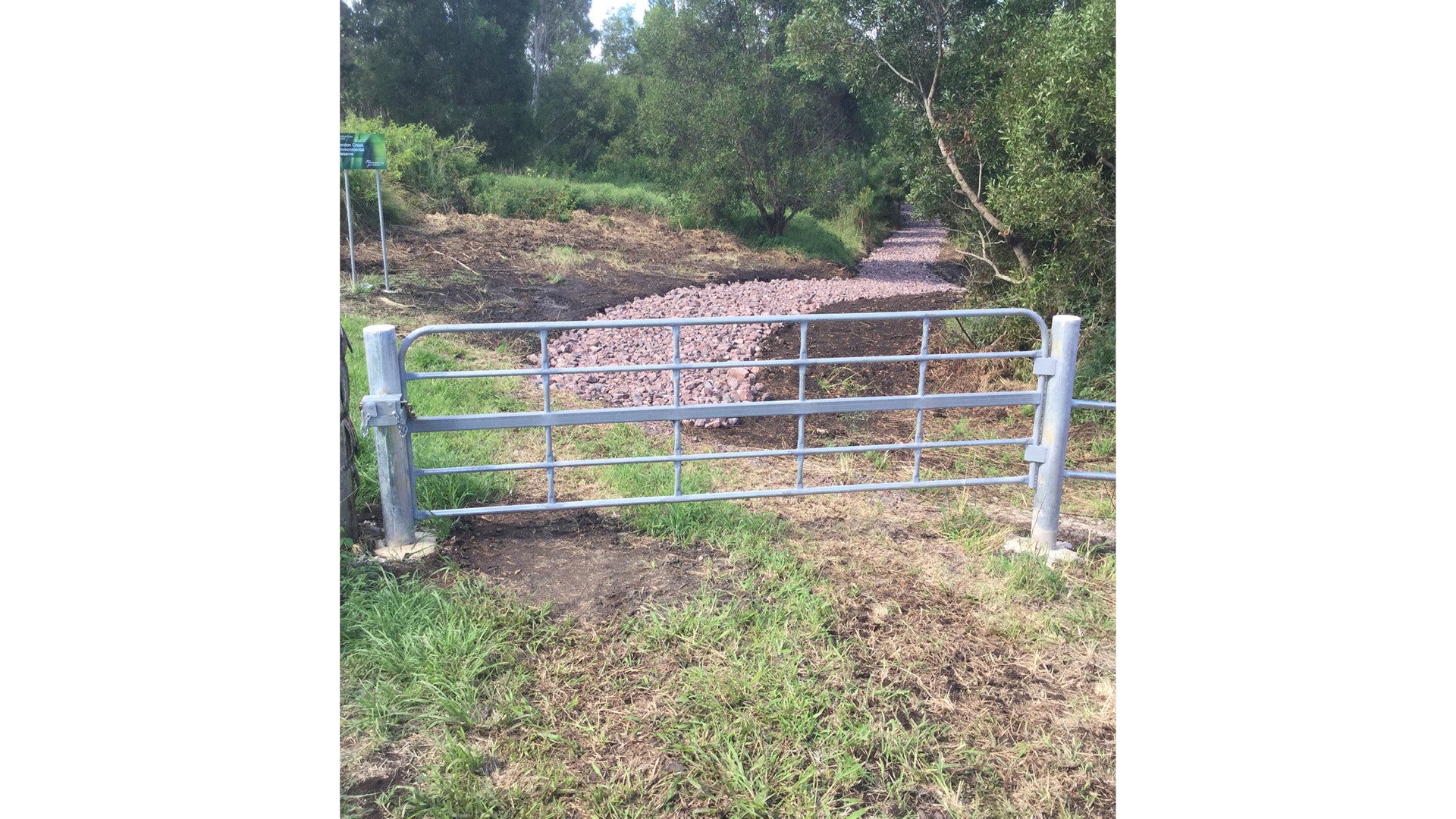

	Vehicle gate - super heavy duty - galvanised post and rail FG03 (set)	Ford Brothers Fencing (or equivalent) security gate, medium duty.	Security: standard double lock box (optional four lock box).

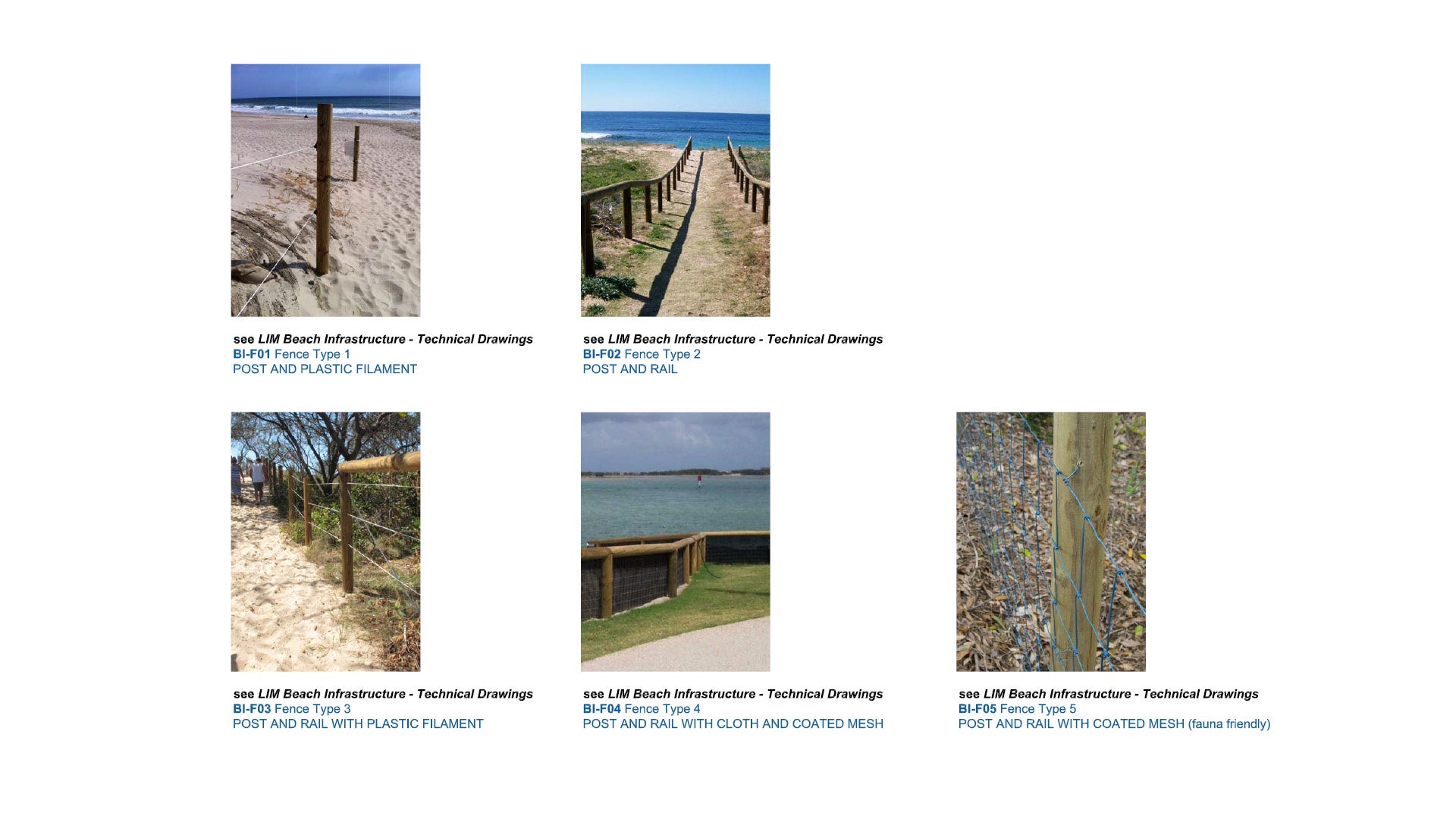

	Beach access and habitat protection fences FG04 (types 1-5)	No supplier specified.

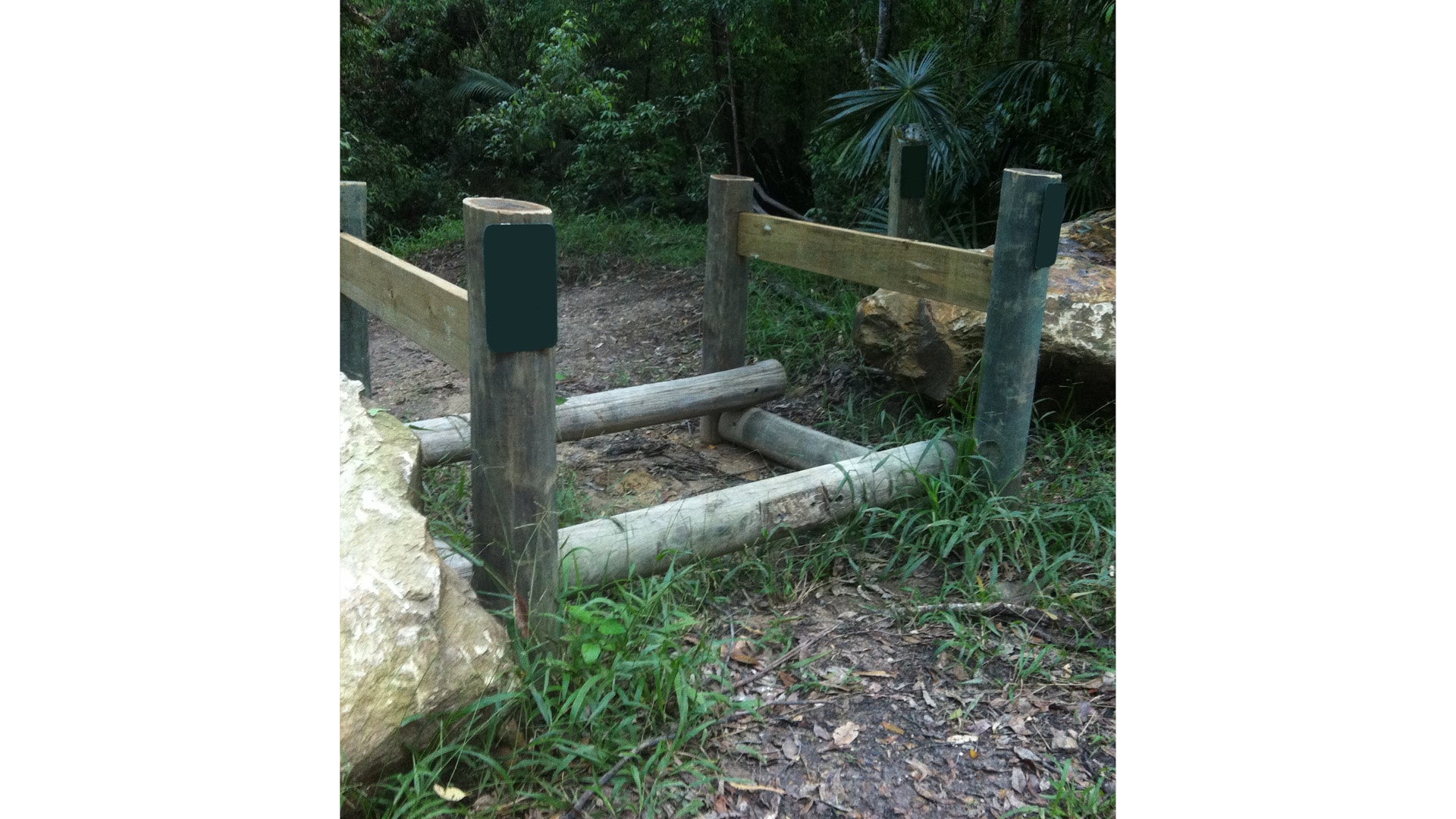

	Horse step over (type 1) - timber post and step over FG05 (type 1)	No supplier specified.

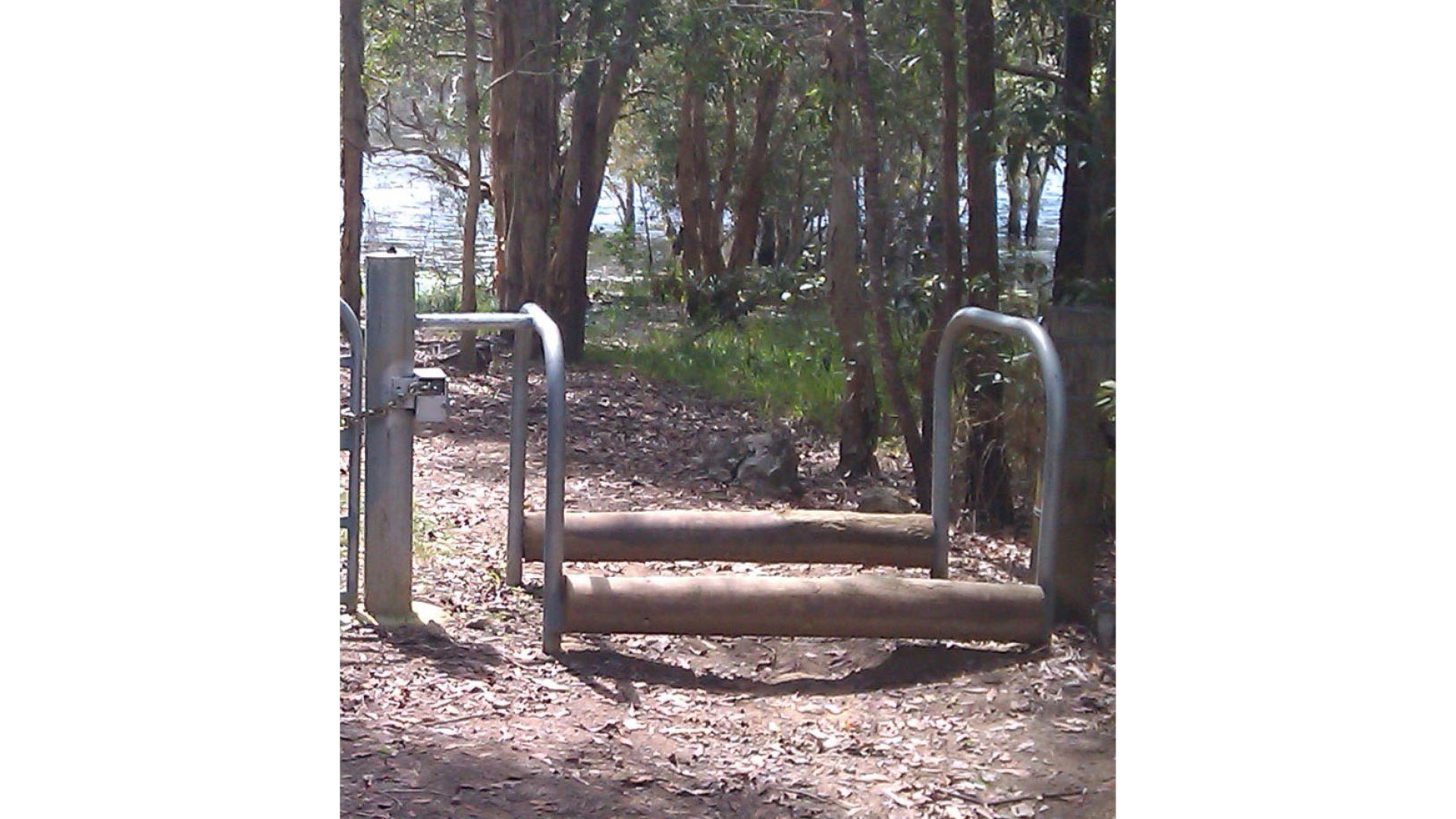

	Horse step over (type 2) - galvanised post and timber step over FG05 (type 2)	No supplier specified.

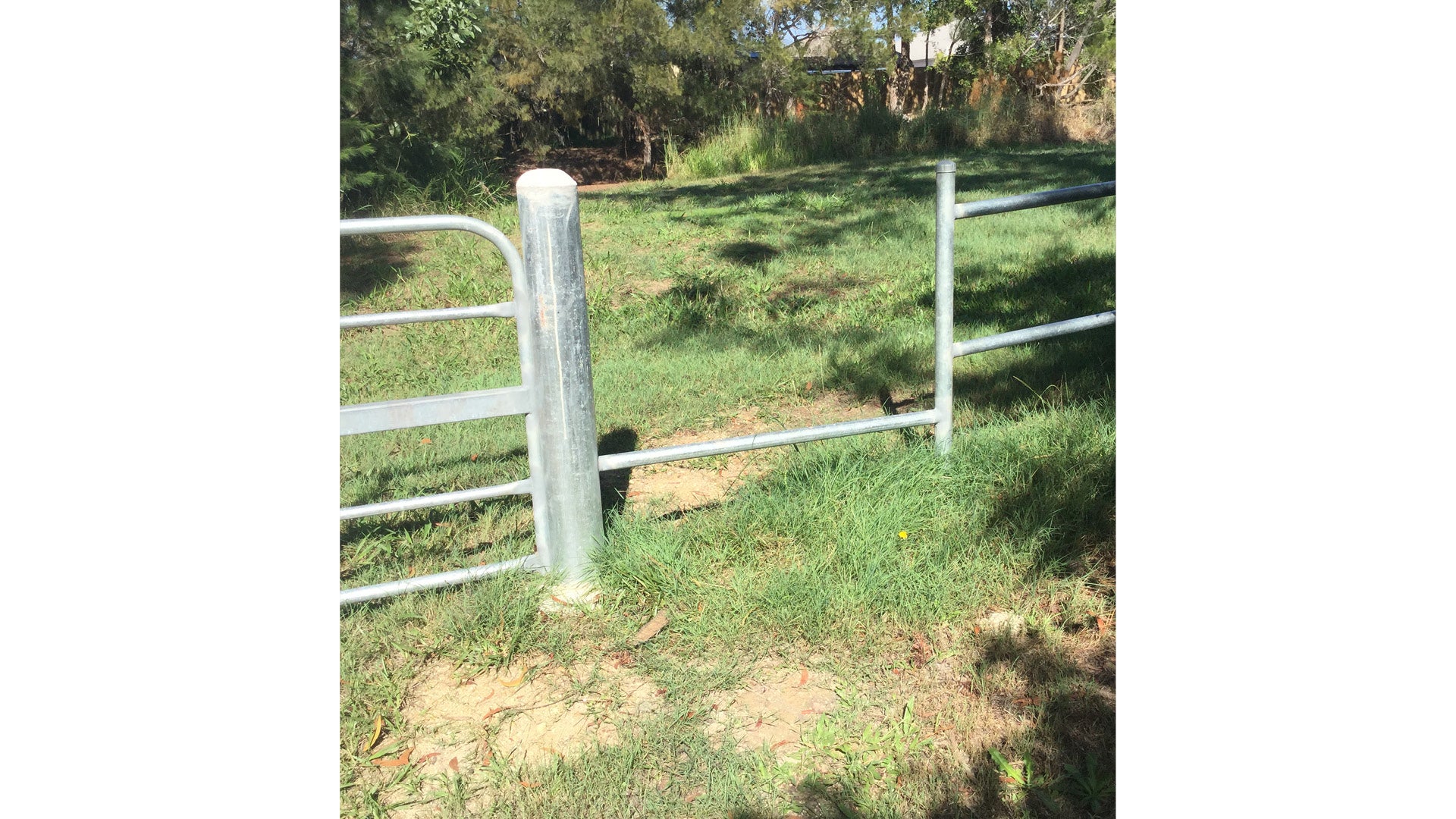

	Horse step over (type 3) - galvanised post and step over FG05 (type 3)	No supplier specified.

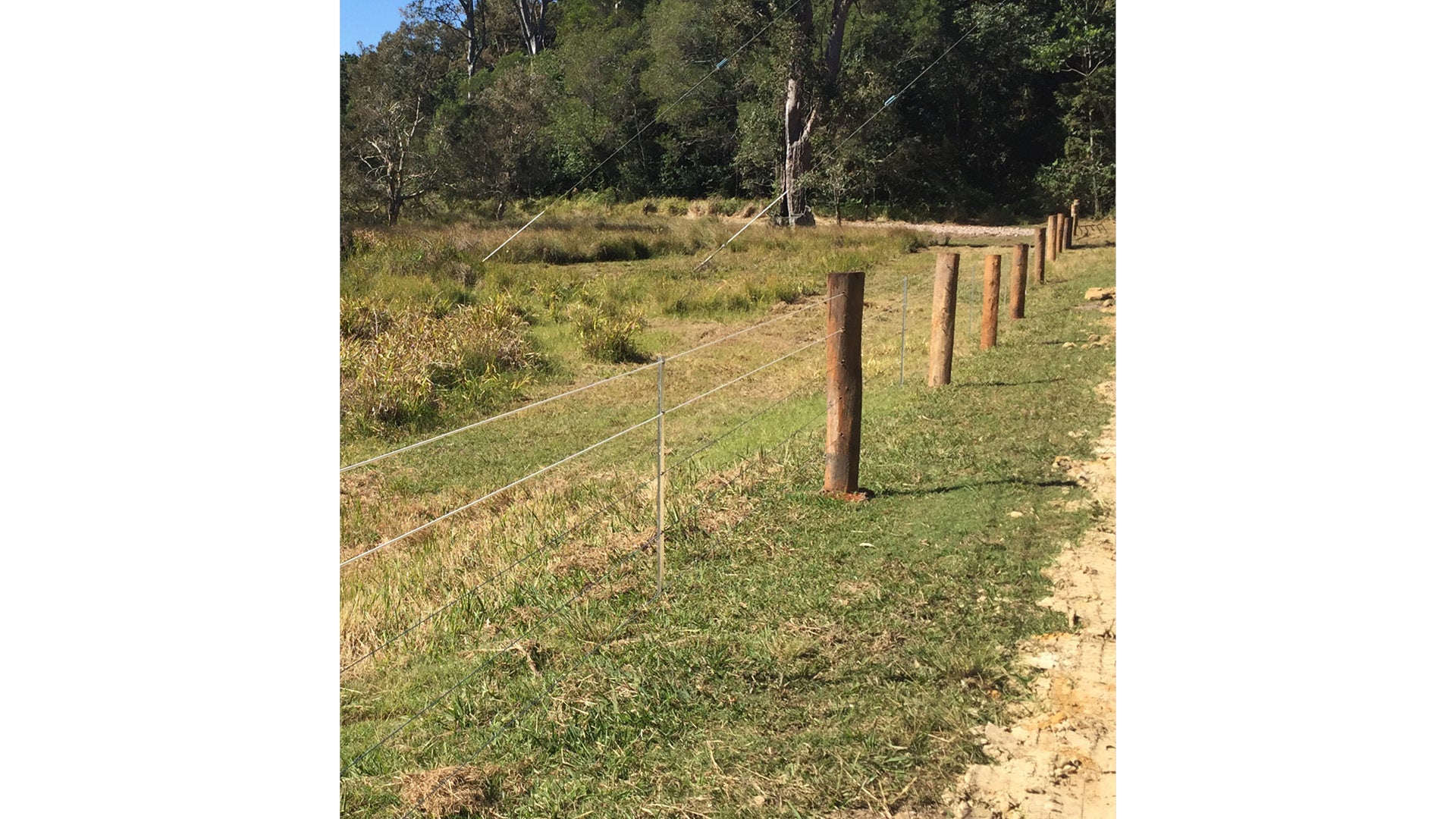

	Fauna friendly fence (type 1) - galvanised post and chain mesh wire FG-06 (type 1)	No supplier specified.
	Fauna friendly fence (type 2) - timber post with wire FG-06 (type 2)	No supplier specified.

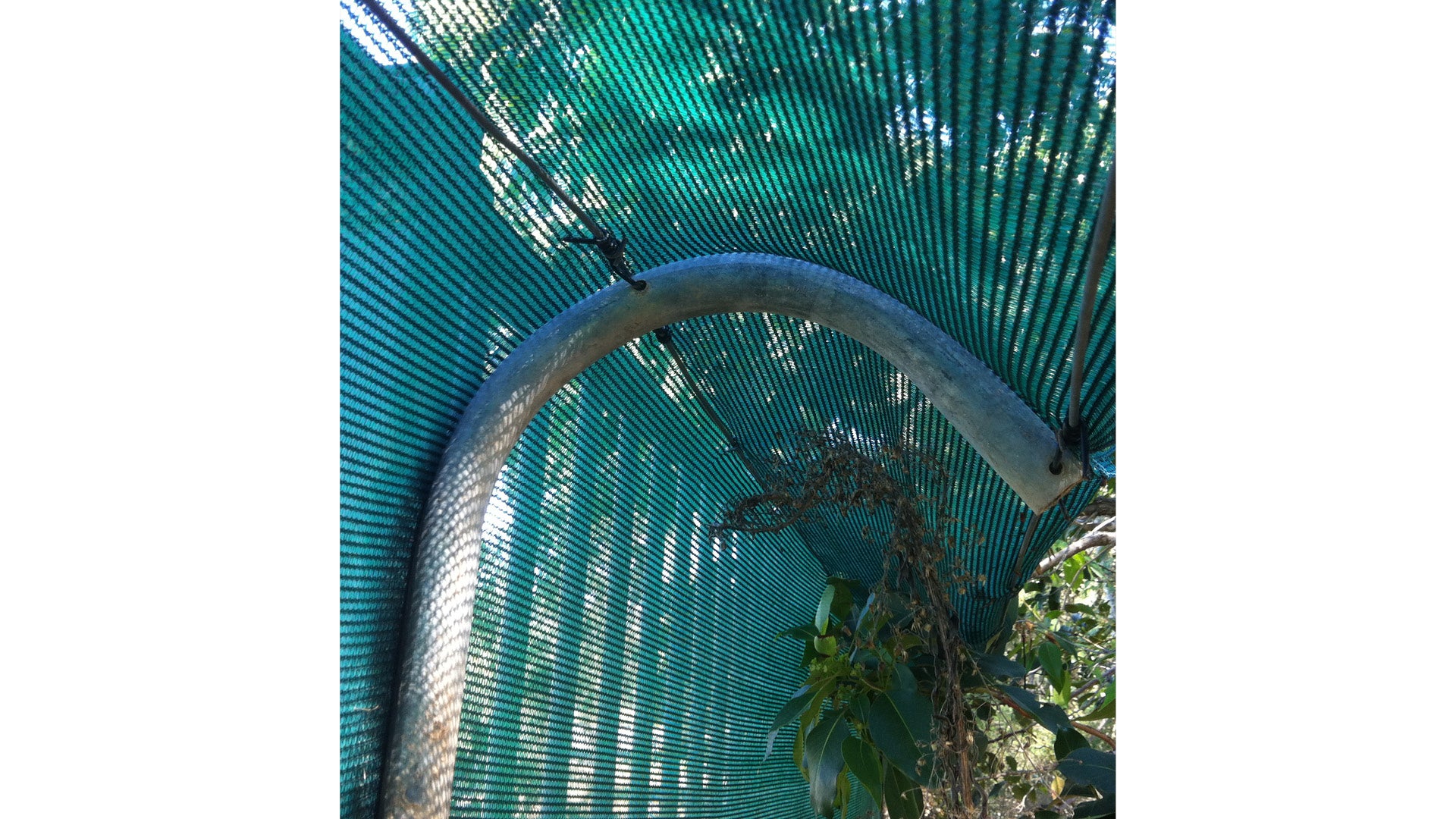

	Fauna exclusion fence - frog exclusion fence FG-07 (1 of 1)	No supplier specified.	Fixed to existing fence or installed with timber posts.
	Fauna exclusion fence - koala exclusion fence FG-08 (set)	No supplier specified.	Chain wire: to be black or green.

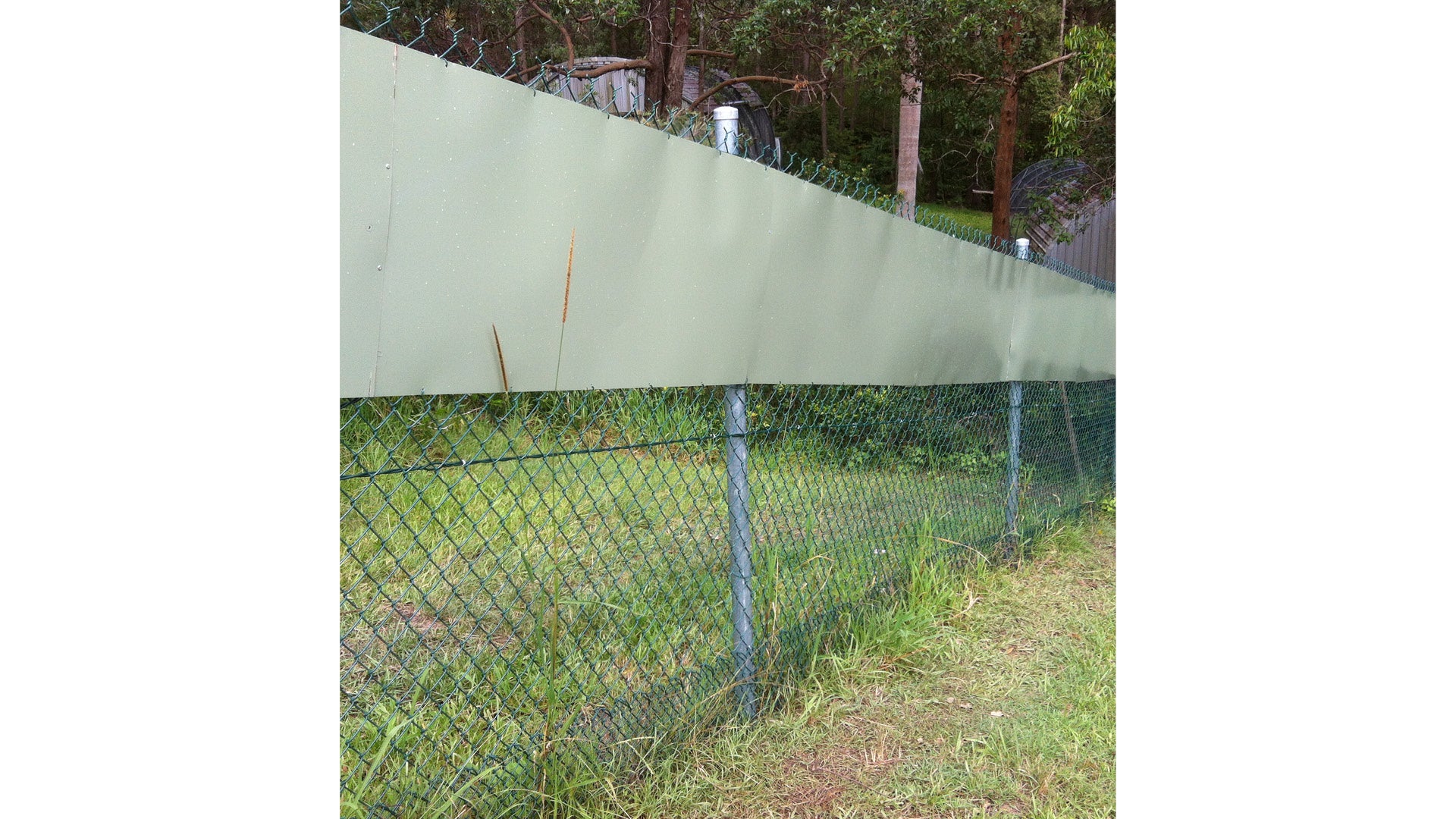

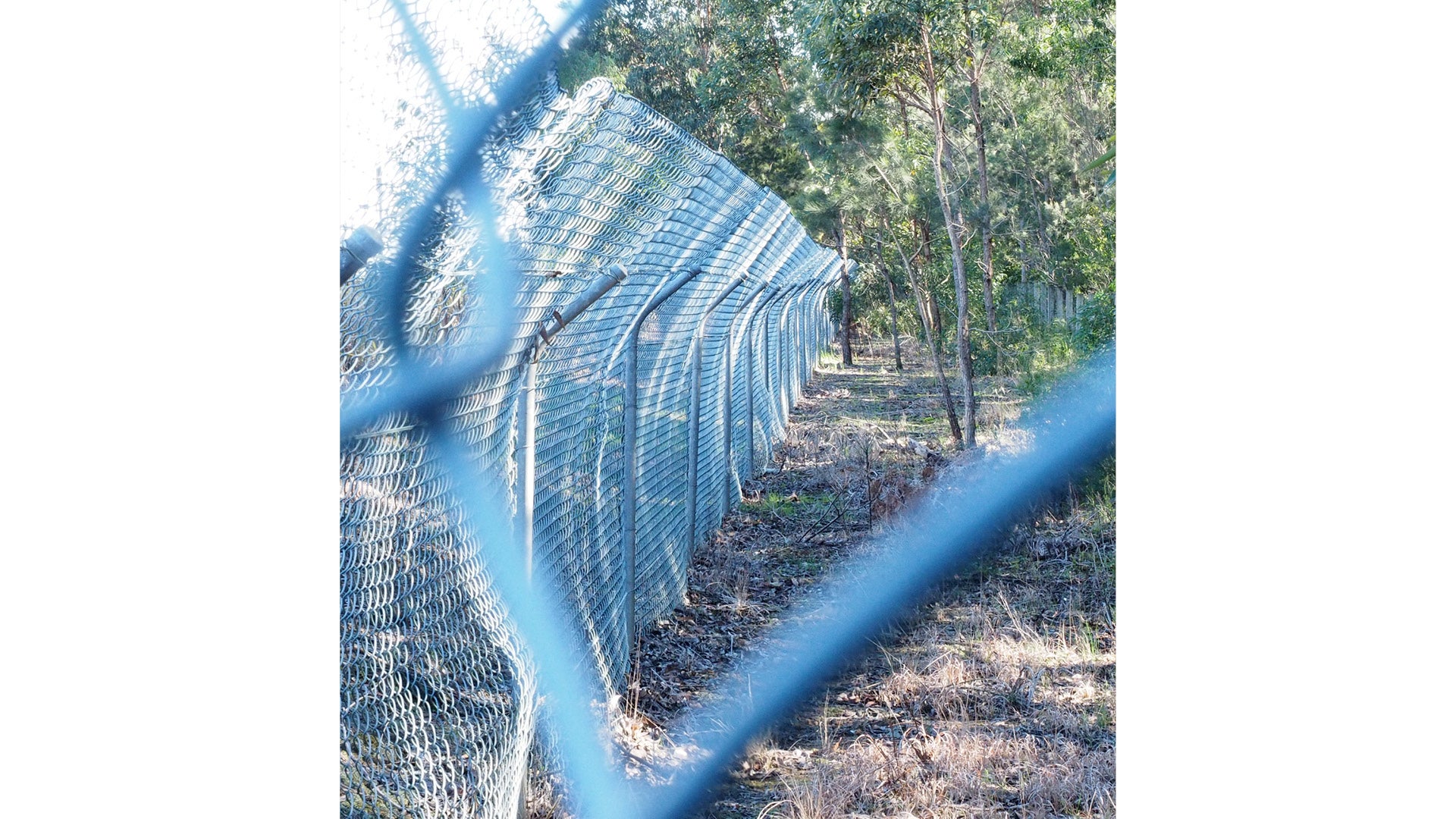

	Fauna exclusion fence - kangaroo exclusion fence - 'floppy top' panel FG-09 (1 of 1)	No supplier specified.	Chain wire: to be black or green.

Table 2: Fences and gates for parks and open space - Technical drawing index

Embellishment	Description/drawing code	Product details/supplier	Other

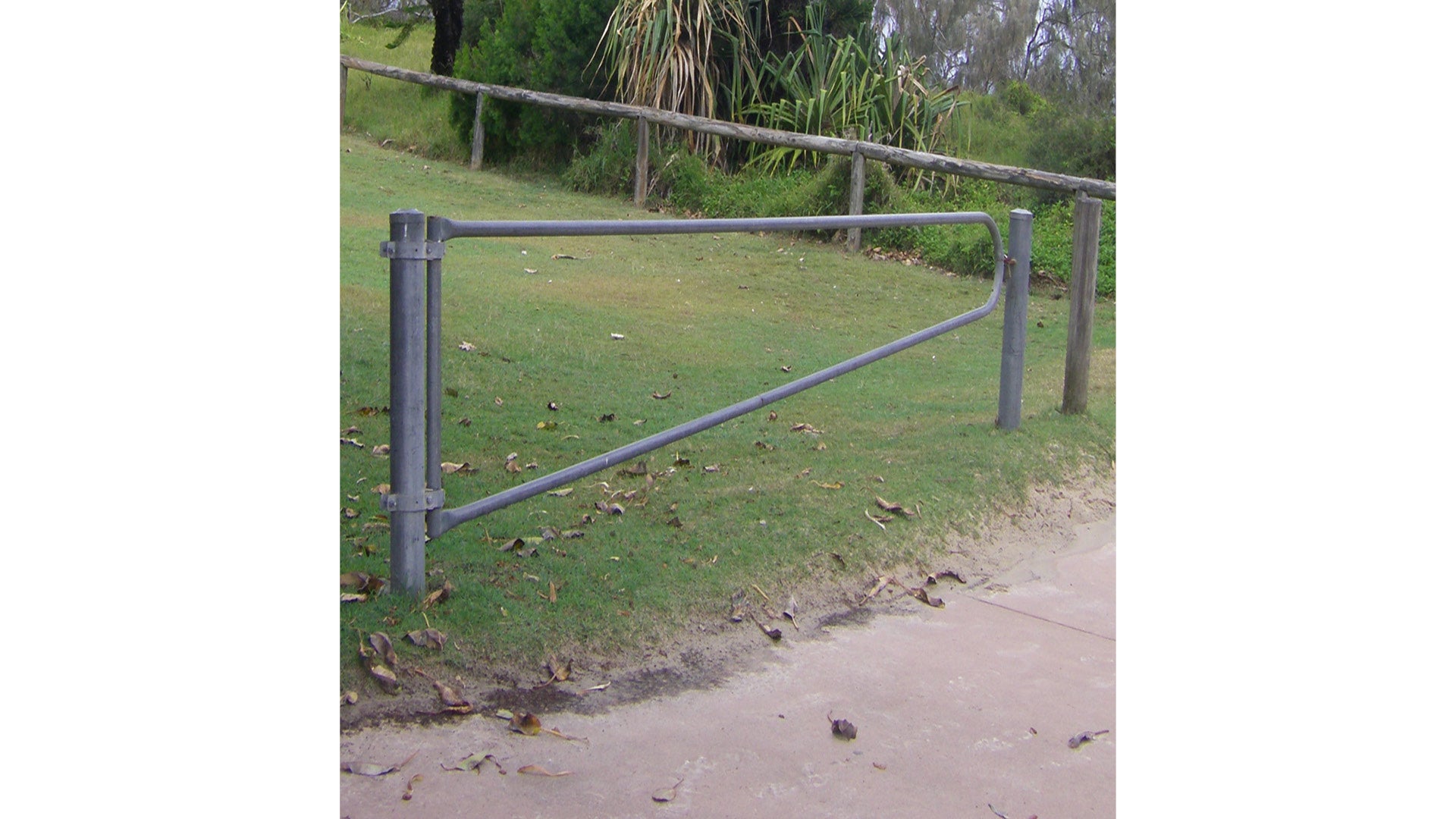

	Vehicle gate - standard CHS - galvanised post and pipe FG-10	No supplier specified.	Security: standard one lock system (optional double lock system available).

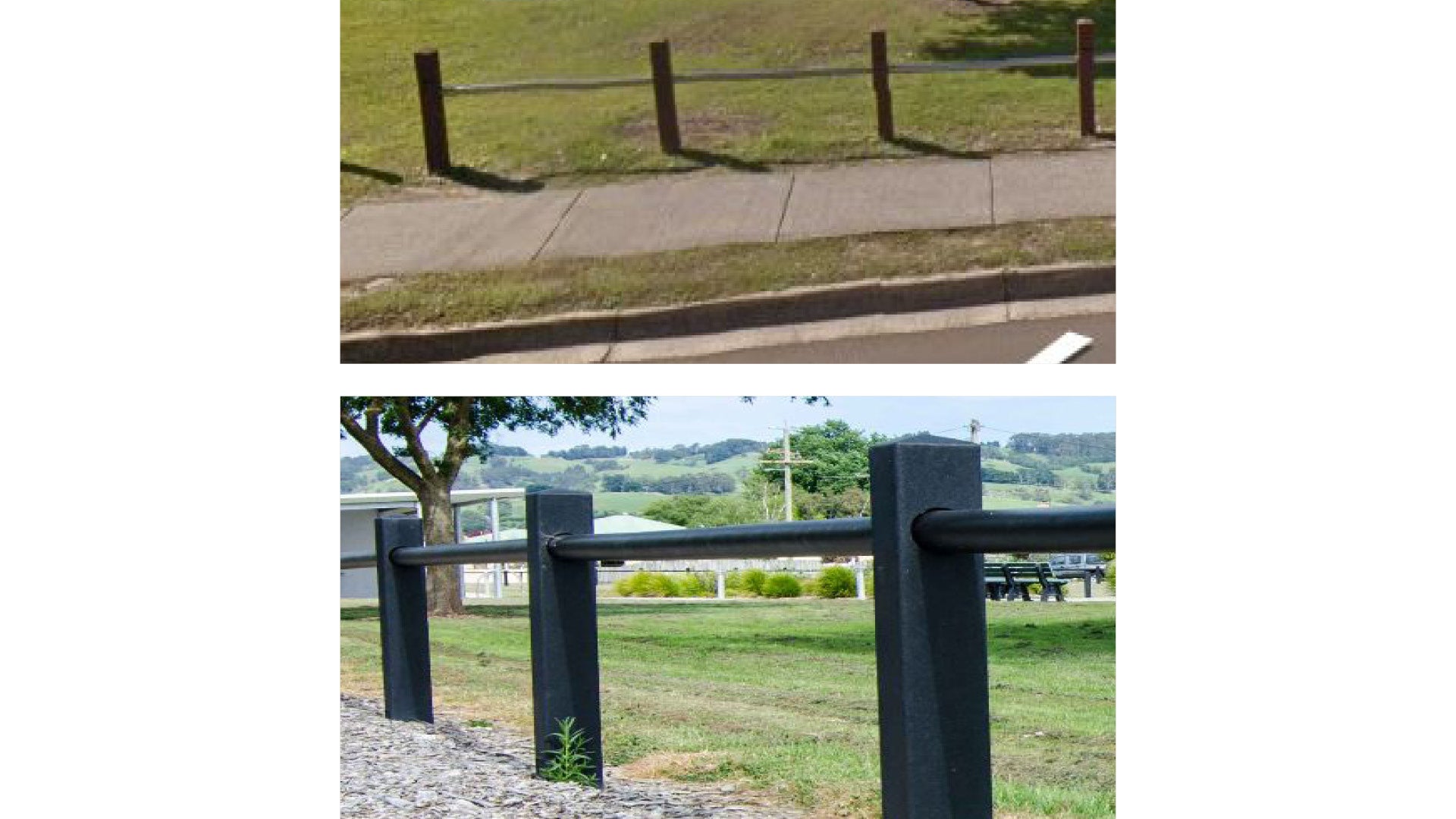

	Post and rail fence (type 1) - rectangular bollard and rail FG-11 (type 1)	No supplier specified.	Various material/installation options are available, see drawings for further guidance.
	Post and rail fence (type 2) - square bollard and round rail FG-11 (type 2)	No supplier specified.	Various material/installation options are available, see drawings for further guidance. Optional modifications: reflector.

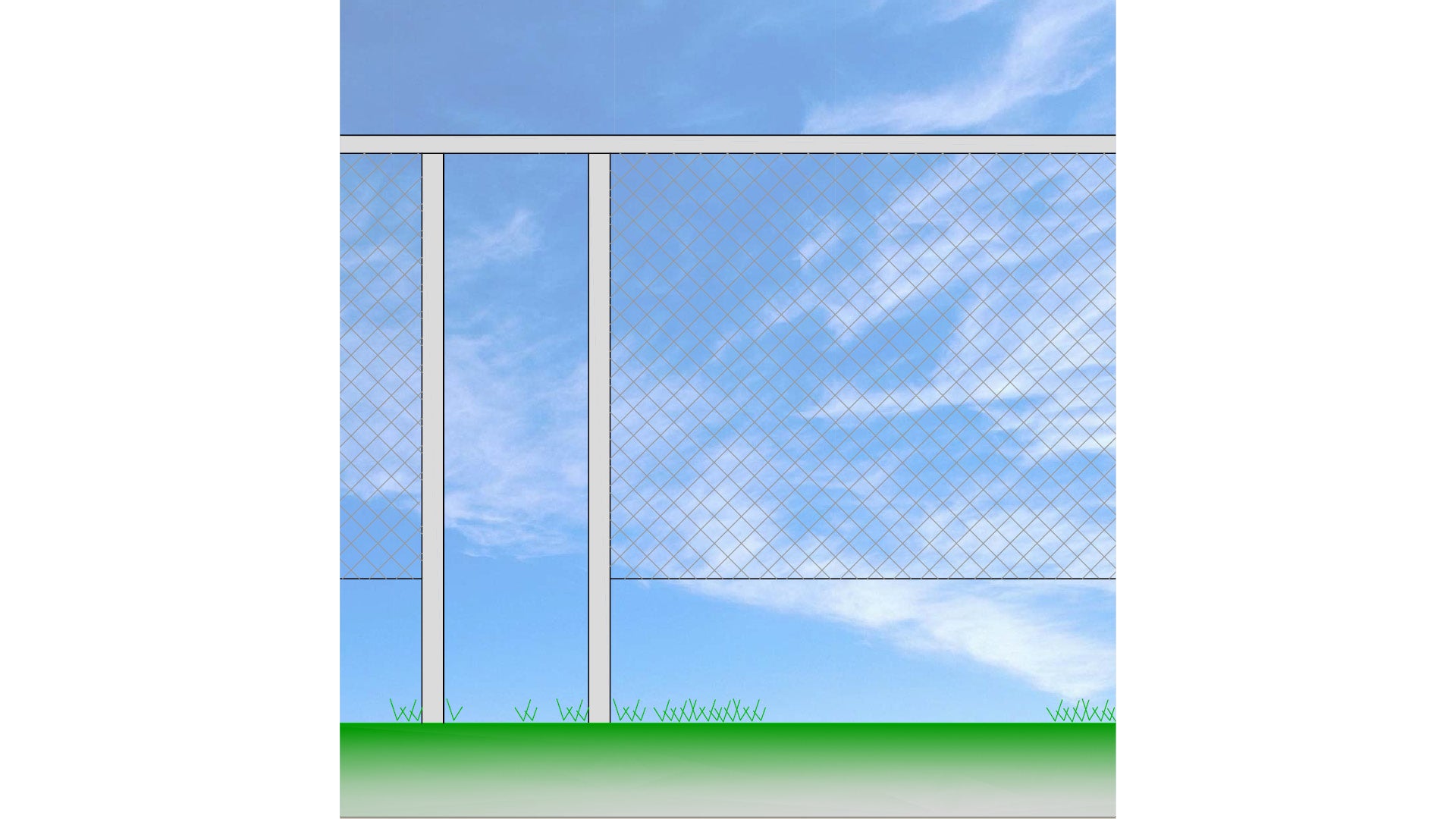

	Dog off leash fence - galvanised post and chain mesh wire FG-12 (set)	No supplier specified.

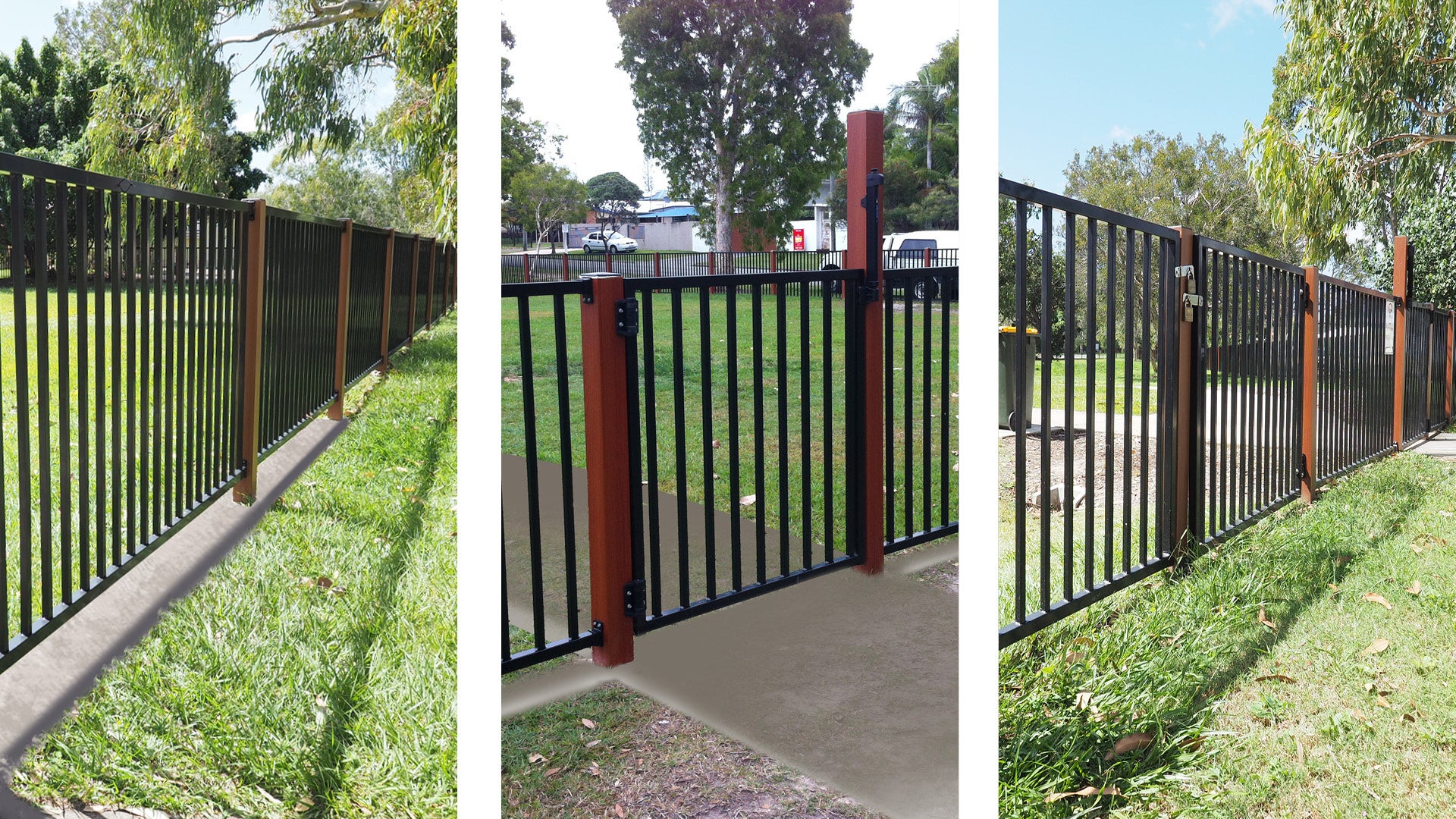

	Playground fence and gates FG-13 (set)	No supplier specified.

Luminance contrast: Note product images depict samples of products only. Luminance contrast requirements refer to the product and the background against which it is installed.
